Sawdust dryer with two stoves for biomass briquette

Specifications

1. Low energy consumption
2.High drying efficiency
3. Long life span and less waring parts
4. Environmental freindly

         Sawdust dryer with two stoves for biomass briquette machine



1.Introduction to the working principle:

In the dryer, high speed hot air stream sustain raw material in the suspend state, then the raw material is dried. Since air stream speed is very high, and materials suspending in air stream the heat transfer surface between air and raw material is large, so the heat transfer rate is high.

2. Applicable raw material:

 It is special suitable for drying heat senitive material like sawdust, rick hull, milled wheat straw, milled cotton, corn stalks and so on. it also can be used for drying the grain better.

3. What can our HGJ Hot air dryer do?

The HGJ series dryer has the feature of low cost but high efficiency. it can reduce moisture from 40-45% to 8-12%

4. Fuel for the dryer's furnace: wood waste, coal, waste oil and so on



General introduction

Wood dryer is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks

and so on. The moisture of wet materials is at 2030%. The wood dryer is equipped one fuel boiler, inlet,

steel pipe, exhaust blower (fan), cyclone. Wet materials are input into the hopper. The fuel boiler generates

hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly.

And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are expelled out by the exhaust blower (fan). This wood dryer reduces the moisture to 8-12% with the advantages of lower cost consumption and high efficiency.



                                 Main technical parameter of HGJ series hot air dryer

Model	Power (kw)	Capacity (kg/h)	Net/Gross Weight (kg)	Raw materials Diameter(mm)	Packing Dimension(m³)
HGJ-I	4	300-400	1000/1100	<1mm & < 5mm	6.36
HGJ-II	7.5+0.75+0.75	500-600	2040/2260	<1mm & < 5mm	12.41
HGJ-III	11+0.75+075+5	700-800	2850/3080	<1mm & < 5mm	13.59
HGJ-IV	15+0.75+0.75	1000-1200	2850/3080	<1mm & < 5mm	13.59



WE CLAIM TO DO

a.The pre-sale service.

1).Our engineer can design the suitable production line according to customer's actual demand for the customer to configure the corresponding models of the machine;



2).According to customer's specific needs customization of the product;



3).The company maybe represented by engineering and technical persommel to the user site planning sites,design the best production line.



b.After market service:

1).For the customer free of charge training of technical personel;



2).According to the purchase contract,our factory will send one engineer and technical free of charge to guide installation;



3).One year round supply of the machine wearing parts;



4).To gather customer feedback and timely implementation of programs developed to address the customer practical pro.



                                                                 Photos of the flash dryer

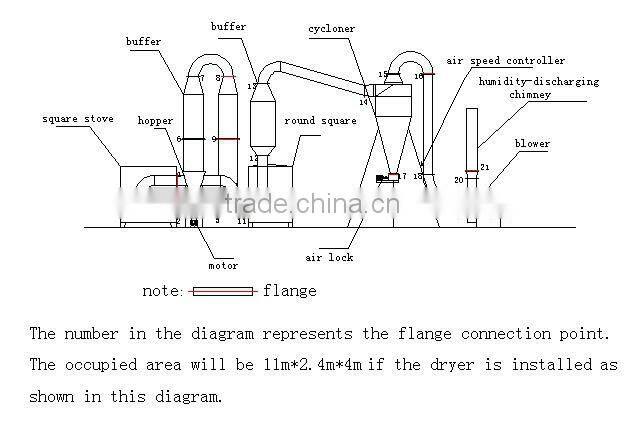

                                                Use a draft design to introduce our flash dryer

                                                   BUFFERS AND PIPES

                        We use light fire-proof brick to protect the furnace



                                                The outlook of the furnace
