Specifications

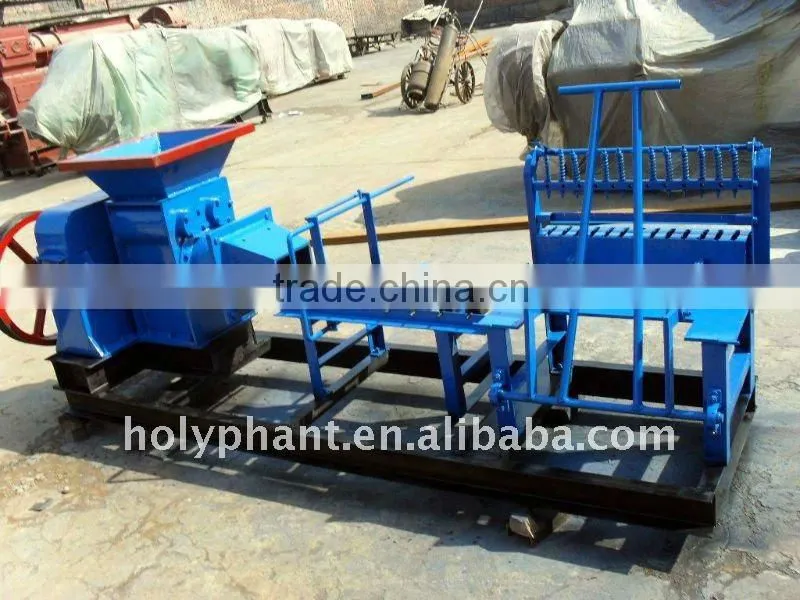

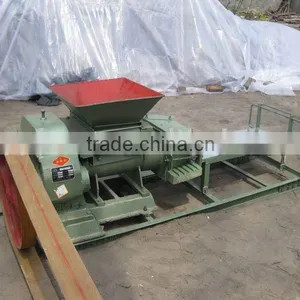

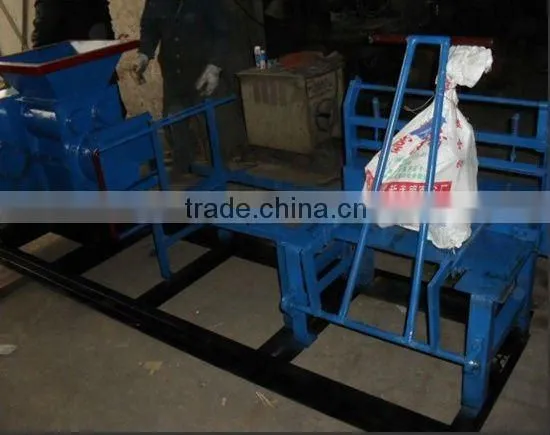

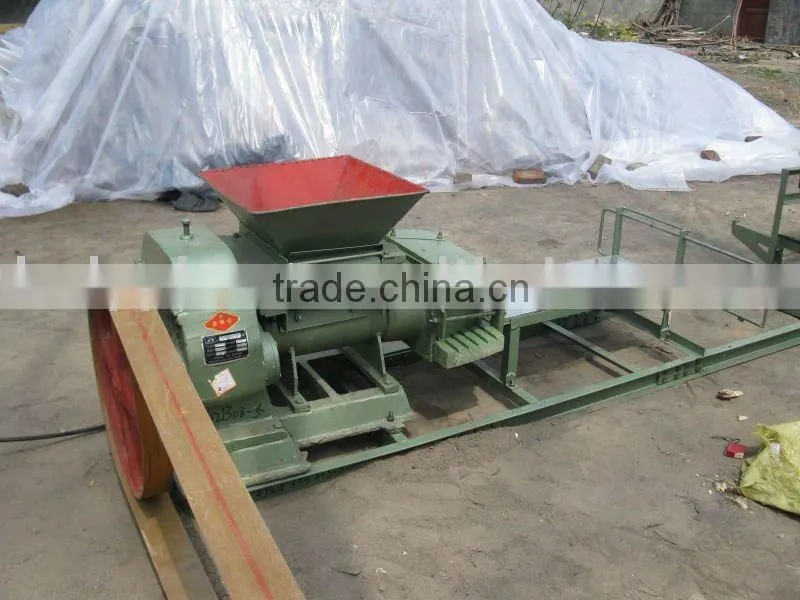

brick making machineryThe SD-220 Brick Machine is suitable for making the clay brick abode for house.
brick making machinery
--Specifications:
| Item | SD-220 |
| capacity | 35000-40000pcs/8hrs |
| power | 11Kw motor, 22HP diesel engine |
| weight | 508kg |
| shaft speed | 65rmp |
| water of adobe | 20% |
| brick size | 240x115x53mm,brick mould customized |
| packing way | in fumigated wooden box |
| packing size | 1030x910x925 and 1080x990x850mm |
--Introduction
SD220 machine is the fourth generation product of our factory which is designed after our technicians combine kinds of brick machines’ merits through many years’ production experience. It is the best one of the small type brick machine for the synthetic economic benefit at present. It is welded with profiled bar and all of its gears are made of 45# steel and alloy steel and through processing of Lathe for gear and quencher and cementite quencher, then put into gear boxes. The running part of the machine is driven by bearing running and has airproof equipment for mud and water seal. The machine has the features of handsome shape, reasonable structure, good performance, high quality, smallness, lightness, high efficiency, durability, and convenience, and the user can use it everywhere and do not need a special place. The machine can be widely used and it is fit for clay, black earthly, mixed earth and so on. The machine is the best choice of brick equipment for small factories and professional individuals.
--Structure and Working Theory

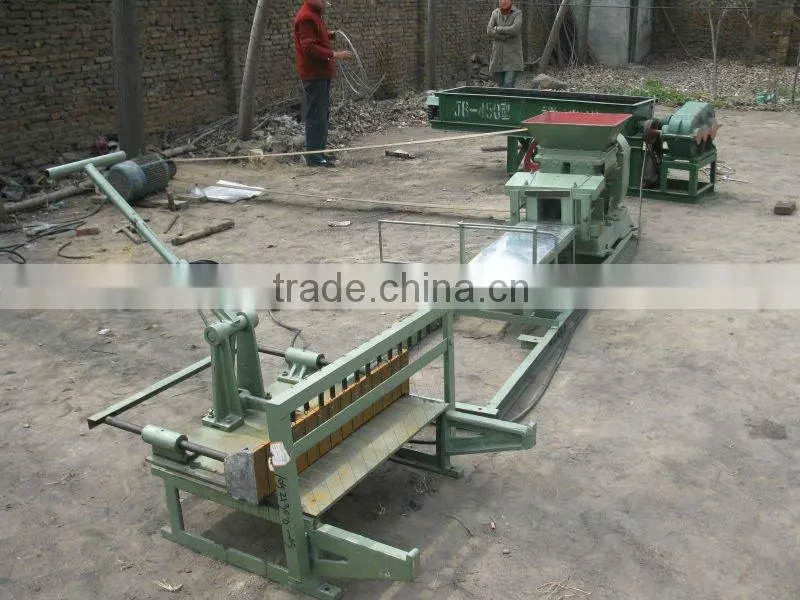

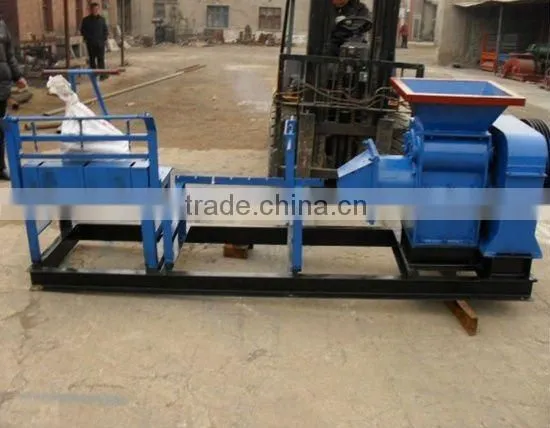

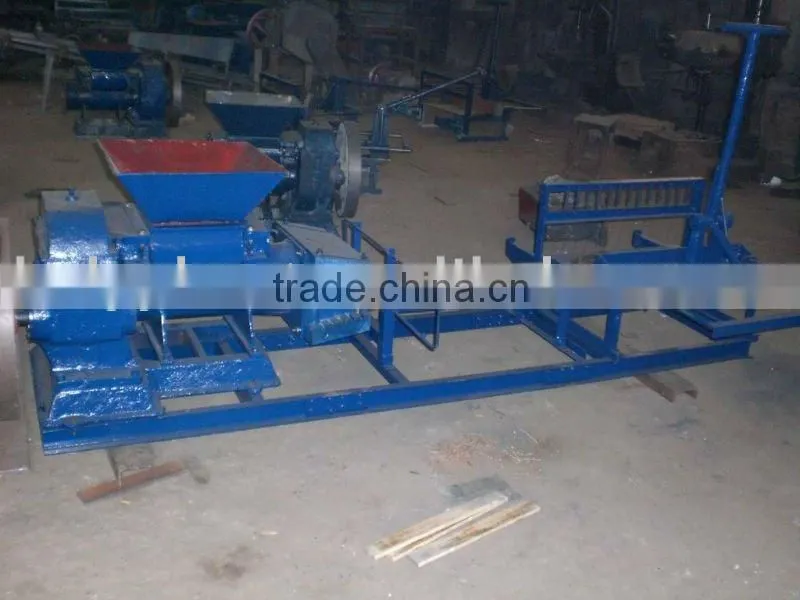

The whole machine is composed of Mud-mixer, Bar-cutter, Brick-cutting Lathe. The power enters from the head of the axis after the flat pulley and gears slow their speed. The earth with moderate humidity will be put into the hopper from the upper part of Mud-mixer, and fall into the Mud vat after it is crushed down, then it is puddled by Screw in the vat and put forwards. At last it is squeezed into standard mud bar from the entrance. Under the drive of the Screw, the mud bar enters into Bar-cutter and goes ahead on its board. When it comes to the proper place, the pull pole of the Bar-cutter is pulled to cut mud bar. When the cut mud bar comes to the right place of the brick-cutter, the control pole of the brick-cutter is held down to make the mud bar move on the slab ; so the mud bar is cut into standard brick, and then come to Brick-receiver.
Date of shipment: in one month after the receipt of payment.

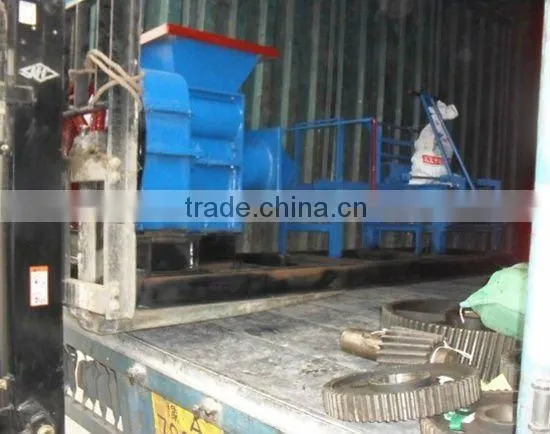

Packing: wooden box.
For customers to visit the factory.
For customers according to the recommended corresponding brick machine and its ancillary equipment actual situation, filling orders, delivery, delivery; export equipment free of charge, customs declaration, port clearance inspection.
To customer needs and recommend other relevant auxiliary equipment, such as power distribution equipment, kiln car, truck, motor etc..
The equipment warranty for one year.
Free to answer for the difficult problems in the production of customer
HeNan Double Elephants machinery Co.,Ltd . is a professional manufacturer. Our
products are sold to many countries and areas in the world. Our company is specialized
in the production of oil pressing machines under the supervision of Ministry of Machinery Industry of the
State.
Our company has passed ISO9001 certification. Our products sell well in nearly 40
countries and regions in the world. They enjoy a high reputation both at home and
abroad.
