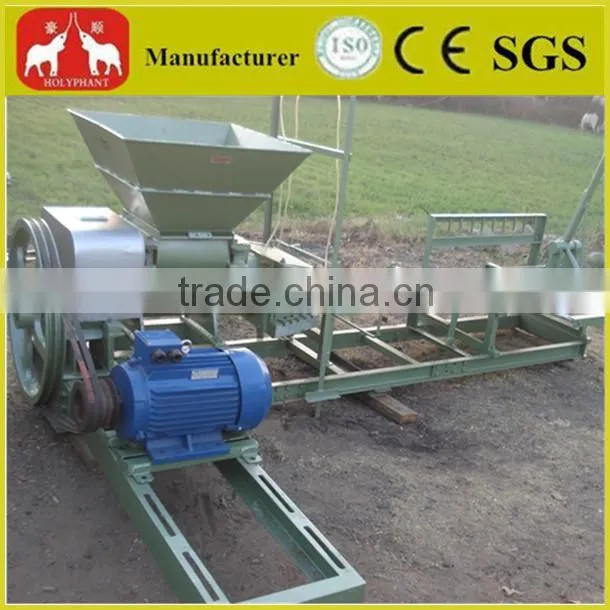

Small manual brick making machine/clay brick machine
The clay brick machine is suitable for making the brick adobe for the buildings.
Range of materials :clay, blackland , mixingland .
Constructure for clay brick machine
Normally the line is consist of The sand-stone grinder and clay brick machine .
Mixer/Mud pie maker, mud pie cutter and Mud Adobe slicer machine , water pump.
Clay stone grinder is used to crush the big clay and small sand-stone into pieces .
The data for clay brick machine
Matching Power: diesel engine or electrical motor .
Pls inform us for choosing motor or diesel engine when playing the order .
Rearding to the other capacity, we also could manufacture it according to the requires of the user .
The sand stone Crusher and belt conveyor could be saved if the local clay is softy without hard sand stone.
Usement for clay brick machine
The clay after crushing sand stone is conveyed into the adobe maker, with suitable moisture go into the hopper of Mixer, then mixed by the screw with water, then is extracted one mud pie shape . The mud pie shape go forward to go into the cutter, it is cut for size confirmed. The clay shape cut go into slicer machine and is cut the final clay adobe one by one . The adobe is take out by the worker for drying in the sun for preparing of baking .
Water pump supply for lubricating water in the process in the line .
The operation is easyly mastered .
Installment for clay brick machine
This line of adobe maker is installed on the false work (wooden/iron broad), also could be installed on the concrete foundation.
The size of area:1200*800*12000 mm for brick machine ..
Packing wooden box for brick machine :1000*1000*750mm and 1000*800*600
Sand stone grinder 1050*850*980mm
Note: 30 sets/20’Container for clay adobe maker/Clay Brick maker.
The sand stone Crusher is single installed, also belt cover.

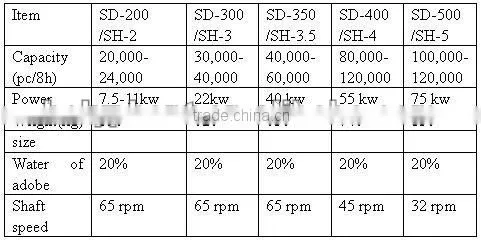

The data for clay brick machine

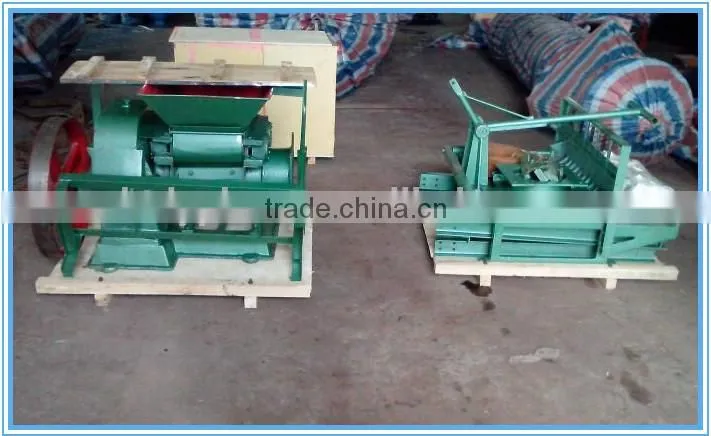

Machine pics for brick making machine/clay brick machine
