Specifications
1.Thermal graphene film with PET2.High thermal conductivity
3.Factory direct price

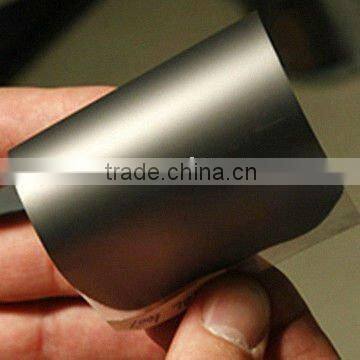

High thermal conductivity Graphite Sheets with PET membrane
Applications:
1.Cellular phone,DVC,DSC,PC and peripherals,pickup
2.Semiconductor manufacturing equipment
(Sputtering,Dry etching,Steppers)
3.Optical communications equipment
Key properties:
1.Excellent thermal conductivity:600 to 1900 W/m.k
(2 to 4 times as high as copper,3 to 6 time as high as aluminum)
2.Light weight: Specific gravity:0.85 to 2.17 g/cm3
(1/4 to 1/10 of copper,1/1.3 to 1/3 of aluminum in density)
3.Flexible and easy to be cut or trimmed(withstands repeated bending)
Description
The 0.025mm thermal graphene film is a thermal interface material which is very thin, synthetically made, has high thermal conductivity, and is made from a higly oriented graphene polymer film. It is ideal for providing thermal management/heat-sinking in limited spaces or to provide supplemental heat-sinking in addition to conventional means. This material is flexible and can be cut into customizable shapes.
Physical properties:
|
Model Parameter |
GSH-12 |
GSH-17 |
GSH-25 |
GSH-70 |
GSH-100 |
||
Thickness (mm) |
0.012±0.005 |
0.017±0.005 |
0.025±0.005 |
0.07±0.01 |
0.1±0.01 |
||
Thermal conductivity W/m.k |
X.Y Direction |
1800 to 1900 |
1700 to 1800 |
1500 to 1600 |
700 to 900 |
600 to 800 |
|
Z Direction |
15 |
15 |
15 |
15 |
15 |
||
Thermal diffusivity (cm2/s) |
9 to 10 |
9 to 10 |
9 to 10 |
9 to 10 |
9 to 10 |
||
Specific gravity (g/cm3) |
2.17 |
2.13 |
2.1 |
1.08 |
0.85 |
||
Specific heat (50°C)(J/gk) |
0.85 |
0.85 |
0.85 |
0.85 |
0.85 |
||
Thermal resistance(°C) |
400 |
400 |
400 |
400 |
400 |
||
Extensional strength (Mpa) |
X.Y Direction |
45 |
39 |
28 |
20 |
19.2 |
|
Z Direction |
0.1 |
0.1 |
0.4 |
0.4 |
0.65 |
||
Bending test (Times) (R5/180°) |
>10,000 |
>10,000 |
>10,000 |
>10,000 |
>10,000 |
||
Electrical conductivity (S/cm) |
20000 |
20000 |
20000 |
96000 |
96000 |
||
Configurations available: Specific size could be provided according to your requirements.
