Specifications
Thermal Graphite for CPU1.High thermal conductivity
2.Thin graphite sheet
3.Industry direct price
4.Natural graphite

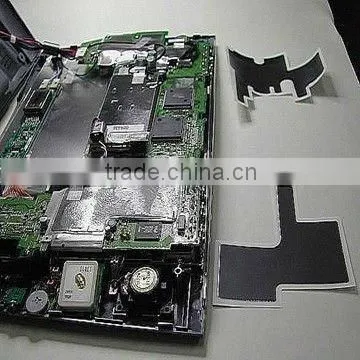

Thermal Graphite for CPU
Thermal Graphite is a kind of totally new thermal & radiating material, heat conducting evenly along two directions, shielding with heat and component while improving the performance of the consumer electronic products.
Key property
1.Ultra-high thermal conductive performance / easy to operate
2.Low thermal resistance
3.Light weight
Applications
IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment;
Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone
Physical properties
Test item |
Test method |
Unit |
GSM Test value |
GSB Test value |
GS+PET Test value |
Color |
Visual |
|
Black |
Black |
Black |
Material |
|
|
Natural graphite |
Natural graphite |
Natural graphite |
Thickness |
ASTM D374 |
Mm |
0.1 to 1.0 |
0.2 to 1.5 |
0.2 to 1.5 |
Specific Gravity |
ASTM D792 |
g/cm3 |
1.5 |
0.9 to 2.0 |
1.5 to 1.8 |
Continuous Use Temp |
EN344 |
°C |
-40 to +400 |
-40 to +400 |
-40 to +400 |
Tensile Strength |
ASTM F-152 |
kpa |
715 |
715 |
715 |
Volume Resistivity |
ASTM D257 |
Ω/CM |
3.0*1013 |
3.0*1013 |
3.0*1013 |
Hardness |
ASTM D2240 |
Shore A |
80 |
80 |
>80 |
Flame Rating |
UL 94 |
|
V-0 |
V-0 |
V-0 |
|
Conductivity (vertical direction) |
ASTM D5470 |
w/m-k |
20 |
15 |
5 |
|
Conductivity (horizontal direction) |
ASTM D5470 |
w/m-k |
300 to 500 |
300 to 500 |
300 to 500 |
Configurations available: Specific size could be provided according to your requirements.
