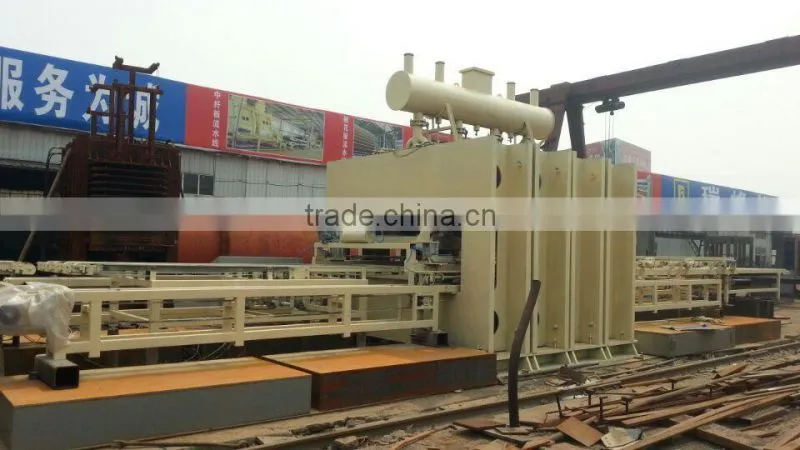

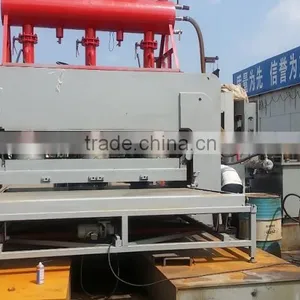

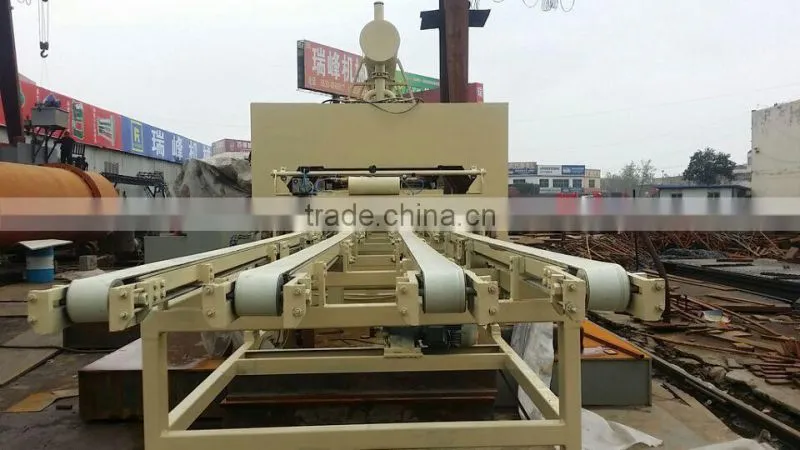

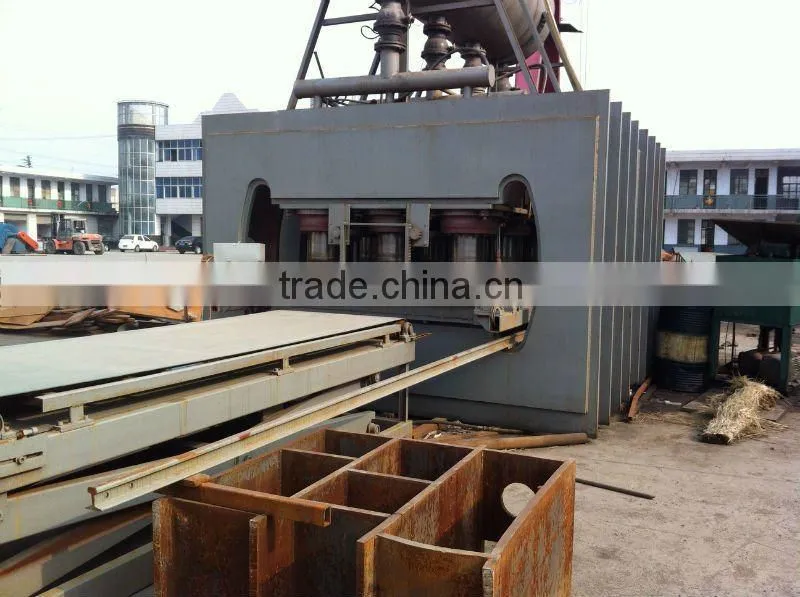

short cycle laminating hot press/laminat hot press machine
- 2 Unit / Units per Month
- qingdao
- T/T Credit Card PayPal
-
Drain Pipe Application culvert pipe making machine
-
Centrifugal spinning Concrete Pipe Machine
-
Suspension Roller concrete pipe making machine in Indonesia
-
Horizontal suspension roller concrete pipe making machine
-
Prestressed Concrete Pipe Manufacturing Plant in Kenya
-
customized cement culvert pipe machine
Product Details
| Condition: | New | Application: | laminated board | Automatic Grade: | Semi-Automatic |
| Production Capacity: | 400 sheet one day | Place of Origin: | Shandong, China | Brand Name: | ruifeng |
| Model Number: | new | Voltage: | 380V | Power(W): | 17.5kw |
| Dimension(L*W*H): | 1220*2440/1830*2750mm | Weight: | 30T | Features: | Easy Operation |
| Certification: | CE;ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Linyi RUIFENG machinery manufacturing CO.,LTD . was founded in 1993 , is one of the largest wood-based panel machinery manufacturing in china .
The melamine both side hot press is our main product.
It have advanved technology and reasonable price to meet your requirement.
Specifications below:

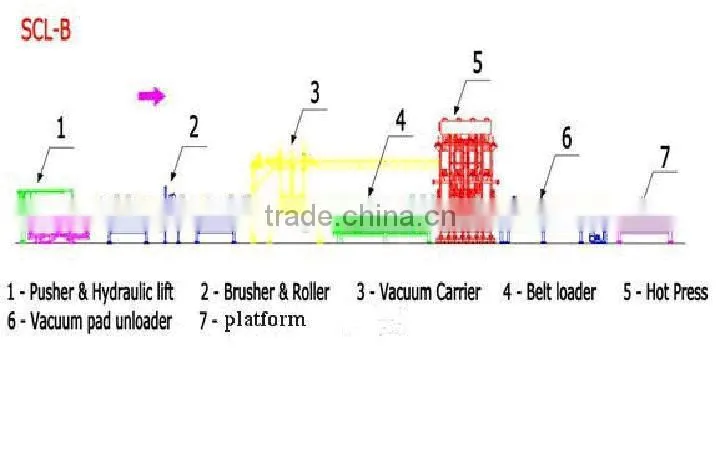

1830*2750mm Short Cycle Lamination Production Line Specifications | ||
NO. | ITEM | SPECIFICATION |
1 | Model | RF6x12SCLP1500A |
2 | Total pressure (KN) | 1500T |
3 | Specific pressure (kg/cm2) | 33.5kg/cm2 |
4 | Finished product size(mm) | (6~45)×1830mm×2750mm or customization |
5 | Main cylinder | dia.360mm×6pieces |
6. | Lifting cylinder | dia.140mm×2pieces |
7 | Cylinder travel | 300mm |
8 | Hydraulic system pressure | ≤25Mpa |
9 | Hot plate size(mm) | 2000mm×2900mm×140mm, 2000mmx2900mmx100mm |
10 | Daylight opening | 200mm |
12 | Hot pressboard temperature | 180°C.0-320°C adjustable |
14 | Closing time | 5s |
16 | Control mode | Automatic |
17 | Electronic control system | Mitsubishi PLC |
18 | Overall dimension(LxWxH mm) | 34000mmx3500mmx3850mm |
20 | Total power (KW) | 60KW |
For many years,we have produced many hot presses for our customer both home and abroad and have earned good reputation!WELCOME TO CHINA TO HAVE A VISIT!
