Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > Stainless Steel Sanitary Pipe/tube

Stainless Steel Sanitary Pipe/tube

Negotiable MOQ: 1 Metric Ton (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Standard:

ASTM, AISI, GB, JIS, Other, ASTM, AISI, GB, JIS, JIS G3447 ASTM A270 ASME SA270

Place of Origin:

Guangdong, China

Brand Name:

Contact Supplier Request Quote Chat Now

Foshan Zhangyao Stainless Steel Appliances Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Hongkong/Foshan/Guangzhou/Huangpu/Chines Ports

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard ASTM, AISI, GB, JIS, Other, ASTM, AISI, GB, JIS, JIS G3447 ASTM A270 ASME SA270

Place of Origin Guangdong, China

Brand Name ZY

Model Number SS-30029

Type Welded

Steel Grade 300 Series

Application beverage and food industry

Certification ISO

Welding Line Type Spiral Welded

Thickness 0.2-4.0mm

Outer Diameter 1/8"-4"

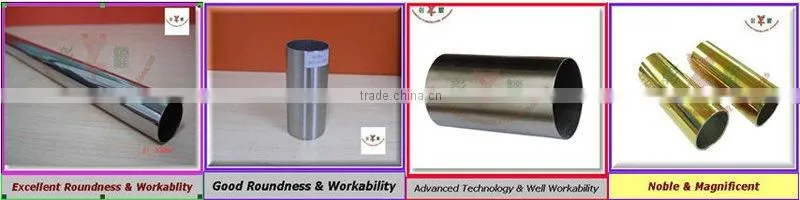

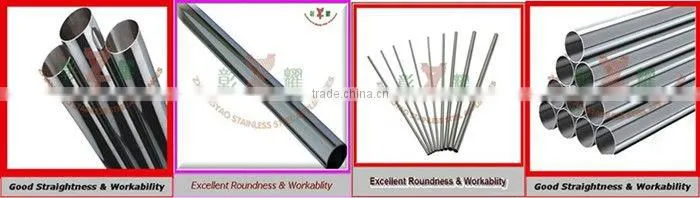

Stainless steel Sanitary tube/pipe

Grade:304 304L 316 316L

Standard: JIS G3447 ASTM A270 ASME SA270

KS D 3585 (JIS G 3447)						ASTM A 270
Out Diameter (mm)	Wall Thickness (mm)	Weight (kg/m)	Tolerance (mm)			Out Diameter (mm)	Tolerance (mm)
Out Diameter (mm)	Wall Thickness (mm)	Weight (kg/m)	Out Diameter	Wall Thickness	Length	Out Diameter (mm)	Out Diameter	Wall Thickness	Length
25.4	1.2	0.723	±0.15	±10%	+10 -0	25.4	+0.05 -0.20	±12.5%	+3.2 -0
31.8	1.2	0.915	±0.16			-	-
38.1	1.2	1.10	±0.19			38.1	+0.05 -0.20
50.8	1.5	1.97	±0.25			50.8	+0.05 -0.28
63.5	2.0	2.47	±0.25			63.5	+0.05 -0.28
76.3	2.0	3.69	±0.25			76.2	+0.08 -0.30
89.1	2.0	4.33	+0.30 -0.40			-	-
101.6	2.6	6.41	+0.35 -0.40			101.6	+0.08 -0.38

Lenght(m): 6 (as required)

Craft: Bright annealing,inside bead removed,inside&outside polish.

Usage: Milk and food industrial,medical(drug) manufacture profession,pure water industry,electronic engineering, fiber , paper making, beer brewing, high purified gas industry, cosmetic industry, etc...

Chemical Composition

Grade	Chemical Composition
Grade	C max	Si max	Mn max	P max	S max	Ni	Cr	Mo	Others
TP 304	0.08	0.75	2	0.04	0.03	8 - 11	18 - 20
TP 304L	0.035	0.75	2	0.04	0.03	8 - 13	18 – 20
TP 316	0.08	0.75	2	0.04	0.03	10 - 14	16 – 18	2 – 3
TP 316L	0.035	0.75	2	0.04	0.03	10 - 15	16 - 18	2 - 3

Mechanical Properties
Grade	Tensile Strength Mpa, (Min)	Yield Strength Mpa, (Min)	%Age Elongation in 50mm gauge length min	Hardness (Max)
Grade	Tensile Strength Mpa, (Min)	Yield Strength Mpa, (Min)	%Age Elongation in 50mm gauge length min	BHN	Rb
304	585	244	56	191	72
304L	585	210	56	191	72
316	615	245	57	197	75
316L	585	215	56	197	75

Standard & Safe Export Package

A: Each tube SLEEVED in a plastic bag, then put in cardbox with strips.(For Cut To Length Small Tubes)
B: Each tube SLEEVED in a plastic bag, then packed in bundles/steel crates.
C: Each tube SLEEVED in a plastic bag, then packed in cardboard tubes,both sides with end cap,lastly packed in steel crate.

Remarks:	1)Lenght(M): 6 (or cut-to-length)
	2)Payment:TT
	3)Price Terms: FOB Foshan/Shenzhen/HuangPu/HK(China Port); CIF/C&F
	4)Delivery :13-45days after deposite,balance before shippment.(based on QTY)
	5)OEM/Buyer Lable accepted.
	6)Mill test certification offered.
Special Remark	Channel/Flat Bar/Angle Bar/Round Bar/Fittings/Accessories enquiries are warmly welcomed.
Visiting Factory	Foshan Zhangyao stainless steel appliance co.,ltd(Taiwan-owned Management Enterprise)
	Registration No.: 440681000130741
	ADD: 3#,A area Ganxian cun industrial district Chencun Town Shunde Area Foshan City Guangdong Province,China.
	MOB:86-13717450302 (Ms Jasmine) Skype:zy.jasmine MSN: the same address as mail
