Specifications
Austenitic Stainless Tubefor handrail,railing
satin/HL/mirror polish
grade:304.304L.316.316L
Taiwan-owned Factory
Modern balcony stainless steel railing designs
Austenitic Stainless Tube 300 Series
From the nature,to the excellent.
| 2013 Fashional Style. Stainless Steel Modular Handrail Tube & Balcony Railings |
| Zhangyao stainless steel (Taiwan owner factory)in Foshan,CN. Top quality control. |
| High passivated SS AISI/ASTM:304,304L,316,316L |
|
Surface finish: Satin,Brush,Bright,Mirror Supper mirror surface finish: #600-#1000 polished,make your railing dazzling. |
Length: 5.8/6 meters,or cutting as required |
|
Stainless Steel Slotted Tube System | ||||

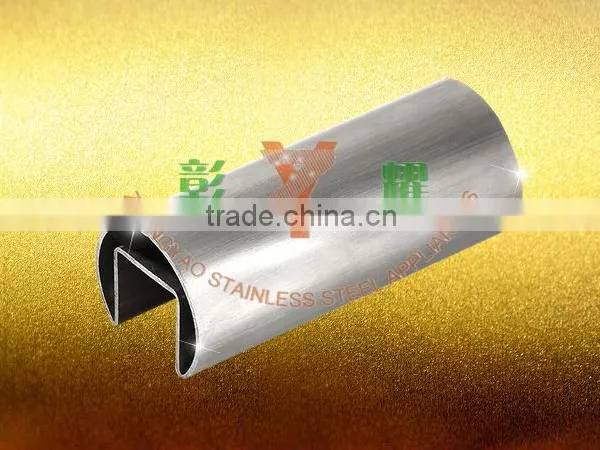

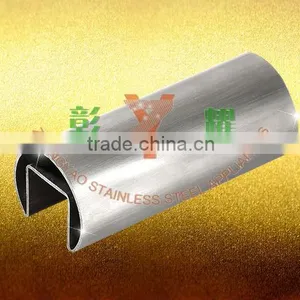

Round single slot tube | ||||
OD (mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
38.1 |
15*15 |
1.0-1.5 |
5-12 |
1.Mill finish (2B)
2.Satin finish:160-320 grit
3.Bright/Gloss finish:400 grit
4.Mirror/Shine polish:600-1000 grit (Your Eyes And Nose could be seen Clearly From The Surface Just like the Mirror) |
42.4 |
24*24 |
1.2-1.5 |
8-20 |
|
48.3 |
27*30 |
1.2-2.0 |
10-24 |
|
50.8 |
15*15 |
1.2-2.0 |
5-13 |
|
63.5 |
20*20 |
1.2-2.0 |
8-18 |
|
76.2 |
25-25 |
1.2-2.0 |
8-22 |
|
Round double slot tube (90°double slot /180°double slot) | ||||
OD(mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
50.8 |
15*15 |
1.2*1.8 |
8-12 |
160-1000 grit |
Oval single slot tube | ||||
|
OD (mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
40*60 |
15*15 |
1.0-2.0 |
5-12 |
1.Mill finish (2B)
2.Satin finish:160-320 grit
3.Bright/Gloss finish:400 grit
4.Mirror/Shine polish:600-1000 grit |
40*80 |
20*20 |
1.2-2.0 |
8-15 |
|
40*80 |
24*24 |
1.2-2.0 |
10-20 |
|
50*100 |
30*30 |
1.2-2.0 |
10-25 |
|
40*110 |
33*26 |
1.2-2.0 |
10-30 |
|

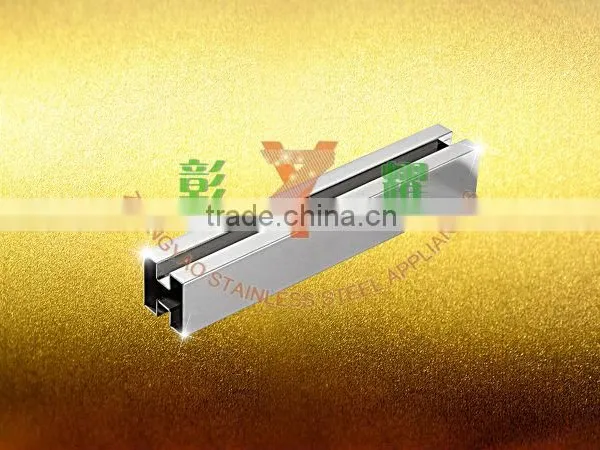

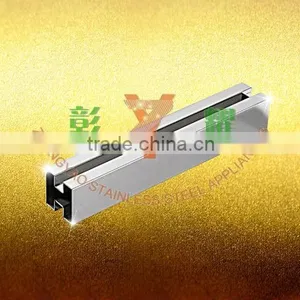

Square & Rectangular single slot tube | ||||
|
OD (mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
30*30 |
15*15 |
1.2-2.0 |
5-12 |
1.Mill finish (2B)
2.Satin finish:160-320 grit
3.Bright/Gloss finish:400 grit
4.Mirror/Shine polish:600-1000 grit
(Your Eyes And Nose could be seen Clearly From The Surface Just like the Mirror)
|
40*40 |
15*15 |
1.2-2.0 |
5-12 |
|
50*50 |
15*15 |
1.2-2.0 |
5-12 |
|
50*50 |
15*30 |
1.2-2.0 |
5-12 |
|
50*50 |
20*30 |
1.2-2.0 |
8-15 |
|
REC | ||||
25*30 |
15*15 |
1.2-2.0 |
5-12 |
|
25*50 |
15*15 |
1.2-2.0 |
5-12 |
|
25*50 |
20*20 |
1.2-2.0 |
8-15 |
|
40*60 |
24*24 |
1.5-2.0 |
10-20 |
|
50*80 |
20*20 |
1.2-2.0 |
8-15 |
|
Square double slot tube (90°double slot /180°double slot) | ||||
OD(mm) |
Slot size(mm) |
Wall thickness(mm) |
Glass thickness range(mm) |
Feature finish |
50*50 |
15*15 |
15-2.0 |
5-12 |
160-1000 grit |
REC(10*50mm) You may need with slotted tube | ||||
SHAPE |
OD(mm) |
Wall thickness(mm) |
Length (mm) |
Feature finish |
Rectangular Hollow Section |
10*50 |
1.2-1.5 |
normal 6000,or cutting as required |
Satin ,Bursh(HL), Mirror |

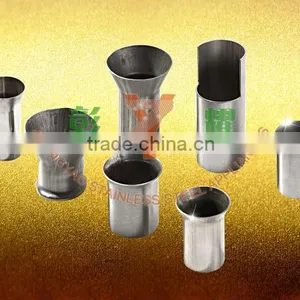

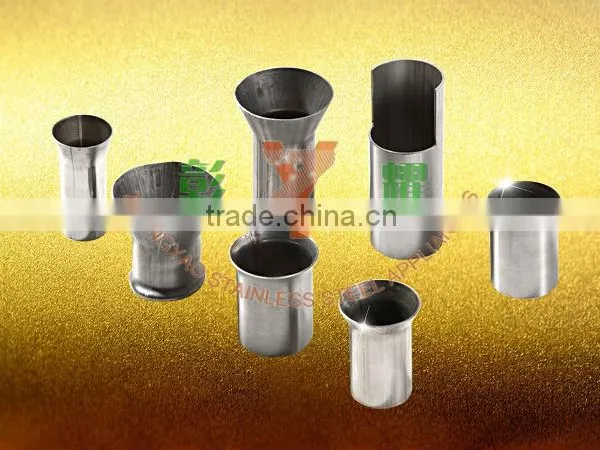

You may need Fittings/Accessories with slot tube for handrail,railings
Other shape of slotted tube & Accessories also be offered,welcome to inquire,friends!
| Standard Export Package | A: Each tube SLEEVED in a plastic bag, then put in cardbox with strips.(For Cut To Length Small Tubes) | ||||||
| B: Each tube SLEEVED in a plastic bag, then packed in bundles/steel crates. | |||||||
| C: Each tube SLEEVED in a plastic bag, then packed in cardboard tubes, both sides with end cap,lastly packed in steel crate. | |||||||
| |||||||
Remarks: |
1)Lenght(M): 6 (or cut-to-length) | ||||||
| 2)Payment:TT | |||||||
| 3)Price Terms: FOB Foshan/HuangPu(China Port); CIF/C&F | |||||||
| 4)Delivery :13-45days after deposite,balance before shippment.(based on QTY) | |||||||
| 5)OEM/Buyer Lable accepted. | |||||||
| 6)Mill test certification offered. | |||||||
| Special Remark | Channel/Flat Bar/Angle Bar/Round Bar/Fittings/Accessories enquiries are warmly welcomed. | ||||||
| Visiting Factory | Foshan Zhangyao stainless steel appliance co.,ltd(Taiwan-owned Management Enterprise) | ||||||
| ADD: 3#,A area Ganxian cun Chencun Town Shunde,Foshan,Guangdong,China. | |||||||
|
MOB:86-18900748031 (Ms Annie) Skype: anne.2009 | |||||||
FAQ:
1.Q:Are you a factory or trading company?
A:We are a Taiwan-owner factory.
2.Q:Where is your factory located?How can I vist there?
A:Our factory is located in Foshan City,Guangdong Province,China,about 1 hours bus ride from Guangzhou.
All our clients,from home or abroad,are warmly welcome to visit us,we will pick you up.
3.Q:Wher is your raw material comes from?
A:Raw material comes only from suppliers who are top-1 class steel in China. Good product is originates
from the accurate control of the quality of the steel.
4.Q:How can I get some samples?
A:We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority.Zhangyao people always attach great importance to quality controlling from the very
beginning to the very end.
Welcome to contact us for more details ,most competitive price for you!
