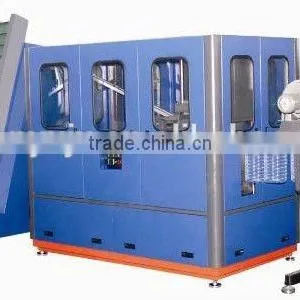

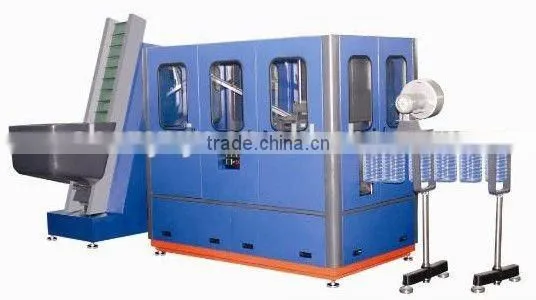

Automatic PET bottle blow molding machine
Automatic bottle blowing machine can blow plastic bottles made of PET, PP, PE, and PC.
It is widely used to produce the carbonated bottle, mineral water bottle, juice bottle,pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle, etc.
Automatic perform input and ready bottle output system.
Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.
Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.
The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.
Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.
Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and ction.
Full automatic pet bottle blow machine
Machine Type |
Unit |
CYA-2 |
CYA-4 |
CYA-6 |
Cav.No. |
Cav. |
2 |
4 |
6 |
Output |
Pcs/Hr |
2000-2500 |
3500-5000 |
5000-6000 |
Max.Container Volume |
L |
2 |
2 |
1.5 |
Max.Neck Diameter |
MM |
38 |
38 |
38 |
Max Contianer Diameter |
MM |
115 |
115 |
105 |
Max. Container Height |
MM |
325 |
325 |
325 |
Heating Power |
KW |
30 |
55 |
72 |
Operating Low Pressure |
Mpa |
0.3-0.8 |
0.3-0.8 |
0.3-0.8 |
Blowing Pressure |
Mpa |
3.8 |
3.8 |
3.8 |
Cooling Temperature |
℃ |
10 |
10 |
10 |
Machine Dimension |
M |
2.9X1.4X2.7 |
3.7X1.55X2.7 |
2.1X4.55X2.7 |
Machine Wight |
KG |
3200 |
4600 |
6500 |
Preform Loader Dimension |
M |
1.5X0.85X2.2 |
1.5X0.85X2.2 |
2.8X2.6X2.7 |
Blow molding machine
Mould
Preform
Bottle
Packing
Workshop and factory
About Factory
15years’ experience in filling line machinery; 9 years gold supplier on .
About Quality
brand-new equipments with latest design and suitable material made,
About After Sale Service
1 year's warranty period and life time technical support.
Note: Please provide us with your required production capacity. It helps to accelerate the business.
