Semi-Automatic PET blow molding machine

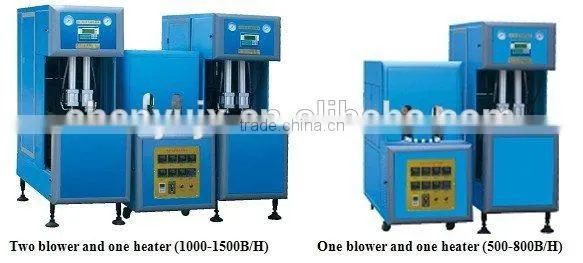

Semi-automatic bottle blowing machine can blow plastic bottles made of PET, PP, PE, and PC. One drying tunnel is matched with two blowers, which is small in size, productivity and energy-saving and fit to blow plastic bottles of various raw material in a big quantity.
It is widely used to produce the carbonated bottle, mineral water bottle, juice bottle,pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle, etc.
* Adopting double crank to adjust mould, heavy locking mould, stable and fast.
* Adopting infrared oven to heat the preform, the preform rotated and heated equally.
* The air system has been divided into two parts: pneumatic action part and bottle blowing part to meet the different requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
*The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
*The machine can be operated in the step-by-step mode and the semi-auto mode.
*The machine is small with low investment, easy and safe for operating
| TYPE |
ITEM |
UNIT |
TECHNICAL DATA |
||
| 2-CAVITY | |||||
| CONTAINER |
Product material |
|
PET/PC/PE |
||
| Container volume |
L |
0.1-2.5(2-cavity 3-6(1-cavity) |
|||
| Theoretical output |
Pcs/hr |
0.1-2.5L:1700 3-6L:800 |
|||
| Preform length |
mm |
360 |
|||
| Preform inner diameter |
mm |
φ180 |
|||
| MOULDING |
Max.mould plate dimension(L×W) |
mm |
420×500 |
||
| Max.mould thickness |
mm |
250 |
|||
| Clamping force |
KN |
150 |
|||
| Mould opening stroke |
mm |
240 |
|||
| AIR COMPRESSOR |
Air compressor |
M 3 /Mpa kw |
>1.0/3.0 11 |
||
| Air pressure for blowing |
M 3 /Mpa |
30 |
|||
| MAIN MACHINE ELECTRICITY |
Power |
KW |
6 |
||
| Voltage/Frequency |
KW V/HZ |
380-240-110/50-60(3-phase) |
|||
| MACHINE SIZE AND WEIGHT |
Main machine(L×W×H) |
M |
1.55×0.62×2.00 |
||
| Main machine weight |
T |
0.6 |
|||
| Heater (L×W×H) |
M |
1.80×0.5×1.60 |
|||
| Heater weight |
T |
0.3 |
|||
| High pressure compressor(L×W×H) |
M |
1.90×0.75×1.50 |
|||
| Air filters |
Kg |
10×2pcs |
|||
| SAFTY |
Auto-emergency alarm |
SAFETY INTER-LOCKING DEVICE |
|||
Blowing mould machine
Mould
Preform
Bottle
Packing
Workshop and factory
About Factory
15years’ experience in filling line machinery; 9 years gold supplier on .
About Quality
brand-new equipments with latest design and suitable material made,
About After Sale Service
1 year's warranty period and life time technical support.
Note: Please provide us with your required production capacity. It helps to accelerate the business.
