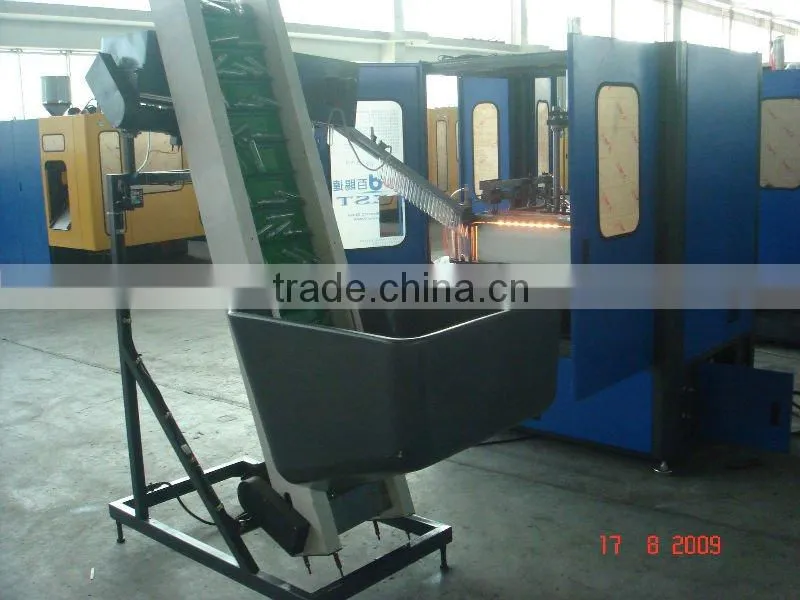

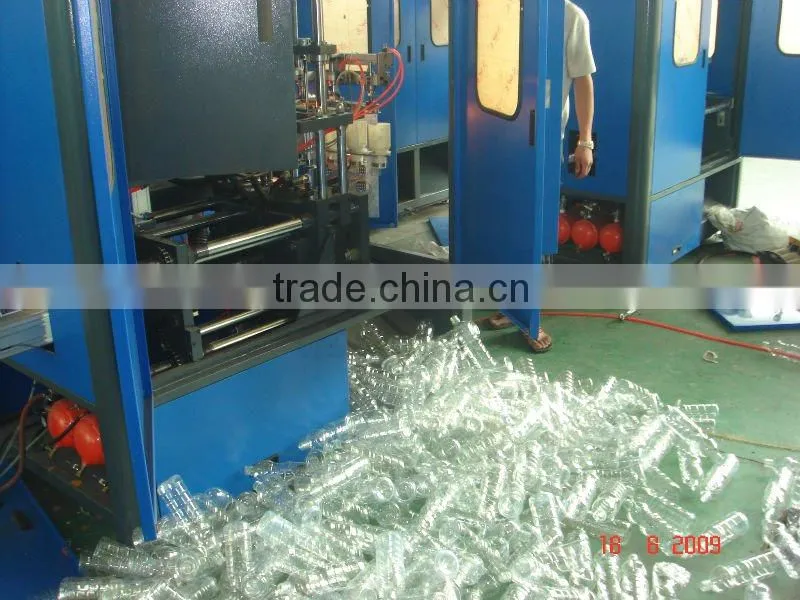

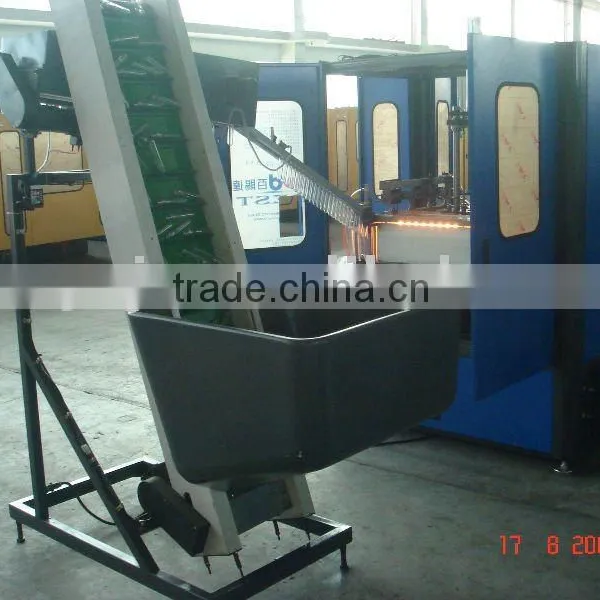

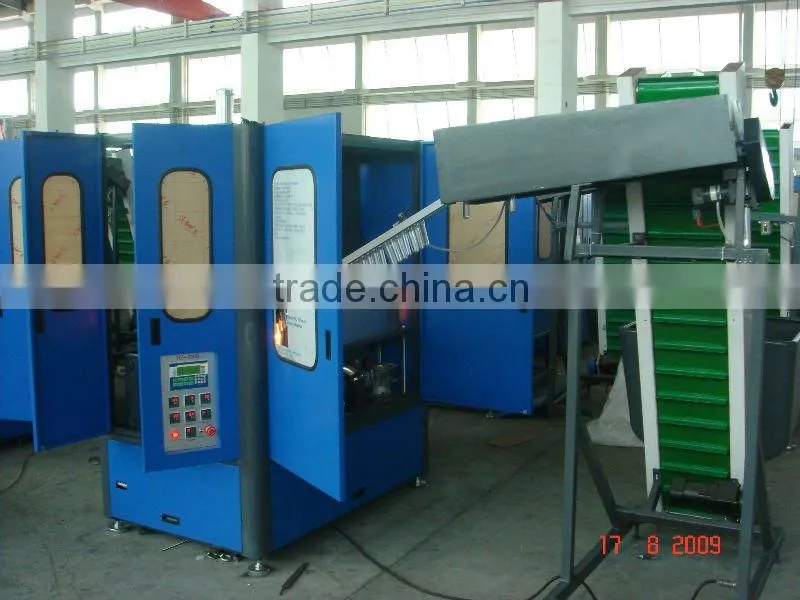

Automatic Lineal PET Blow Moulding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Shrink Film Wrapping MachineUS$ 1,000 - 300,000MOQ: 1 Set -
Automatic PET Blow MachineUS$ 10,000 - 60,000MOQ: 1 Set
-
PET Automatic Blow Moulding Machine PriceUS$ 15,000 - 60,000MOQ: 1 Set
-
Plastic Bottle Labeling MachineUS$ 1,000 - 50,000MOQ: 1 Set
-
Bottle Filling Capping and Labeling MachineUS$ 1,000 - 50,000MOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PET
Blow Moulding Type
Stretch Blow Moulding
Automatic
Yes
Place of Origin
Jiangsu, China
Brand Name
Chenyu
Model Number
CY-880B
Specifications

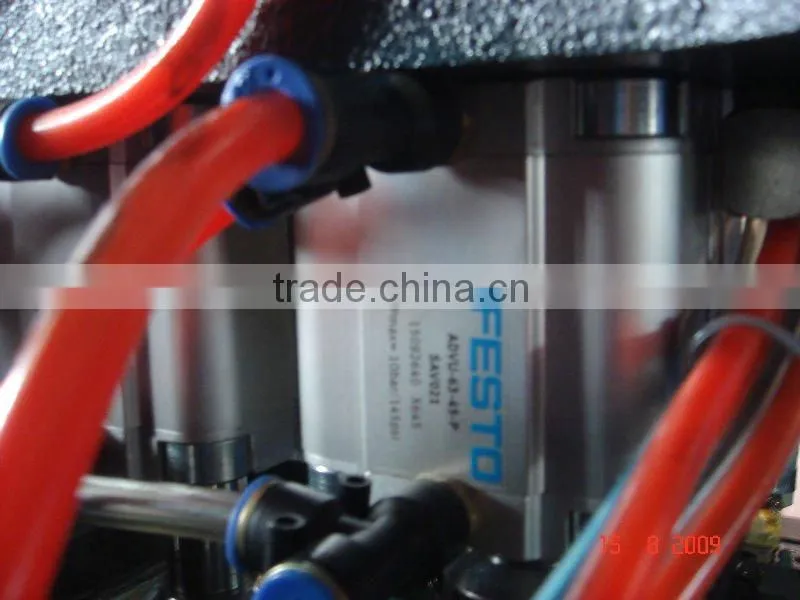

blow moulding machine*FESTO pneumatic parts
*Mittisubushi PLC
*OMRON electrical parts
*Fully-auto
Automatic stretch PET blowing machine
CY-880B automatic stretch blow moulding machine has been improved on the base of advanced technology, designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely. It is fit to blow carbonated beverage bottles, mineral water bottles, cosmetics bottles and hot-filling bottles.
Main Technical Parameters:
Main Technical Parameters:
TYPE |
ITEM |
UNIT |
TECH. DATA |
CY-880B | |||
Main |
Max. Volume of Product |
L |
5(2-cavity) 12(1-cavity) |
Theoretical Output |
pcs/h |
300-1200 |
|
Neck Size of Product |
mm |
15-120 |
|
Useful Area of Mould |
mm |
350*450 |
|
Mould Thickness |
mm |
120-320 |
|
Mould Stroke |
mm |
80-250 |
|
Clamping Force |
KN |
120 |
|
Stretching Stroke |
mm |
420 |
|
Working Pressure |
Mpa |
<=1.0 |
|
Blowing Air Pressure |
Mpa |
<=4.0 |
|
Power of Main Blower |
KW |
0.2 |
|
Weight of Main Blower |
Kg |
900 |
|
Measurement of Main Blower |
mm |
1700*580*1820 |
|
Preheater |
Power of Preheater |
KW |
12 |
Weight of Preheater |
Kg |
450 |
|
Measurement of Preheater |
mm |
1450*700*1150 |
