Bottle Making Machine
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PET
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bottle Blow Molding MachineUS$ 10,000 - 50,000MOQ: 1 Set -
Bottle Blow Molding MachineUS$ 15,000 - 50,000MOQ: 1 Set
-
Fully-Automatic Rotary Style Blowing MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
Semi-Automatic PET Blowing MachineNegotiableMOQ: 1 Set
-
CY-B Semi-Automatic PET Blow Moulding MachineNegotiableMOQ: 1 Set
Condition
New
Application
Bottle
Plastic Processed
PET
Blow Moulding Type
Stretch Blow Moulding
Automatic
Yes
Place of Origin
Jiangsu, China
Brand Name
Chenyu
Model Number
SV-C-5
Voltage
220/380V
Certification
CE/SGS/ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Bottle making Machine Description

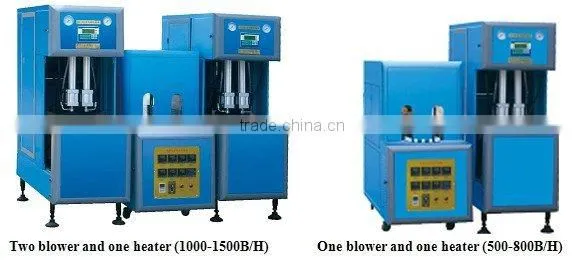

SV-C-5 Semi-automatic bottle blowing machine can blow plastic bottles made of PET, PP, PE, and PC. One drying tunnel is matched with two blowers, which is small in size, productive and energy-saving and fit to blow plastic bottles of various raw material in a big quantity.
| TYPE |
ITEM |
UNIT |
TECHNICAL DATA |
||
| 2-CAVITY | |||||
| CONTAINER |
Product material |
|
PET/PC/PE |
||
| Container volume |
L |
0.1-2.5(2-cavity 3-6(1-cavity) |
|||
| Theoretical output |
Pcs/hr |
0.1-2.5L:1700 3-6L:800 |
|||
| Preform length |
mm |
360 |
|||
| Preform inner diameter |
mm |
φ180 |
|||
| MOULDING |
Max.mould plate dimension(L×W) |
mm |
420×500 |
||
| Max.mould thickness |
mm |
250 |
|||
| Clamping force |
KN |
150 |
|||
| Mould opening stroke |
mm |
240 |
|||
| AIR COMPRESSOR |
Air compressor |
M 3 /Mpa kw |
≥1.0/3.0 11 |
||
| Air pressure for blowing |
M 3 /Mpa |
30 |
|||
| MAIN MACHINE ELECTRICITY |
Power |
KW |
6 |
||
| Voltage/Frequency |
KW V/HZ |
380-240-110/50-60(3-phase) |
|||
| MACHINE SIZE AND WEIGHT |
Main machine(L×W×H) |
M |
1.55×0.62×2.00 |
||
| Main machine weight |
T |
0.6 |
|||
| Heater (L×W×H) |
M |
1.80×0.5×1.60 |
|||
| Heater weight |
T |
0.3 |
|||
| High pressure compressor(L×W×H) |
M |
1.90×0.75×1.50 |
|||
| Air filters |
Kg |
10×2pcs |
|||
| SAFTY |
Auto-emergency alarm |
SAFETY INTER-LOCKING DEVICE |
|||
