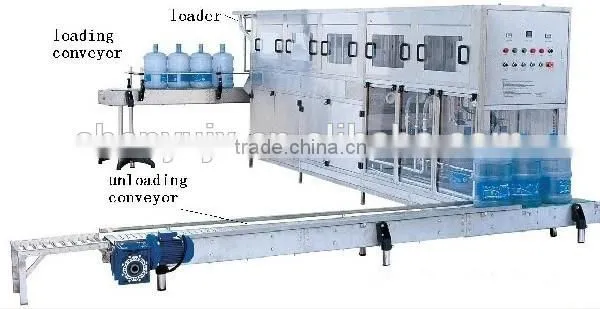

washer/filler/capper monoblock
Main parameter:
1) Model: QGF-300
2) Capacity: 300 barrels per hour
3) Washing heads: lye, 1 pcs *3 row
Sterilizing liquid, 3 pcs*3 row
Rinsing water, 1 pcs*3 row
4) suitable barrel: ¢ 270*485mm
5) washing barrel water pressure: 0.2-0.25 Mpa
6) air source pressure: 0.4-0.6 Mpa
7) power consumption: 6.2kw
8) overall size: 3500*1300*1650mm
9) weight: 850 kg
Electrical system:
PLC: OMRON
Contactor: Taiwan SHIHLIN
Pump: Chinese famous brand
Principal characters:
1) Adopting turn-over type transmission structure (with the bung downward), the inner barrel is washed by disinfectants, clear water, sterile water.
2) All the parts contacting the water and other liquid is made of stainless steel, whose surface is polished, easy to clean.
3) The openable windows in front and back wall make it convenient for operator to watch, examine, fix and clean.
4) Special design of spray head makes the spraying well-distributed, good for cleaning with kinds of cleansing liquid.
5) Adopting pressure filling, it fills quickly and the liquid level is steadily controlled. All the sealing elements are kept with food sanitation standard.
6) The capper adopts pressing type of capping, high production capacity and no damage to caps.
7) The whole machine adopts PLC and frequency control, working stably and easy for operation.
About Factory
15 years’ experience in filling line machinery; 12 years gold supplier on .
About Quality
Brand-new equipments with latest design and suitable material made,
About After Sale Service
12 months' warranty period and life time technical support.
