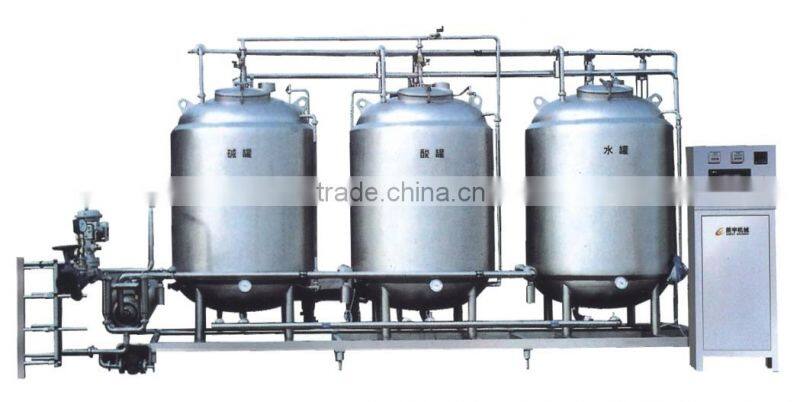

CIP system
Usage
The CIP equipment is uses to clean material pipes and containers at site in strades,such as milk products,juice,beverage and etc.
A centrifugal pump is used in CIP to convey cleansing liquid into material pipe and equipment to force the cleansing liquid to circulate to make cleaning without taking apart pipes or equipment.Using the susten,the equipment avall-ability can be imprived and intensity of labor lessened
Main Technical Paramenters
working pressure |
Mpa normal pressure in tank,in steampipe 0.3-0.7Mpa |
working temperature |
Inacid and alkaline tank ,water pipe,steam pipe 60-138°C |
material name |
2%acid and alkaline liquid tank,2%nitric acid |
centrifugal pump |
10T/h |
maximal centrifugal pressure head |
35m |
motor power |
2.2kw |
whole volume |
acid and alkaline tank |
Overall Size(L×W×H) |
3.0×1.4×2.0 |
