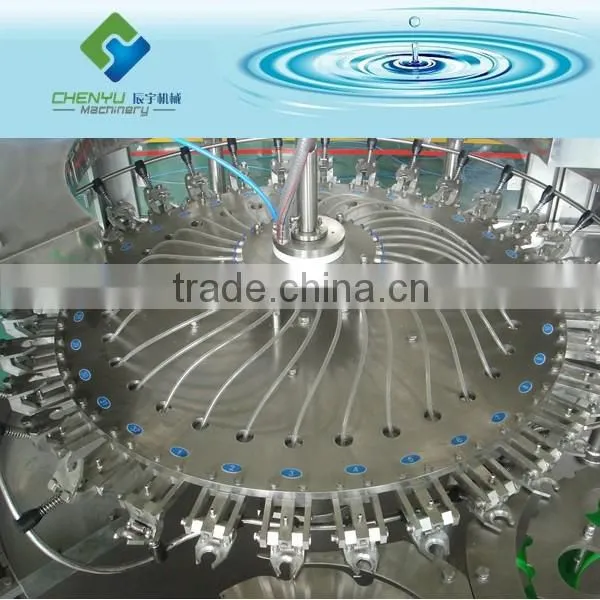

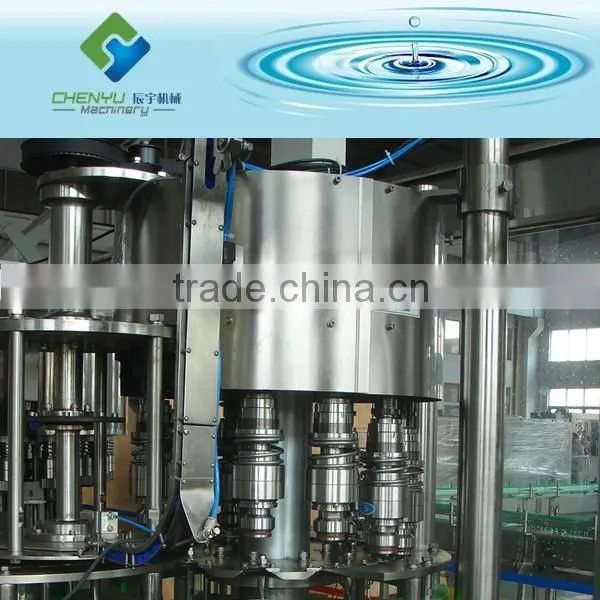

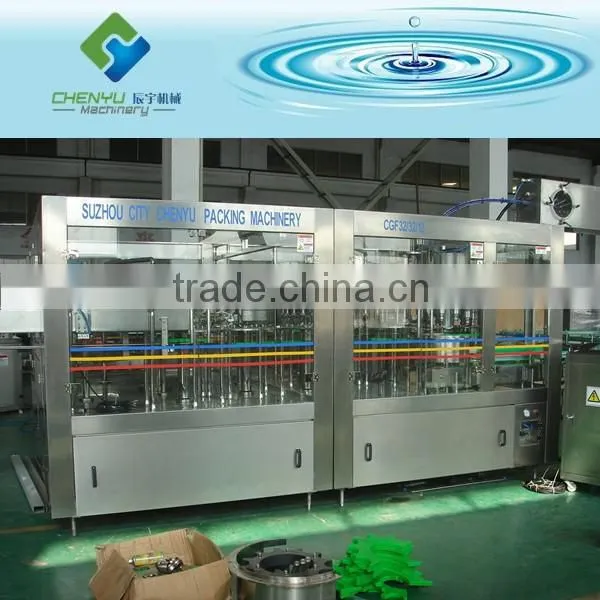

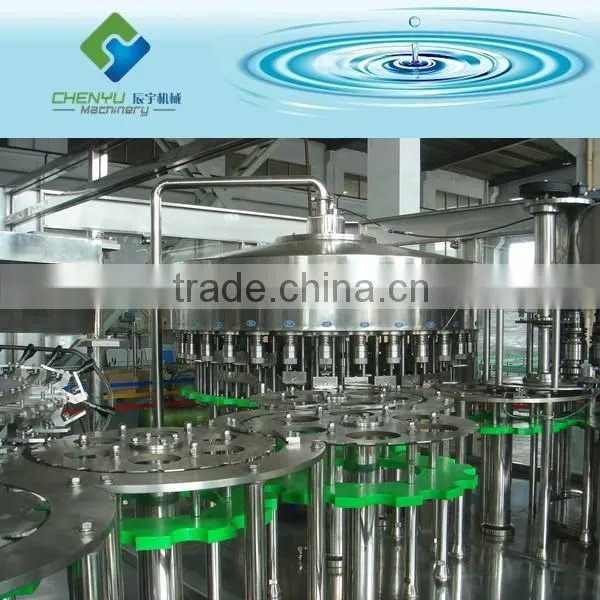

Water Filling Machine 3 in 1 monoblock
Usage
The series equipment is used in filling pure water, mineral water and other drink which does not contain any gas in PET bottles. On one machine, it can carry out washing, filling, capping. The machine adopts filling in normal temperature and normal pressure. The special filling valve makes the filling speed fast and the filling liquid level control correct. The machine adopts frequency control and PLC control. The operation and maintenance are convenient. It is suitable for thinner PET bottles.
Main Technical Specifications
Model: |
CGF16/12/6 |
CGF18/18/6 |
CGF24/24/8 |
CGF32/32/12 |
CGF40/40/12 |
CGF48/48/12 |
Production Capacity:500ml(B/h) |
4000 |
6000 |
10000 |
14000 |
17000 |
20000 |
Suitable Bottle Standard:(mm) |
150-300 |
150-340 |
150-340 |
150-340 |
150-340 |
150-340 |
Suitable Cap Standard:(mm) |
φ50-φ110 |
|||||
Filling Pressure:(Mpa) |
0.2-0.3 |
|||||
Filling Model: |
by Gavity |
|||||
Installed Capacity:(L) |
3.13 |
3.84 |
3.84 |
5.6 |
6.3 |
7.3 |
Filling Temperature: |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Room Temperature |
Overall SizeL×W×H(mm) |
2400×1670 |
2470×1970 |
2865×2170 |
3700×2570 |
3800×2950 |
4500×3400 |
Total Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
6000 |
7000 |
About Factory
15 years’ experience in filling line machinery; 12 years gold supplier on .
About Quality
Brand-new equipments with latest design and suitable material made,
About After Sale Service
One year warranty period and life time technical support.
