Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine

Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine photo-1
Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine photo-2
Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine photo-3
Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine photo-4
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Driven Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Driven Type Electric
Automatic Grade Automatic
Voltage 220V/380V
Power 3.84
Packaging Type Bottles
Packaging Material Plastic
Place of Origin Jiangsu, China
Brand Name Chenyu
Model Number CCGF16/16/12/6
Dimension(L*W*H) By capacity
Weight By capacity
Certification CE,ISO,SGS, ISO9001;CE
After-sales Service Provided Engineers available to service machinery overseas

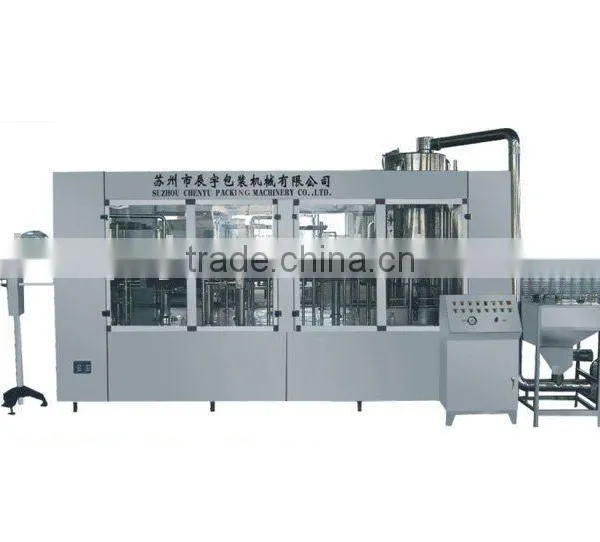

Pure water filling machine



Usage:
The series equipment is used in filling pure water, mineral water and other drink which does not contain any gas in PET bottles. On one machine, it can carry out sterilizing, washing, filling, capping. The machine adopts filling in normal temperature and normal pressure. The special filling valve makes the filling speed fast and the filling liquid level control correct. The machine adopts frequency control and PLC control. The operation and maintenance are convenient. It is suitable for thinner PET bottles.

Main Technical Parameters

Model:

CCGF16-16-12-6

CCGF18-18-18-6

CCGF24-24-24-8

Production Capacity:500ml

4000

6000

10000

Suitable Bottle Standard:(mm)

150-300

150-340

150-340

Suitable Cap Standard:(mm)

φ50-φ110

Filling Pressure:(Mpa)

0.2-0.3

Filling Model:

4.1

Installed Capacity:(kw)

3.8

3.84

5.6

Overall Size L×W×H(mm)

3050×2000×2350

3170×2070×2350

4070×2470×2350

Total Weight:(kg)

3000

4000

5000



Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine



Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine



Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine



Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine







Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine



Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine

Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine



Hot Sale Sterilizing/Washiing/Filling/Capping 4 In 1 Monoblock Pure Water Filling Machine



About Factory

15 years’ experience in filling line machinery; 12 years gold supplier on .

About Quality

Brand-new equipments with latest design and suitable material made,

About After Sale Service

One year warranty period and life time technical support.



Note: Please tell us your production capacity.
