Bottle Unscrambler/unscrambling machine
- 10 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | CHENYU | Model Number: | PLP-10000 |
Product Description

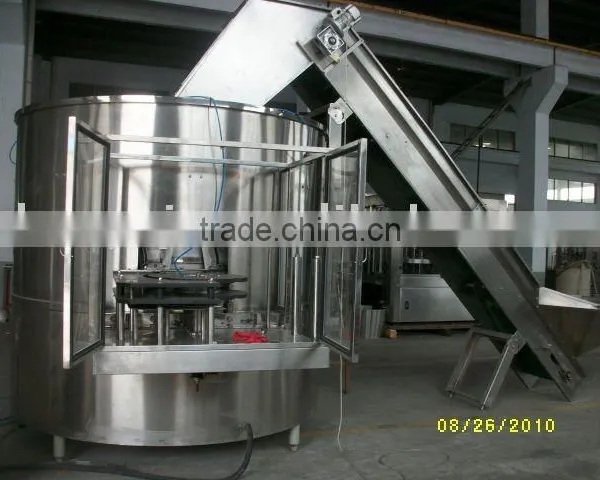

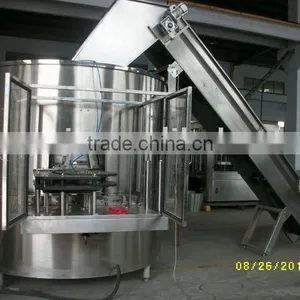

Bottle unscrambler machine
to arrange bottles in order and convey to washing/filling/capping machine by air conveyor.
Main features:
1. Outer canister, rotary canister and contact parts with bottles are made of S/S SUS304. Frames are welded with carbon steel of fine quality, with anti-rust treated and sprayed of surface.
2. Body of canister is sealed, and kept with slight positive pressure to prevent dust.
Top of canister is equipped with removable cover, easy to maintain and clean.
3. Equipped with defective bottle rejection device. No need stop to clean up in running condition. The testing switch in the machine will alarm and stop the machine. Operators can dredge it according to signals.
4. Specially designed bottle tank can apply to bottles of dimensions at small difference, no need to change tank to save investment. For example, if you want to change 600ml with 500ml with same diameter, only 30mm shorter, you need not to change the tank, just do some adjustment.
5. The midst of canister is equipped with exit for mold replacing, easy for dismantlement and clean up of bottle tank.
6. The under of canister is equipped with maintenance exit, easy for operators to contact the bottom of machine.
7. Equipped with manual operators.
8. Prefect safeguard device.
9. Bottle-jam inspector is equipped on feed-out star wheels to safeguard machine.
10. Equipped with oil filling port to lubricate the gears, bearings, and cams.
Main technical parameter:
Model | PLP-12 |
Number of working positions | 12 |
Capacity | 0~200bottles/minute (maximum) PET 500ml |
Pressure of air supply | 0.85MPa |
Air consumption | 1.8M3/min. |
Applicable bottles | diameter of 50~90mm, height of 150~310mm |
Power of main motor | 3.5 KW |
Total Power | 6KW |
Dimension | 2200mm×2340mm (diameter*height) |
Machine weight | 2300Kg |
About Factory
15 years’ experience in filling line machinery; 12 years gold supplier on
About Quality
Brand-new equipment with latest design and suitable material made.
About After Sale Service
ONE year warranty period and life time technical support.
