Specifications
Crown cap sealing machine1. Technology from Taiwan
2. Glass wine bottle
3. Output 2000-20000bph
Crown cap sealing machine
Crown cap sealing machine --Technical Data
Model |
Number of washing filling and capping |
Production capacity |
Applicable bottle specifications (mm) |
Power(kw) |
Dimension(mm) |
CGF16/16/6 |
16, 16, 5 |
2000-4000 |
0.2L-2L D=50-108 mm |
3.58 |
2100x1400x2500 |
CGF18/18/6 |
18, 18, 6 |
5000-7000 |
4.68 |
2460x1720x2650 |
|
CGF24/24/8 |
24, 24, 8 |
8000-12000 |
6.58 |
3100x2100x2650 |
|
CGF32/32/8 |
32, 32, 8 |
12000-15000 |
9.68 |
3500x2500x2650 |
|
CGF40/40/10 |
40, 40, 10 |
15000-18000 |
9.68 |
4600x1800x2650 |
|
CGF50/50/12 |
50, 50, 12 |
20000-24000 |
10.8 |
5200x4500x3400 |
|
CGF60/60/15 |
60, 60, 15 |
25000-28000 |
11.28 |
6500x4500x3400 |
Crown cap sealing machine --Equipments detail

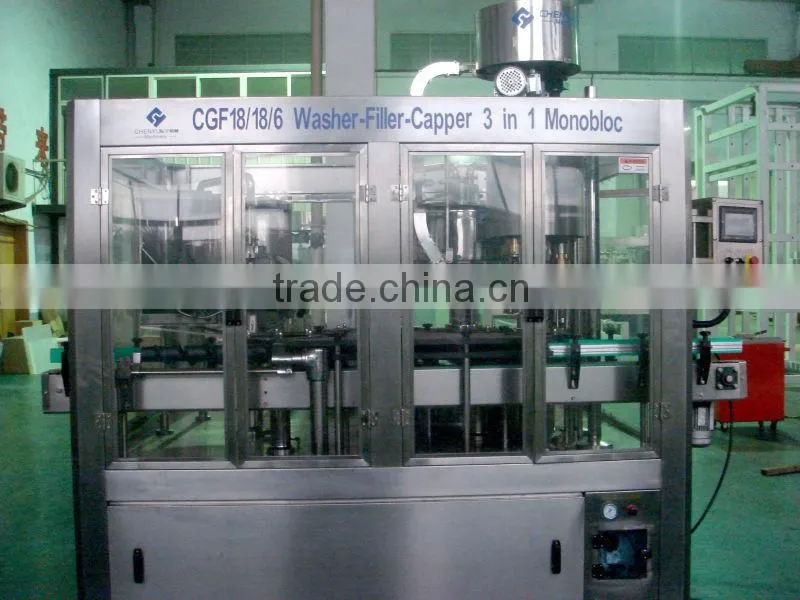

Rinser filler capper monoblock machine
1.This machine works harmoniously with belt-conveyor , It holds the bottles by feeding screw, thus, reducing the possibility of bottles falling over during conveying process.
2.This machine is used to fill wine, juice into glass bottle and with metal crown capping function.
3.This machine integrated three function: 1. Rinse the empty glass bottle, 2. filling the rinsed bottles, 3. capping the filled bottles

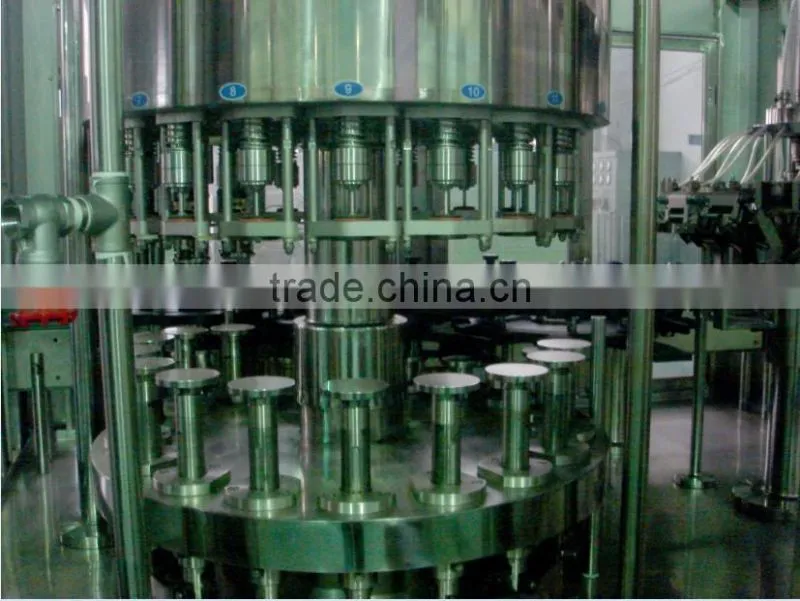

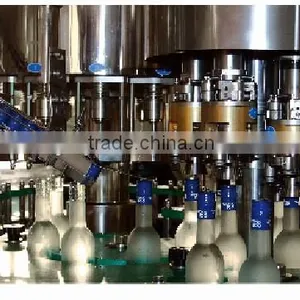

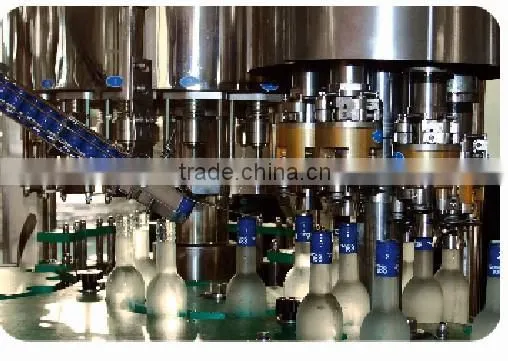

Crown cap sealing machine--Real product photo show

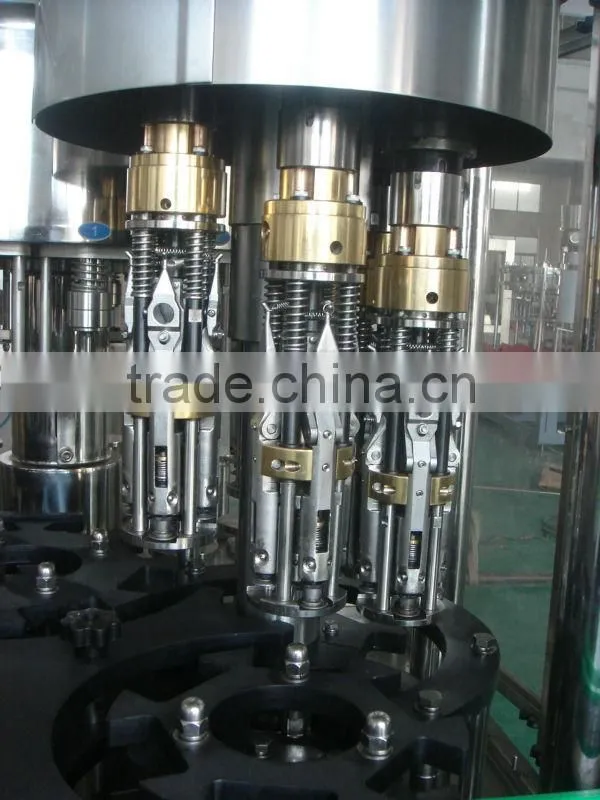

Special design of crown capper

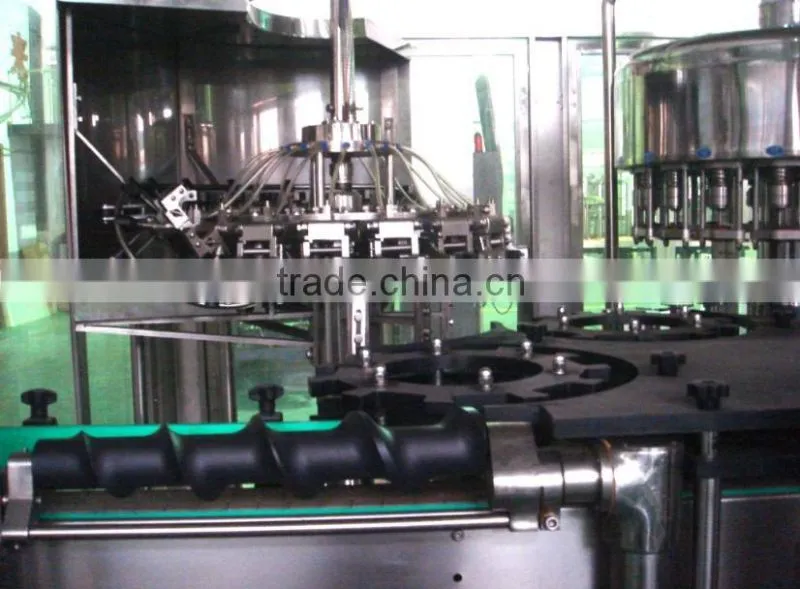

Rinser part
Filler part with bottle bottom cork base
