Vodka Brandy Filling Line in Glass/pet Bottle

Vodka Brandy Filling Line in Glass/pet Bottle photo-1
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Other, Food, Beverage, Machinery & Hardware
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai seaport
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Other, Food, Beverage, Machinery & Hardware
Packaging Type Bottles
Packaging Material Glass
Automatic Grade Automatic
Driven Type Hydraulic
Voltage 220V 60HZ
Power 3KW
Place of Origin Jiangsu, China
Brand Name CHENYU
Model Number CGF
Dimension(L*W*H) 2100*1800*2200mm
Weight 3000KG
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

vodka brandy filling line in glass/pet bottle
1. Technology from Taiwan
2. Glass bottle
3. Fill vodka or brandy





  Vodka brandy filling line in glass/pet bottle



vodka brandy filling line in glass/pet bottle





 vodka brandy filling line in glass/pet bottle --Technical Data





Model

Number of washing

filling and capping

Production capacity
Bottle per hour(0.5L)

Applicable bottle

specifications (mm)

Power(kw)

Dimension(mm)

CGF16/16/6

16, 16, 5

2000-4000

0.2L-2L

D=50-108 mm
H=170-340mm

3.58

2100x1400x2500

CGF18/18/6

18, 18, 6

5000-7000

4.68

2460x1720x2650

CGF24/24/8

24, 24, 8

8000-12000

6.58

3100x2100x2650

CGF32/32/8

32, 32, 8

12000-15000

9.68

3500x2500x2650

CGF40/40/10

40, 40, 10

15000-18000

9.68

4600x1800x2650

CGF50/50/12

50, 50, 12

20000-24000

10.8

5200x4500x3400

CGF60/60/15

60, 60, 15

25000-28000

11.28

6500x4500x3400





 vodka brandy filling line in glass/pet bottle --Equipments detail



Rinser filler capper monoblock machine

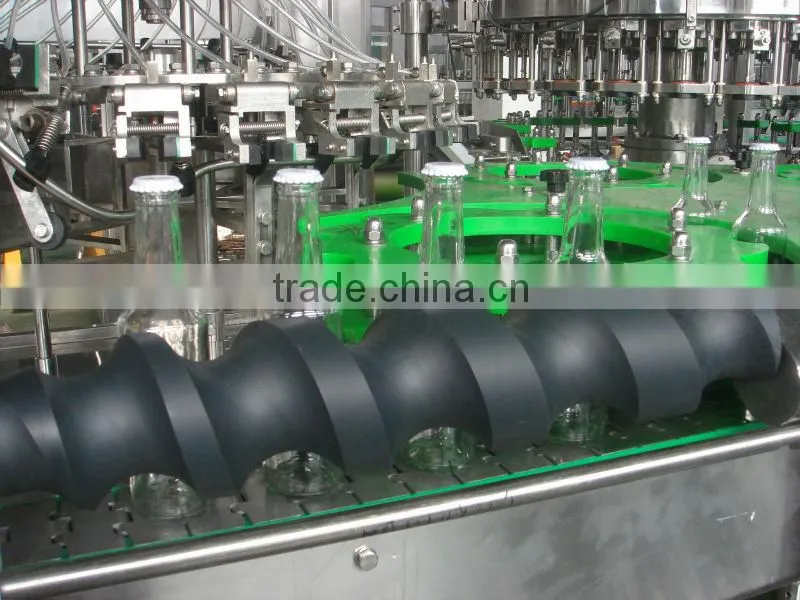

1. vodka brandy filling line in glass/pet bottle works harmoniously with belt-conveyor , It holds the bottles by feeding screw, thus, reducing the possibility of bottles falling over during conveying process.



2. vodka brandy filling line in glass/pet bottle is used to fill wine, juice into glass bottle and with metal crown capping function.



3. vodka brandy filling line in glass/pet bottle integrated three function: 1. Rinse the empty glass bottle, 2. filling the rinsed bottles, 3. capping the filled bottles





 vodka brandy filling line in glass/pet bottle --Real product photo show



vodka brandy filling line in glass/pet bottle

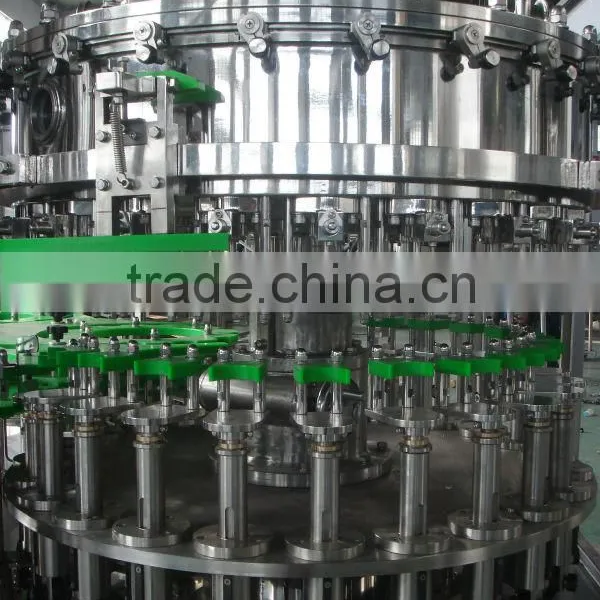

Washing part



 vodka brandy filling line in glass/pet bottle

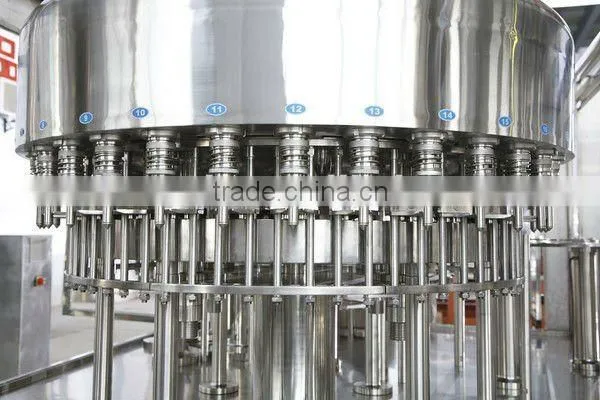

Filling part

vodka brandy filling line in glass/pet bottle





vodka brandy filling line in glass/pet bottle

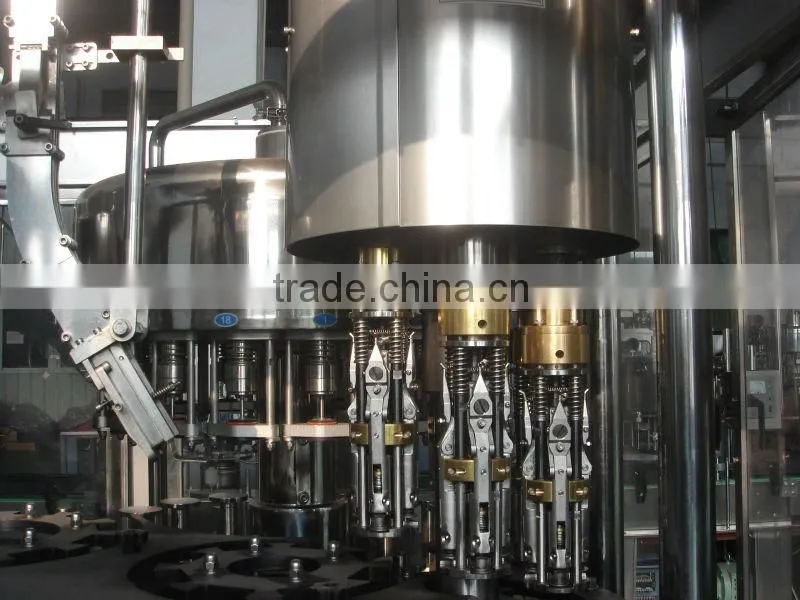

Capping part

This model is specifical for High cap(the height of the cap more than 50mm)!!!!

This is our  unique advantages!!(copyright)



 vodka brandy filling line in glass/pet bottle



This model is for normal  aluminum screw cap

vodka brandy filling line in glass/pet bottle
