Specifications
1.Beer brewery washing filling capping machine2.Output 2000-20000BPH
3.Bottle size:330ml-0.75
4.crown cap and scew cap

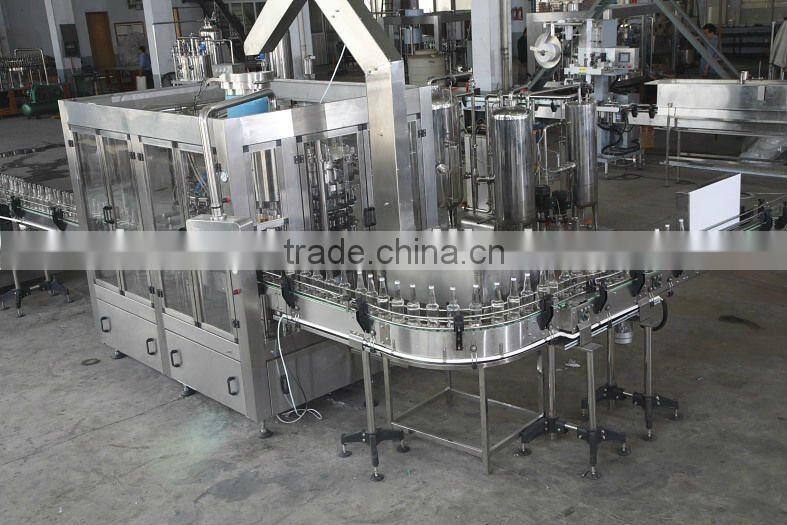

Beer brewery washing filling capping machine
Take notice please:
1. We can provide Pre-sale consultation service, if you have any questions,please don't hesitate to contact us.
2. We can also provide beverage treatment and water treatment which are made by ourselves.
I. Characteristics:
Rinser filler capper monoblock Beer brewery filling capping machine
1. Beer brewery filling capping machine can Washing Filling Capping Machine works harmoniously with belt-conveyor , It holds the bottles by feeding screw, thus, reducing the possibility of bottles falling over during conveying process.
2. Beer brewery filling capping machine is used to fill beer ,wine, juice into glass bottle and with metal crown capping function.
3. Beer brewery filling capping machine integrated three function: 1. Rinse the empty glass bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
II. Main Models and technical parameters
Model |
DCGF16-12-6 |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-10 |
DCGF50-50-15 |
|
Production Capacity:500ml |
3000bph |
5000bph |
8000bph |
12000bph |
18000bph |
|
Suitable Bottle size(mm) |
Bottle diameter:50-110 Bottle height:150-340 |
||||
|
Suitable Cap standard |
Crown cap or Plastic screw cap |
||||
Filling precision: |
≤±5mm |
||||
|
Filling pressure: (Mpa) |
0.2-0.25 |
||||
Power: (KW) |
3.5 |
4 |
6 |
8 |
9.6 |
Overall size:(mm) |
2450×1800 ×2350 |
2650×1900 ×2400 |
2900×2100 ×2400 |
4100×2400 ×2400 |
5450×3210 ×2400 |
Total weight: (KG) |
3000 |
3500 |
4500 |
5500 |
6500 |
