Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > WC67K-63T/25000mm ,aluminum Sheet Bending Machine, 2.5M Metal Plate Press Brake Quality Choice

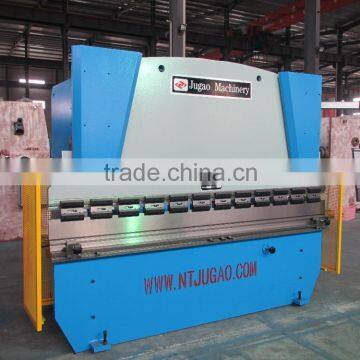

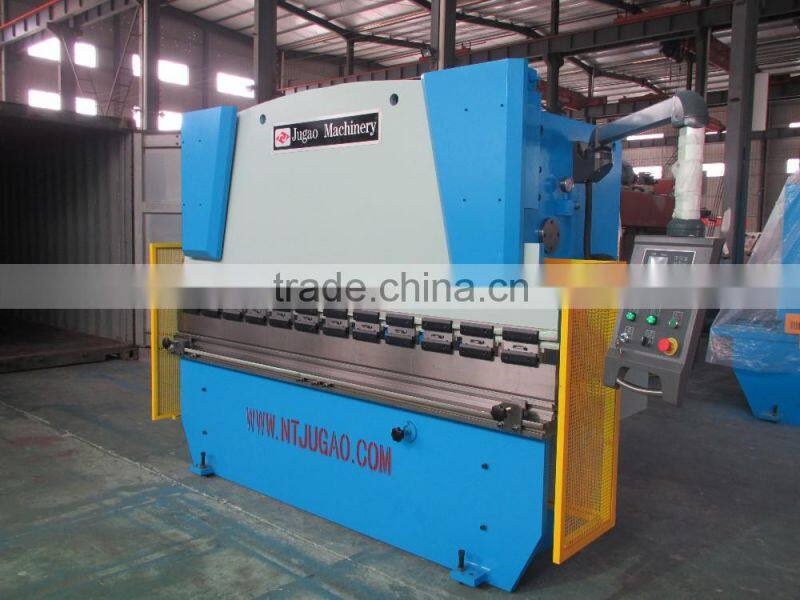

WC67K-63T/25000mm ,aluminum Sheet Bending Machine, 2.5M Metal Plate Press Brake Quality Choice
US$ 6,000 - 7,000
MOQ: 1 Acre
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JUGAO
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plate Bending Machinery for Steel Stainless Plate RollingUS$ 6600.00 - 6600.00MOQ: 1 Set -
Cnc Controlled Backgauge Press Brake 3D Visualisation Bending Machine With USB ConnectionUS$ 4,000 - 6,000MOQ: 1 Acre
-
Asymmetric 3 Roller Bending MachineUS$ 5000.00 - 5000.00MOQ: 1 Set
-
Cnc Steel Sheet Bend MachineryUS$ 5000.00 - 5000.00MOQ: 1 Set
-
World Top Brand Nanjing QC12Y Cnc Metal Sheet Shear Equipment With Highest QualityUS$ 4,000 - 6,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
JUGAO
Model Number
WE67K
Machine Type
Roller-Bending Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Carbon Steel
Power
Hydraulic
Automation
Automatic
Extra Services
Other, Prebending of both edges
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
We can talk on line now. Please click me.
Company Information
| 1.Company Name: Nantong Jugao Machinery Co Ltd |
| 2.Machine Brand: JUGAO |
| 3.JUGAO is leading manufacturer: bending machine, press brake, shearing machine, punching machine, power press, Ironworkers, rolling machine and hydraulic press etc. |
|
4.Official Website: Email: info(at) Tel:008613222111178 |
| 5.JUGAO machine video:/user/gaohua616 |
Product Description
cnc machine rolling hydraulic bending machine steel bending machine profile rolling machine hydraulic bender
cnc profile rolling machine hydraulic bender steel pipe rolling machine stainless steel rolling pipe bending machine
W24Y Hydraulic stainless steel pipes tubes and profile and section rolling bending machine
Features
| Rolls are hardened & made from high quality steel |
| Drive shafts are hardened and ground with double taper roller bearing support |
| Machine can be set up in horizontal or vertical working position |
| Roving foot pedal control with emergency stop |
| Hydraulic lateral angle guide rolls |
| Three rollers are powered . European quality. Can be used in both vertical and horizontal position |
Compared with other machines. Advantages of the machine.
| Perfectly complete pre-bending,rolled-up.Working principle: two down rollers as main driving roller.Triple geared drive,low voltage driver,low current consumption and high efficiency. |
| The two touch steel stick can permit the good finishing quality of asymmetric plate section bending.NC syterm,advanced and compact structure with full function. |
| The machine has six oil tanks(two big oil tanks,four small oil tanks),and the head is vertically.The yield strength bended profile with 320Mpa (Max.) |
| Both Horizontal and Vertical Working Positions.Double pinch hydraulic forming rolls.Hardened precision threadedx shafts.Dual adjustable lateral guidesRolls are driven via 3 separate hydraulic motorLower rolls hydraulic moveable up and down. |
| Perfectly complete pre-bending,rolled-up,roll calibrate.Working principle: two down rollers as main driving roller,or all three rollers as main driving roller,with upper roller fixed and two down rollers do up-and-town movement around one fixed center. |
| Triple geared drive,low voltage driver,low current consumption and high efficiency.Well hydraulic control,displacement liquid-crystal display with accuracy+_0.1mm. |
Advanced technology
| The two touch steel stick can permit the good finishing quality of asymmetric plate section bending.Advanced and compact structure with full function. |
| The machine has six oil tanks(two big oil tanks,four small oil tanks),and the head is vertically.The yield strength bended profile with 250Mpa (Max.).Full function,complicated structure,high precision and very stronger. |
| Digital Display Profile Bending Machine- W24S Serial | ||||||||
| Model&spec. | W24S-6 | W24S-16 | W24S-30 | W24S-45 | W24S-75 | W24S-100 | W24S-140 | |
| Max bending modulus of section (cm3) | 6 | 16 | 30 | 45 | 75 | 100 | 140 | |
| Bending speed(m/min) | 5.5 | 5.5 | 5.5 | 5.5 | 5 | 5 | 5 | |
| yield limit of material (MPa) | 245 | 245 | 245 | 245 | 245 | 245 | 245 | |
| inward bending of angle steel | The max cross section (mm) | 50×5 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 | 150×16 |
| The min bending diameter (mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 2400 | |
| The min cross section (mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 40×5 | 50×5 | |
| The min bending diameter (mm) | 400 | 550 | 560 | 600 | 600 | 720 | 1000 | |
| outward bending of angle steel | The max cross section (mm) | 50×5 | 80×8 | 90×10 | 100×10 | 120×12 | 140×16 | 150×16 |
| The min bending diameter (mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | 2200 | |
| The min cross section (mm) | 20×3 | 30×3 | 35×3 | 36×5 | 38×4 | 45×5 | 50×5 | |
| The min bending diameter (mm) | 400 | 550 | 500 | 600 | 700 | 760 | 400 | |
| outward bending of channel steel | channel steel model | 8 | 12 | 16 | 20 | 25 | 28 | 30 |
| The min bending diameter (mm) | 600 | 800 | 800 | 1000 | 1100 | 1100 | 1200 | |
| inward bending of channel steel | channel steel model | 8 | 12 | 16 | 20 | 25 | 28 | 30 |
| The min bending radius (mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | 1700 | |
| plane bending of flat steel | The max cross section (mm) | 100×18 | 150×25 | 180×25 | 200×30 | 220×40 | 250×40 | 280×50 |
| The min bending diameter (mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | |
| vertical bending of flat steel | The max cross section (mm) | 50×12 | 75×16 | 90×20 | 100×25 | 110×40 | 120×40 | 150×40 |
| The min bending diameter (mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 | 1500 | |
| bending of round pipe | The max cross section (mm) | 42×4 | 76×4.5 | 89×5 | 89×8 | 114×5 | 159×5 | 168×6 |
| The min bending diameter (mm) | 500 | 750 | 900 | 900 | 1200 | 2000 | 2000 | |
| bending of round bar | The max cross section (mm) | 38 | 52 | 62 | 75 | 85 | 90 | 100 |
| The min bending diameter (mm) | 450 | 600 | 600 | 800 | 100 | 1100 | 1200 | |
| bending of square pipe | The max cross section (mm) | 45×3 | 60×4 | 70×4 | 80×6 | 90×8 | 100×10 | 125×10 |
| The min bending diameter (mm) | 750 | 900 | 1000 | 1200 | 1600 | 2000 | 2500 | |
|
|
|
|
Packaging & Shipping
Our Services
1.Standardization of Service “212" |
| 2: response in 2 hours |
| 1: provide solution in 1 day |
| 2: solve complaint in 2 days |
| 2.Installation Service |
| Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel ) |
| 3.Training Service |
| Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines. |
| 4.Quality Guarantee |
| We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. |
| We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. |
| Machine warranty is 3 year. We offer flexible extended warranties if needed. |
FAQ
1. How about your machine quality?We are worry about the quality.
|
RE:JUGAO is a mature brand in CHINA,through our 20 years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction. |
2. Whether the machine price can be more discount
|
RE:1.JUGAO always provide high quality machine,oversea market is more important and difficult than domestic market because of communicationtime costing after sales,So always,our machine has enough qaulity standard to make surethe machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients. |
