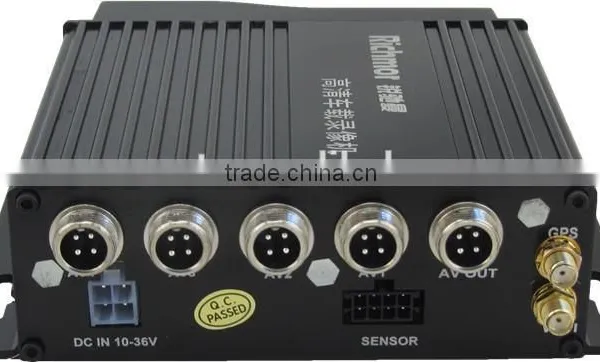

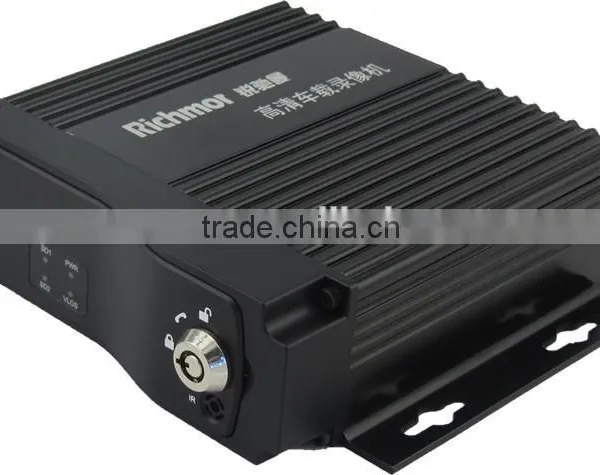

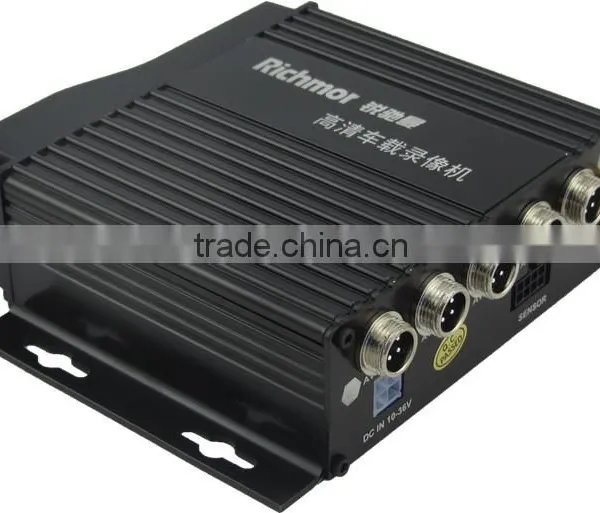

Small Hiden Truck Camera Vehicle DVR 4CH dual SD Card with Aviation Connetor

Product Features

◆ H.264 Video Compression,multiple steam recording, Support 4CH 720P million pixels HD video recording.support 4CH 720P million pixels AHD input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input ;
◆ VGA output for optiona ;
◆ High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;
◆ Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;
◆ Support 12VDC/2.5Amp output voltage,power supply for Camera/Screen etc;
◆ Dual SD Card Support, each max 128GB,,protect DVR from shock & Dust damage;
◆ Watchdog abnormal restart function,protect SD Card and Record;
◆ Exclusive File System protect data completeness,prevent SD Card fragment;
◆ ACC Delay off,can set 24 hours;
◆ Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
◆ Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
◆ Support GPS/BD G-sensor Optional;
◆ Optional single RS232 serial port or single RS485 extension
◆ 4CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
◆ 1CH Alarm Output;
◆ Support picture snap when alarm;
◆ Easily Smart GUI Interface, saving time in device setting;
◆ Can upgrade the software via SD card.
◆ Stability Aviation plug, easily connecting and high shock proof;
◆ Be Customized according your request;

ANY DELIVERY WAY AS YOU REQUEST

Packing Details :1pc/box,1box/carton,by standard box and carton,packing method can be as your request.
Delivery Details : We can delivery goods by air,by sea,by truck,etc. 5-15days after deposit and order details confirmed.

Q:Are you factory manufacturer or trade company?
We are factory manufacturer,we have our own factory and technology/skill support,we have engineers to support/take charge of R&D ,resolve problems product.

Q: Does the MDVR support Hard drive and SD card?
Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.The storage capacity can be from 32GB to 2TB.

Q: Is it difficult to install MDVR into the vehicle?
Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,is it available?

Definitely yes!The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.In fact, There are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,PTZ camera, and so on.

Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

Yes, we have SDK ready and welcome your OEM customized order!

Q: Does the MDVR come with accessroy, such as HDD, SD card, Microphone, Camera, Extension cable etc?

We have all accessories ready. You can ask us to make the complete quote for one whole set.Normally the MDVR doesn't include any accessroy. Therefore it is advisable to inform us about your target accessory. All are can done right here. One-stop-serve purchasing.

Q: Can I get a sample to test before formal order?

Yes, you can.We can provide sample with 1 month test period.It will demand some deposit and the delivery(both send and resend) cost is supposed to be on your own side.If the deliver cost is not so high, we recommend this way.If not, then we do not recommend you do this.
Do not forget the import tax as well.
