Home > Instruments & Meters > Meter for Electricity > Multimeter > Best Digital Multimeter UNI-T UT276A

Best Digital Multimeter UNI-T UT276A

Name: Best Digital Multimeter UNI-T UT276A
Brand: UNI-T
SKU: 107486775
Availability: InStock

Best Digital Multimeter UNI-T UT276A thumbnail-1

Best Digital Multimeter UNI-T UT276A thumbnail-2

Best Digital Multimeter UNI-T UT276A thumbnail-3

Best Digital Multimeter UNI-T UT276A thumbnail-4

Best Digital Multimeter UNI-T UT276A thumbnail-5

Best Digital Multimeter UNI-T UT276A thumbnail-6

Best Digital Multimeter UNI-T UT276A photo-1

Best Digital Multimeter UNI-T UT276A photo-2

Best Digital Multimeter UNI-T UT276A photo-3

Best Digital Multimeter UNI-T UT276A photo-4

Best Digital Multimeter UNI-T UT276A photo-5

Best Digital Multimeter UNI-T UT276A photo-6

US$ 234.6 - 264.4 MOQ: 5 Boxes

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT276A

Contact Supplier Request Quote Chat Now

Sinotronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT276A

Measuring Current Range none

Measuring Voltage Range none

Measuring Resistance Range 0.01Ω~1200Ω

Measuring Capacitance Range none

Measuring Inductance Range none

Operating Temperature 0℃~55℃

Dimensions 285mm * 85mm * 56mm

Product image

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product data

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

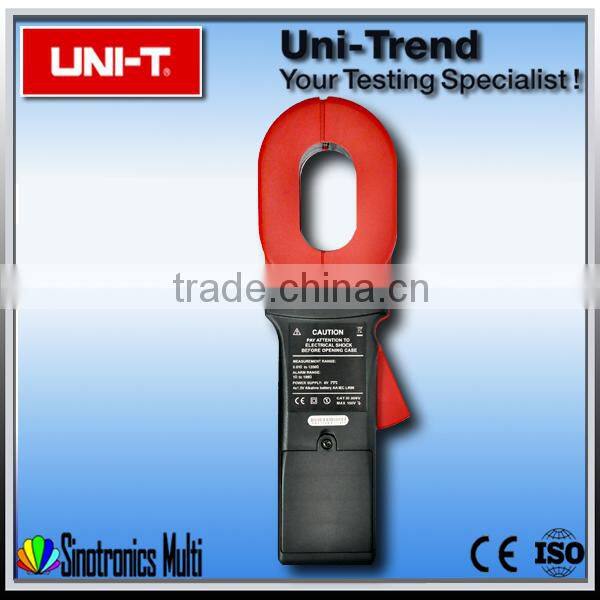

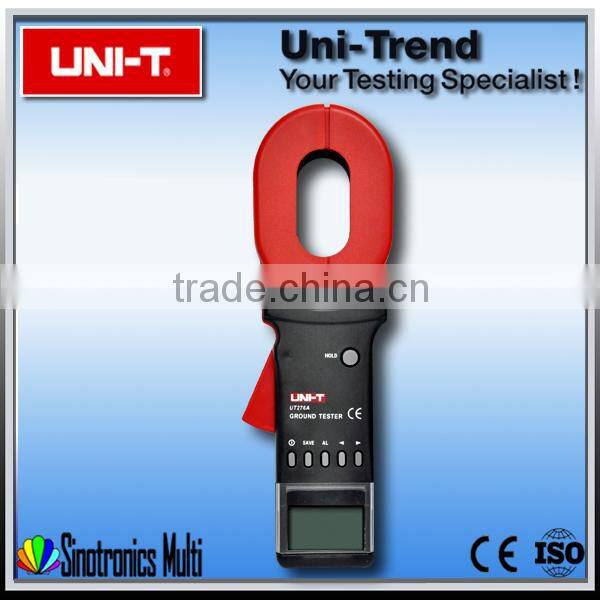

UT270 series clamp earth resistance tester is widely used in electric power, telecommunications, meteorology, oil field, construction and industrial electrical equipment, such as the ground resistance measurement, loop resistance measurement. In the measurement of the grounding system with a loop, it is not necessary to disconnect the ground from the assembly line, without the need of auxiliary electrode, safe and fast.
UT276A series clamp grounding resistance instrument with long jaw and round jaw points, long jaw, especially suitable for the flat ground.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product attribute

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications	Range	Best Accuracy
Model		UT276A
Earth Ground Resistance (Ω)	0.01Ω-0.099Ω	±(1%+0.01)
	0.1Ω-0.99Ω	±(1%+0.01)
	1.0Ω-49.9Ω	±(1%+0.1)
	50Ω-99.5Ω	±(2%+0.5)
	100Ω-199Ω	±(3%+1)
	200Ω-395Ω	±(6%+5)
	400Ω-590Ω	±(10%+10)
	600Ω-800Ω	±(20%+20)
	800Ω-1200Ω	±(25%+30)
Features
Display Count	4 Digits Display LCD	√
Auto Range		√
Jaw Capacity		32mm
Single Measure Time	1 Second	√
Resistance Measurement Frequency	>1KHz	√
Current Measurement Frequency	50Hz/60Hz	√
Resistance Limit Alarm	1Ω-199Ω	√
RS-232		√
Beeper and Light Alarm		√
Jamming Signal Recognition		√
Over-Range Display		√
Low Battery Indication		√
Data Logging		99
General Characteristic
Power	1.5V Alkaline Batteries(LR6)X 4
LCD Size	47mm X 28.5mm
Product Color	Red and Grey
Product Net Weight	1160g
Product Size	285mm X 85mm X 56mm

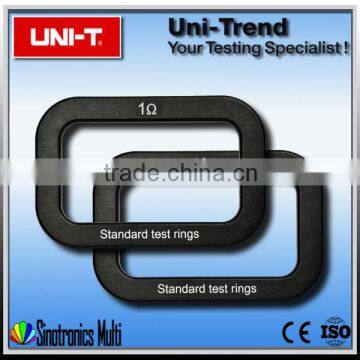

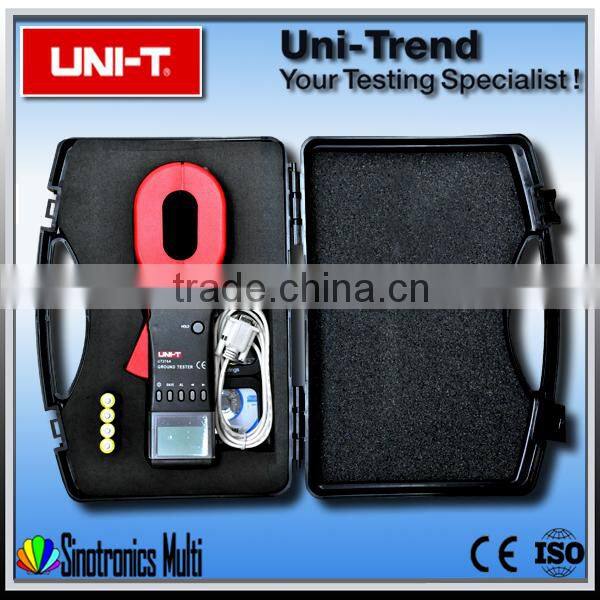

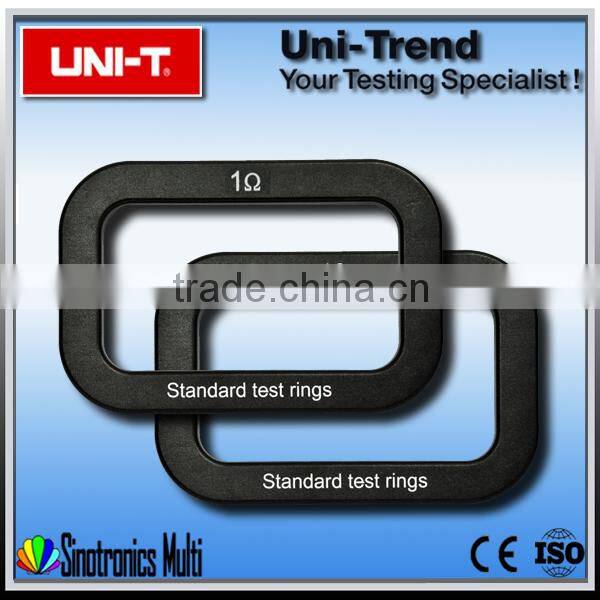

Standard Accessories	Batteries, Test Ring, Tool Box
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	6 PCs
Standard Carton Measurement	610mm X 375mm X 320mm (0.073CBM Per Standard Carton)
Standard Carton Gross Weight	25Kg

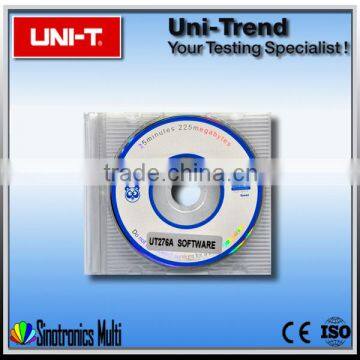

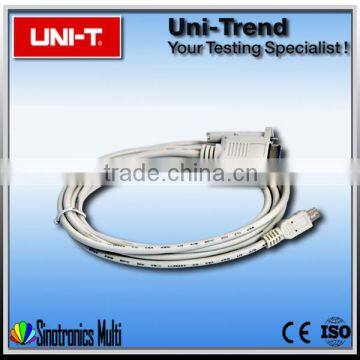

Optional Accessories	USB Interface Cable,PC Software CD

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
