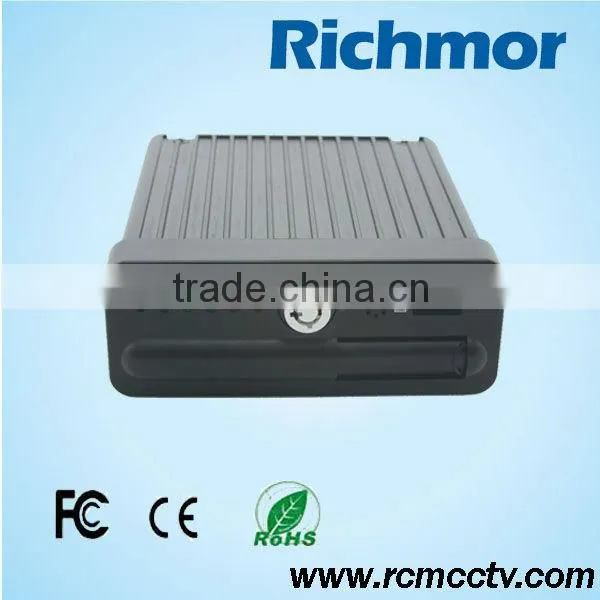

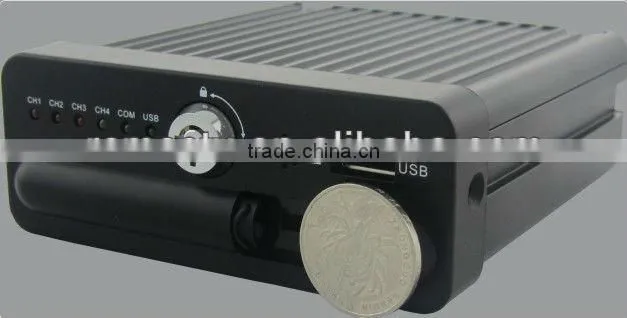

Economic 2CH/4CH WIFI CCTV DVR 3G Mini DVR With Google Map

Name: Economic 2CH/4CH WIFI CCTV DVR 3G Mini DVR With Google Map
Brand: Richmor/OEM
SKU: 107486597

US$ 82 - 200 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Richmor/OEM

Model Number:

RCM-MDR208SDG

Shenzhen Richmor Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Richmor/OEM

Model Number RCM-MDR208SDG

Specifications

Mini DVR
4CH Aviation Plug Video Input
6-48V Wide Voltage
18 months Warranty
CE FCC ROHS

Economic 2CH/4CH WIFI CCTV DVR 3G Mini DVR with Google Map

Datasheet:

Item	Parameter

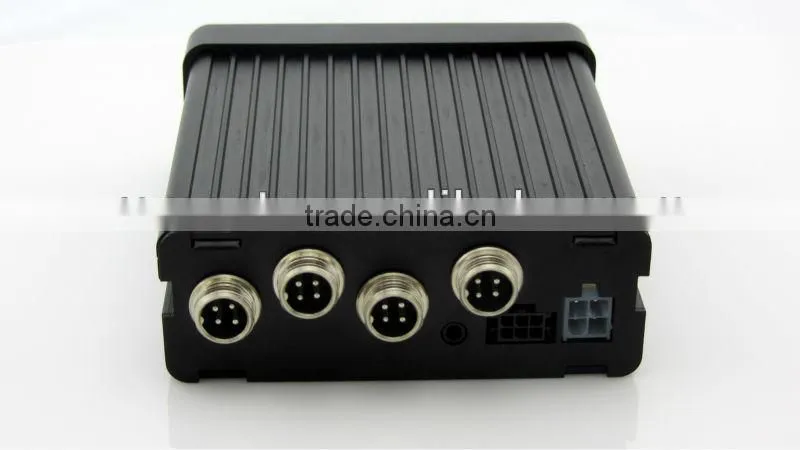

A&V Input	4 channel, aviation connector
A&V Output	1 channel, aviation connector
Video compression format	H.264
Resolution	D1/HD1/CIF selectable. D1-the highest, CIF-the lowest
Video Frame rate	100 fps (PAL),120fps(NTSC),50fps(4*D1)
Recording	Fire recording, time recording, alarm recording
Storage	Hard drive( Support SD card recording synchronization)
Alarm	1CH alarm; alarm and recording at the same time
Vehicle recording	Recording Vehicle operations (turn left/right, stop lamp), license NO. ,route, driver
System Protection	Saving the recording data when the power off, support hard disk upgrading
Network	RJ45 Ethernet interface and can copy the data through Wired/Wireless networks, controlling and managing the main machine.
PTZ control	RS232 can turn to PTZ interface

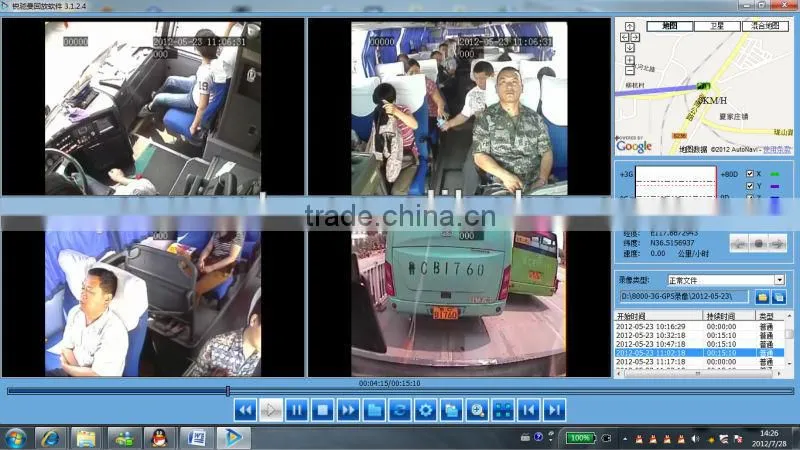

GPS	Support GPS module expansion, recoding and playback the vehicle route
G-SENSOR Module	Support G-Sensor module expansion, recording vehicle direction state and alarm
Battery	Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; instantaneous range: 6-70V. Support overvoltage protection, under-voltage protection, short-circuit protection, transposition protection, fire on/off timing,delay power-off. Output voltage is 12v .
Power	2.4W
System	Embedded full-time multitask control system, support Chinese simplified & English
Working environment	Working temperature: -20C°to 50C°,Working humidity: <90%; storage temperature: -30C to 70C,Storage humidity<90%
Dimensions	140mm120mm30mm
