Specifications
4CH Mobile Car DVR1. Support 3G, GPS, G-sensor
2. Double SD Cards Support
3. Local and Remote Control

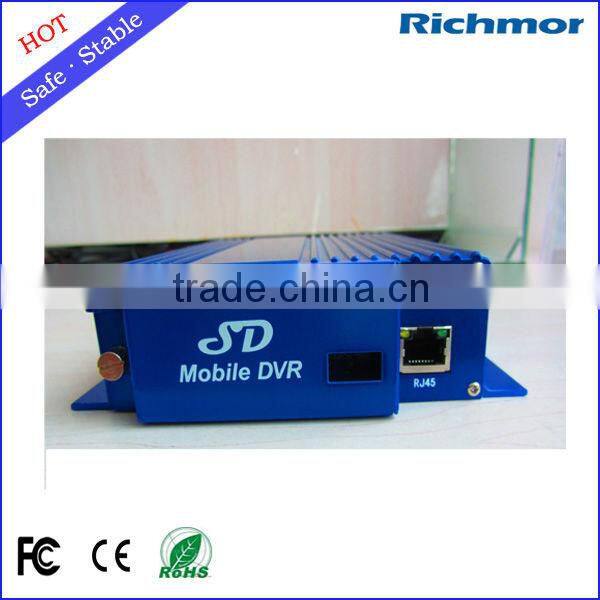

Professional Car Power Supply Design 4CH Mobile Car DVR Shock Proof Support Software Upgrading Customized Function
Specification
Item |
Parameter |
A&V Input |
4 channel, aviation connector |
A&V Output |
1 channel, aviation connector |
|
Video compression format |
H.264 |
Resolution |
D1/HD1/CIF selectable. D1-the highest, CIF-the lowest |
Video Frame rate |
100 fps (PAL),120fps(NTSC),50fps(4*D1) |
Recording |
Fire recording, time recording, alarm recording |
Storage |
2 SD Cards Support |
|
Alarm
|
1CH alarm; alarm and recording at the same time |
Vehicle recording |
Recording Vehicle operations (turn left/right, stop lamp), license NO. , route, driver |
System Protection |
Saving the recording data when the power off, support hard disk upgrading |
Network |
RJ45 Ethernet interface and can copy the data through Wired/Wireless networks, controlling and managing the main machine. |
PTZ control |
RS232 can turn to PTZ interface |
GPS |
Support GPS module expansion, recoding and playback the vehicle route |
G-SENSOR Module |
Support G-Sensor module expansion, recording vehicle direction state and alarm |
Battery |
Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; Instantaneous range: 6-70V. Support overvoltage protection, under-voltage protection, short-circuit protection, transposition protection, fire on/off timing,delay power-off. Output voltage is 12v . |
Power |
2.4W |
System |
Embedded full-time multitask control system, support Chinese simplified & English |
Working environment |
Working temperature: -20C°to 50C°,Working humidity: <90%; storage temperature: -30C to 70C,Storage humidity<90% |
Dimensions |
112mm*36mm*138mm |
Key Features
1. Superhigh anti-shock, damp-proof, dust-proof functions, easy installation
2. Support double data backup (Very Safe)
3. Support D1 each Channel, PTZ Control, 3G remote monitoring
4. Best after-sale service with 2 years warranty, lifetime maintaince
5. Support 3G. GPS. G-SENSOR. Modual for option
6. Over-load, over-current, reverse, ESD, power-off protection
7. Support Auto recording, timed recording, alarm recording ( open/ close door etc.)
8. Antomatic ON/OFF setup, can set many time periods.
9. Independent delayed-time off circuit, fire-off delaying recording, delay time is settable.
10. Support powerful client program: monitoring, playback, recording and screenshot and playback analysis.
Successful cases of Applications
Our DVRs are widely used in bus, car, taxi, dangerous cargo truck, police car, van etc.
1. Help the investigation of the scene for traffic accident
2. Gather evidence for violent crimes (blackmail and robbery)
3. Facilitate the management of company vehicles (GPS positioning)
4. Full view backing-car function
5. Sensor & alarm
6. Home security (CCTV)
We have many successful cases in USA, UK, Russia, South Africa, Romania, Saudi etc.

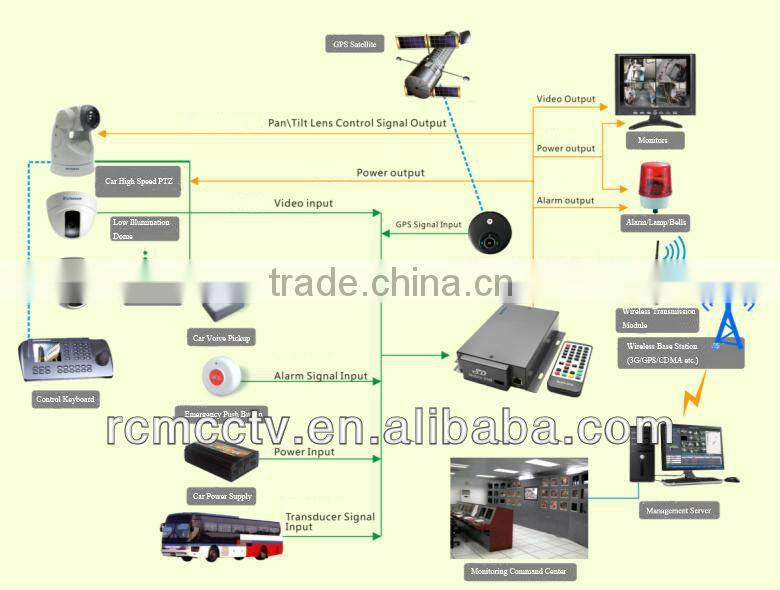

* Design Patterns

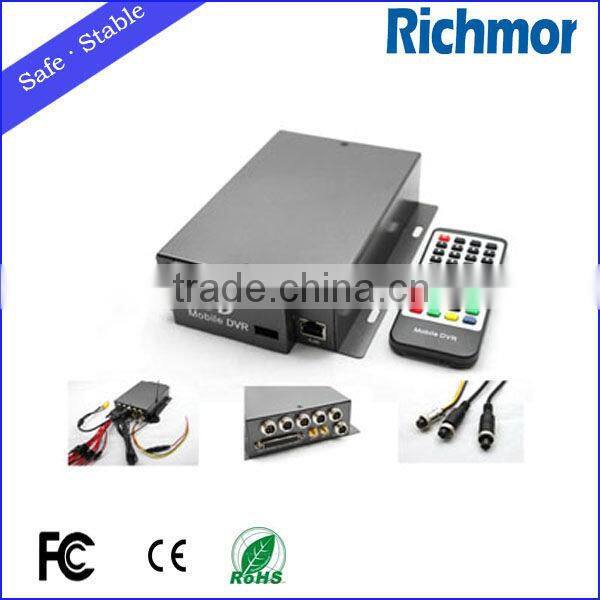

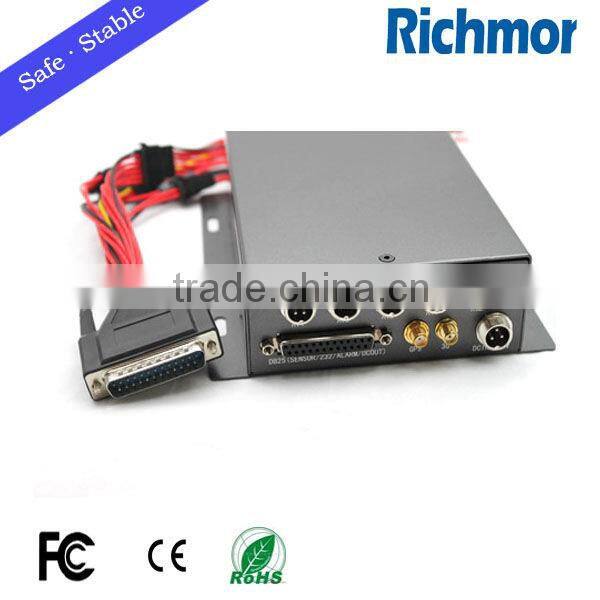

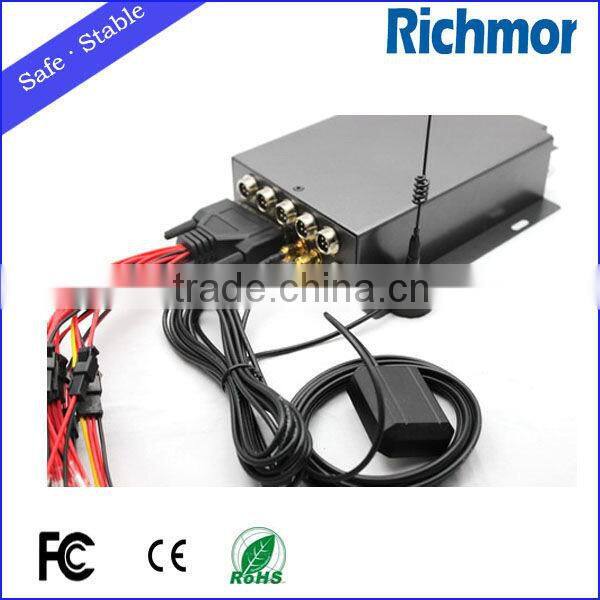

Detailed Picture

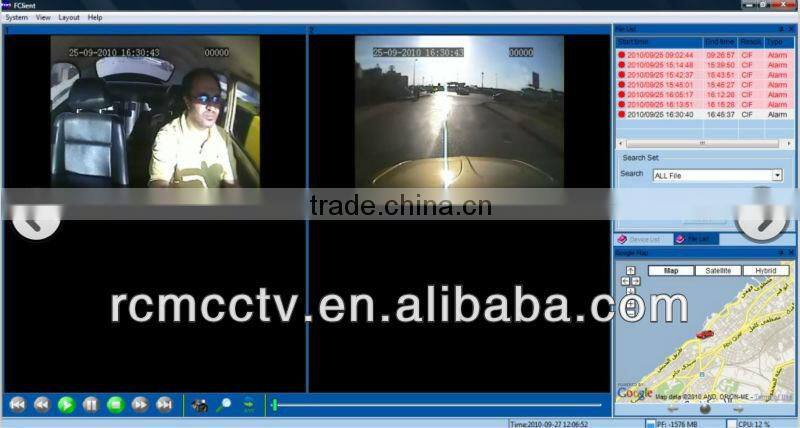

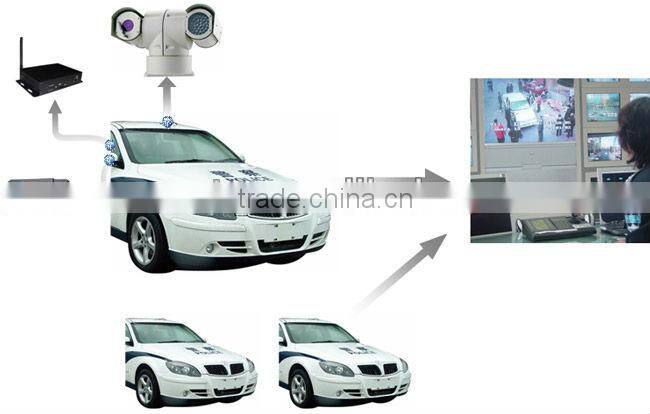

3G Tracking Playback Platform
Richmor is professional factory which developing, designing, producing and marketing for mobile DVRs and IP Cameras, PTZ Cameras etc. for many years. Owing to so many years experice of producing and exporting, we can offer best Technical Support and compatible price according to different market.
Trust us, choose us, saving your time and money for long-term cooperation!
Packing Details
Product Warranty
All our products must 100% pre-tested before shipping!
2 years warranty from the date you purchase.
Our machines must be aged more than 48 hours before sending to customers.
