4CH CCTV Recorder H.264 3G GPS Car DVR Recorder

4CH CCTV Recorder H.264 3G GPS Car DVR Recorder thumbnail-1
4CH CCTV Recorder H.264 3G GPS Car DVR Recorder photo-1
US$ 1 - 274 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Richmor/OEM
Model Number:
RCM-MDR500SDG
Contact Supplier Request Quote Chat Now
Shenzhen Richmor Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Richmor/OEM
Model Number RCM-MDR500SDG

Specifications

1)4CH CCTV Recorder H.264 3G GPS Car DVR Recorder
2)3G GPS DVR Recorder
3)6-48V Voltage
4)OEM/ODM
5)18 months warranty

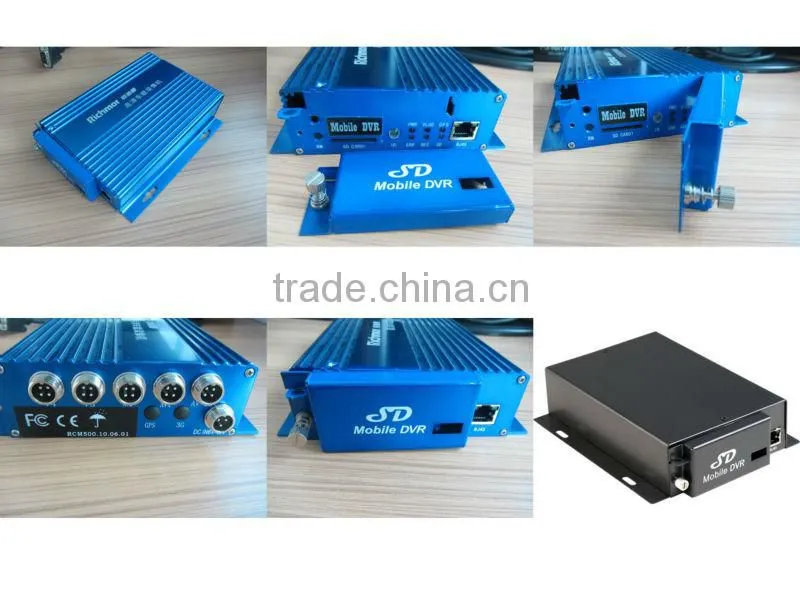

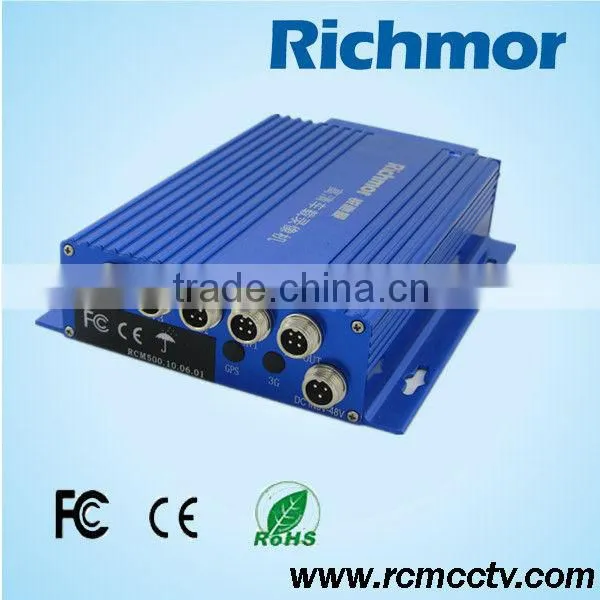

4CH CCTV Recorder H.264 3G GPS Car DVR Recorder

Item NO

Function

RCM-MDR501S

Basic Recording

RCM-MDR501SD

Black Box Car Running Recording

RCM-MDR501SG

GPS

RCM-MDR501SDG

3G+GPS

Customized Product

Function optional



4CH CCTV Recorder H.264 3G GPS Car DVR Recorder

DVR Recorder Specification

Item

Parameter

A&V Input

4 channel, aviation   connector

A&V Output

1 channel, aviation   connector

Video compression

H.264

Resolution

D1/HD1/CIF for optional

Video Frame rate

100 fps (PAL),120fps(NTSC),50fps(4*D1)

Recording

Fire recording, time recording, alarm recording

Storage

Dual SD Cards (128GB) Support

Alarm

6 Ch alarm; alarm and recording at the same time

Output Voltage

12V

Playback

1-4 channel playback

Network

RJ45, Ethernet interface,Wired/Wireless networks,

PTZ control

RS232

GPS

Support, recoding route, speed, position of vehicle

G-Sensor

Support, recording vehicle direction state and alarm

Battery

Wide Voltage: 6V~48V(70V instant voltage)

Power

2.4W

System

Embedded full-time multitask control system

Working environment

Working temperature: -20C°to 50C°,Working humidity: <90%;

storage  temperature: -30C to 70C,Storage humidity<90%

Dimensions

180mm*145mm*45mm      1KG

Language

Chinese, English........

Backup

SD Cards and 3G Back Up

Wireless Transmission

GPRS,EDGE,CDMA,WIFI,3G ( EVDO,WCDMA,CDMA2000 ) optional



Key Features of Richmor DVR Recorder

1.  Superhigh resist vibration, water-proof, dust-proof functions, easy installation

2.  Support double data backup (Very Safe)

3.  Support D1 each Channel, PTZ Control, 3G remote monitoring

4.  Best after-sale service with 2 years warranty, lifetime maintaince

5.  Support 3G and GPSModual for option

6.  Over-load, over-current, reverse, ESD, power-off protection

7.  Support Auto recording, timed recording, alarm recording ( open/ close door etc.)

8.  Antomatic ON/OFF setup, can set many time periods.

9. Independent delayed-time off circuit, fire-off delaying recording, delay time is settable.

10.  Support powerful client program: monitoring, playback, recording and screenshot and   playback analysis.

11. Unique UPS Tech

DVR Recorder Certification

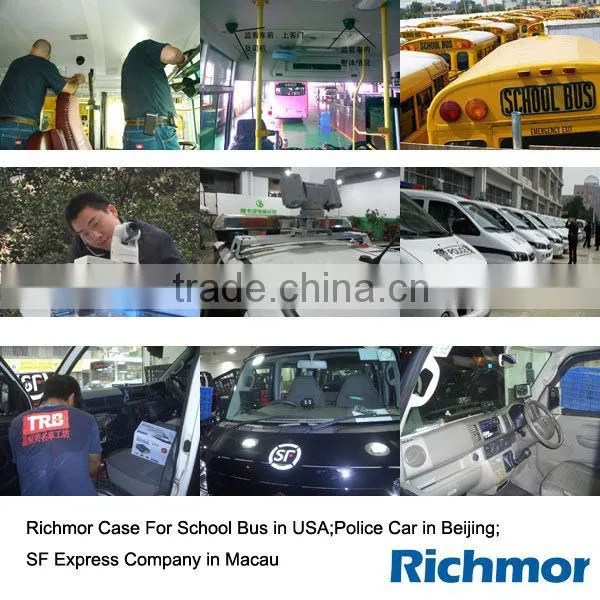

Applications of DVR

Our DVRs are widely used in bus, car, taxi, dangerous cargo truck, police car, van etc.

4CH CCTV Recorder H.264 3G GPS Car DVR Recorder

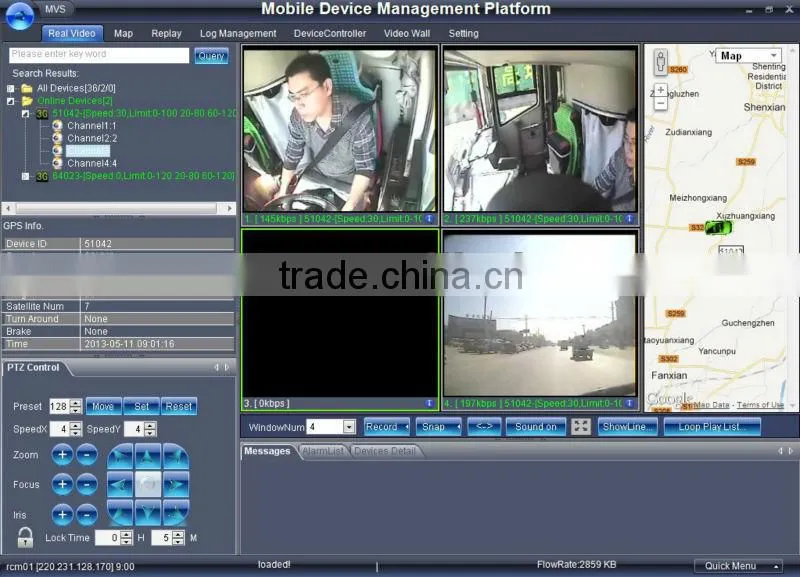

Richmor Powerful Software Free to You

4CH CCTV Recorder H.264 3G GPS Car DVR Recorder

Packing Detail

1. Brand Box with Our Logo Richmor.

2. Neutral Box.

3. Your Logo is also Welcomed.

4CH CCTV Recorder H.264 3G GPS Car DVR Recorder

Product Warranty

All our products must be pre-tested by professional QC before shipping!

2 years warranty from the date you purchase.

Our machines must be aged more than 48 hours before sending to customers.
