TX40 AC Contactors/contactors

Wenzhou Giant Electrical Appliances Co., Ltd.

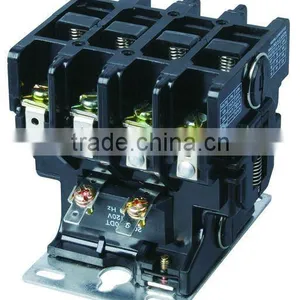

TX40 AC Contactors/contactors thumbnail-1

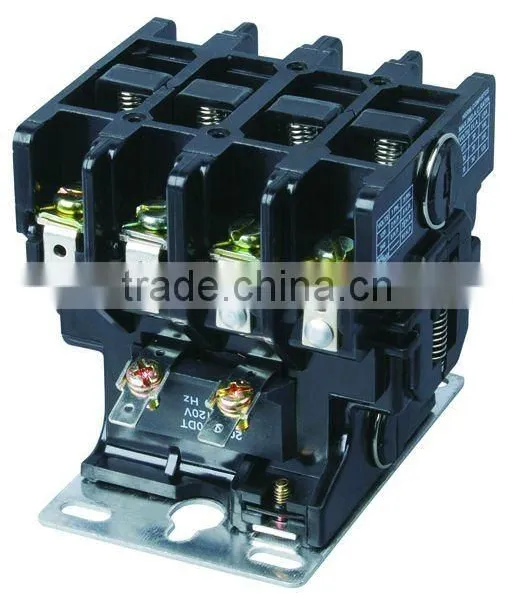

TX40 AC Contactors/contactors photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
TITCHA
Model Number:
TX40 Relay
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name TITCHA
Model Number TX40 Relay
Theory Other, AC Contactors
Usage General Purpose
Protect Feature Sealed
Contact Load High Power

TX40

Service Conditions:
1.  Ambient Temperature:-5°C-+40°C
2.  Elevation:≤ 2000m
3.Humidity:≤ 50% at 40°C,≤ 90% at monthly temperature of 25°C;
4. Pollution Degree 3;
5. Mounting type: type III
6.Angle between mounting surface and vertical surface:≤ 5º
7.Screw mounting.

Table 1:

SizeTX10TX20TX30TX40TX40-2
Rated insulating voltage Ui(V)660660660660660
Rated operating volt Ue(V)220220220220220
Rated thermal current Ith(A)2535455555
AC-8a Rated operating current under AC-8a le(A)1625324040
AC-8b Rated operating current under AC-8b le(A)812.5162020

Table 2:

SystemRated bolt.Ue(V)Rated Current.leA)Making&breakingConditions
AC-8a220See Table 1lc/leUr/UeCosΦOperating times
AC-8b1.01.050.8030000
6.00.356000

Table 3:
SystemRated bolt.Ue(V)Rated Current.leA)Making Conditions Breaking ConditionsService Life(times)

Operatingfrequency
(Times/h)

lc/leUr/UeCosΦlc/leUr/UeCosΦ
AC-8a220le<17
le≥17		610.651.00.170.6530060
0.350.35
AC-8ble<17
le≥17		60.656.010.6512020
0.350.35
