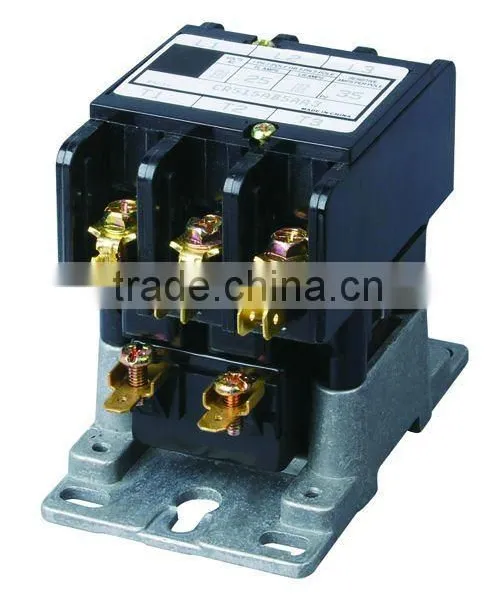

TX30 AC Contactors/contactors

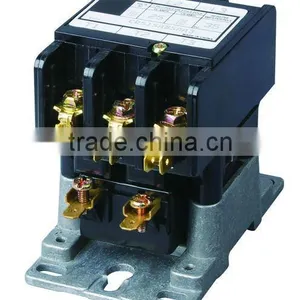

TX30 AC Contactors/contactors thumbnail-1
TX30 AC Contactors/contactors photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TITCHA
Model Number:
TX30 relay
Contact Supplier Request Quote Chat Now
Wenzhou Giant Electrical Appliances Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TITCHA
Model Number TX30 relay
Theory Other, AC Contactors
Usage General Purpose
Protect Feature Sealed
Contact Load High Power

TX30

Service Conditions:
1.  Ambient Temperature:-5°C-+40°C
2.  Elevation:≤ 2000m
3.Humidity:≤ 50% at 40°C,≤ 90% at monthly temperature of 25°C;
4. Pollution Degree 3;
5. Mounting type: type III
6.Angle between mounting surface and vertical surface:≤ 5º
7.Screw mounting.

Table 1:

Size TX10 TX20 TX30 TX40 TX40-2
Rated insulating voltage Ui(V) 660 660 660 660 660
Rated operating volt Ue(V) 220 220 220 220 220
Rated thermal current Ith(A) 25 35 45 55 55
AC-8a Rated operating current under AC-8a le(A) 16 25 32 40 40
AC-8b Rated operating current under AC-8b le(A) 8 12.5 16 20 20
Table 2:
System Rated bolt.Ue(V) Rated Current.leA) Making&breakingConditions
AC-8a 220 See Table 1 lc/le Ur/Ue CosΦ Operating times
AC-8b 1.0 1.05 0.80 30000
6.0 0.35 6000

Table 3:
System Rated bolt.Ue(V) Rated Current.leA) Making Conditions Breaking Conditions Service Life(times)

Operatingfrequency
(Times/h)
lc/le Ur/Ue CosΦ lc/le Ur/Ue CosΦ
AC-8a 220 le<17
le≥17		 6 1 0.65 1.0 0.17 0.65 300 60
0.35 0.35
AC-8b le<17
le≥17		 6 0.65 6.0 1 0.65 120 20
0.35 0.35
