Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

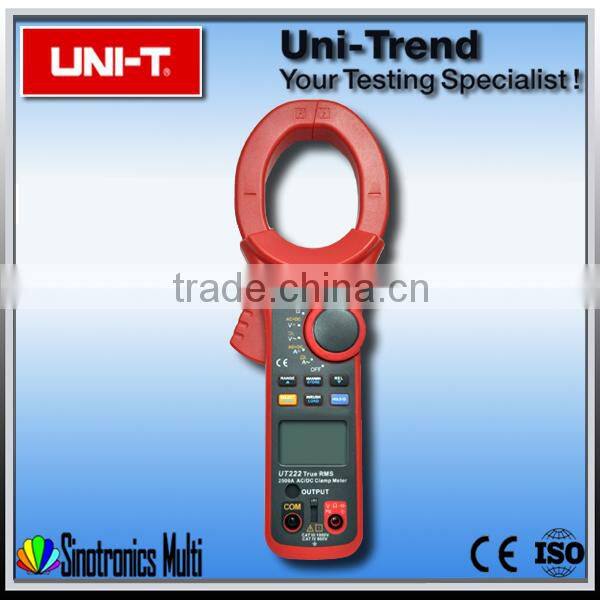

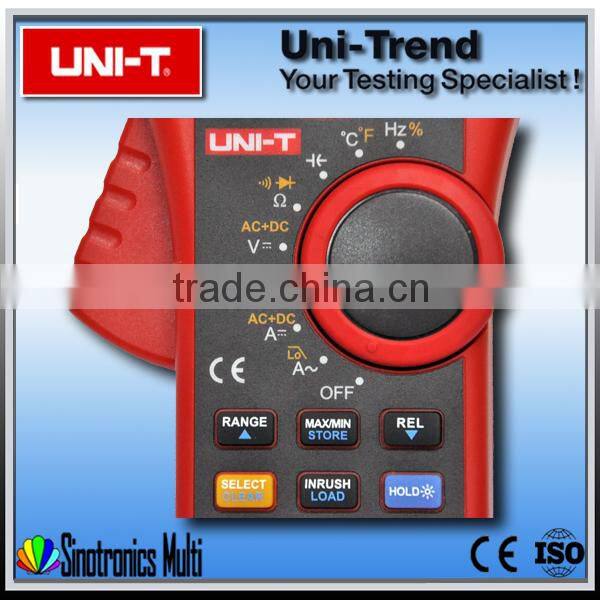

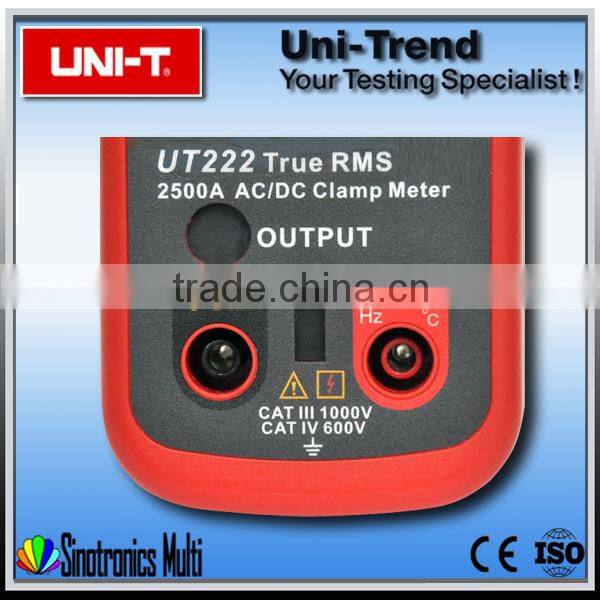

UT222 are stable and safe 3 5/6 digit AC&DC digital clamp meters.It is perfectly designed with over-load protection for all ranges and the unique structure, making it a superb professional meter especially for electricians.
An ideal tool for the maintenance and troubleshooting needed in metallurgy, manufacturing, petroleum, electric power, chemical industry, etc;
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specifications | Range | Best Accuracy |
| Model | UT222 | |
| AC Current(A) | 600A/2500A | ±(1.5%+5) |
| DC Current(A) | 600A/2500A | ±(1.5%+5) |
| AC Voltage(V) | 6V/60V/600V/1000V | ± (1.2%+5) |
| DC Voltage(V) | 6V/60V/600V/1000V | ±(0.5%+2) |
| Resistance(Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1%+2) |
| Capacitance(F) | 60nF/600nF/6uF/60uF/600uF/6000uF/60mF | ±(3.0%+5) |
| Frequency(Hz) | 60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/60MHz | ±(0.1%+3) |
| Temperature(°C) | -40°C ~ 1000°C | ±(1.0%+8) |
| Temperature(°F) | -40°F ~ 1832°F | ±(1.0%+12) |
| Features | ||
| Display Count | 6000 | |
| Auto Range | √ | |
| Jaw Opening | 63mm | |
| True RMS | AC Voltage/AC Current | √ |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Continuity Buzzer | √ | |
| AC+DC | √ | |
| Low-Pass Filtering | √ | |
| Inrush Current | AC Current | √ |
| Relative Function | √ | |
| Data Hold | √ | |
| MAX | √ | |
| MAX/MIN | √ | |
| Data Storage | 1000 | |
| LCD Backlight | √ | |
| Analogue Bar Analogue | 61 | |
| Full Icon Display | √ | |
| Auto Power Off | √ | |
| Low Battery Indication | √ | |
| Input Impedance | ≥10MΩ | √ |
| I-OUT Function | √ | |
| General Characteristics | ||
| Power | 9V Alkaline Battery(6LF22) | |
| LCD Size | 43mm×30 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 725g | |
| Product Size | 298mm × 100mm × 48mm | |

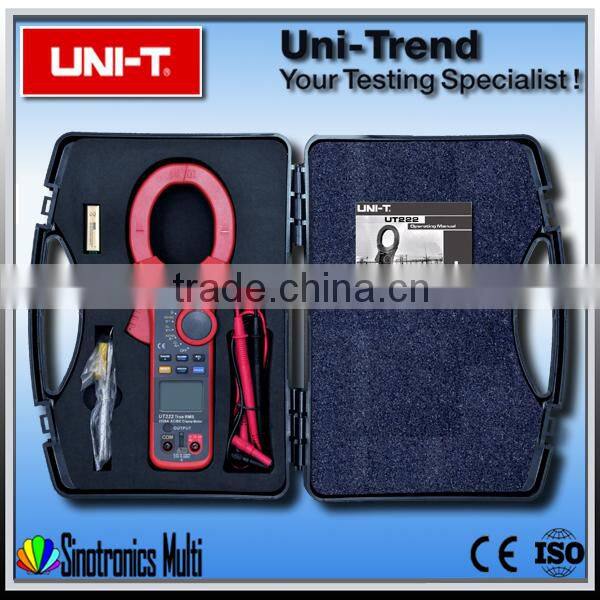

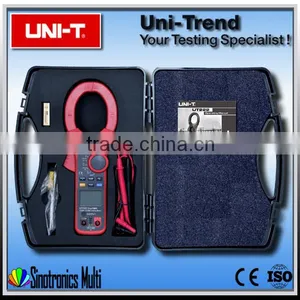

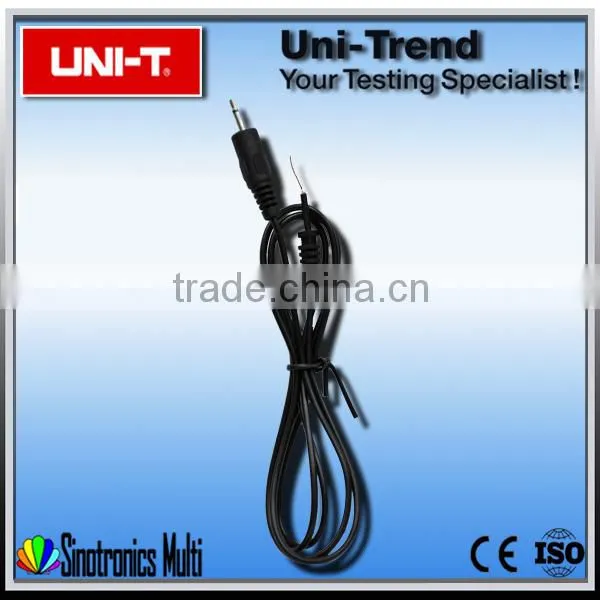

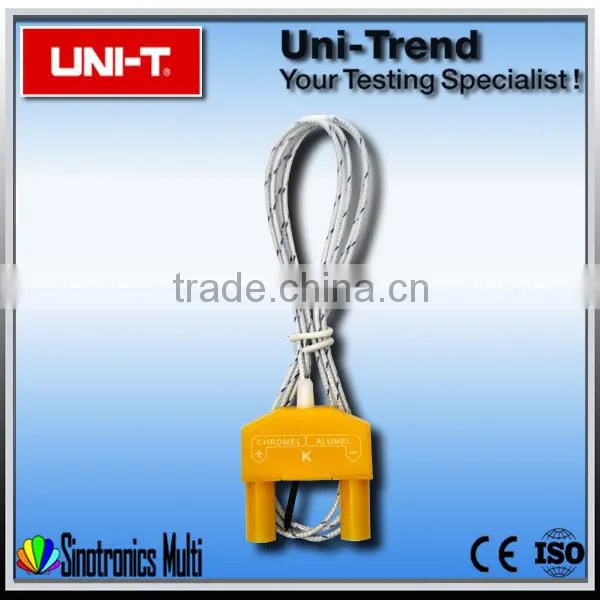

| Standard Accessaries | Test Leads, Output Cable,Tool Box, Thermocouple | |
| Standard Individual Packing | Gift box, English Manual | |
| Standard Quantity Per Carton | 5PCs | |
| Standard Carton Measurement | 510mm×375mm×320mm | |
| Standard Carton Gross Weight | 12Kg | |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
