Best Digital Storage Oscilloscopes UNI-T UTD4102C

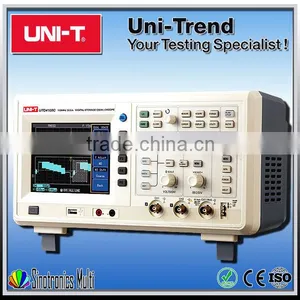

Best Digital Storage Oscilloscopes UNI-T UTD4102C thumbnail-1
Best Digital Storage Oscilloscopes UNI-T UTD4102C photo-1
US$ 502.9 - 528 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UTD4102C
Contact Supplier Request Quote Chat Now
Sinotronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name UNI-T
Model Number UTD4102C
--------------------



Product image

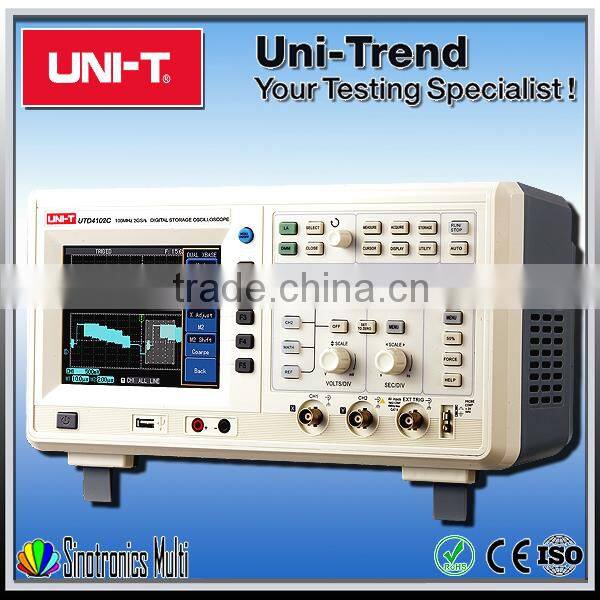

Best Digital Storage Oscilloscopes UNI-T UTD4102C

Product Description

1,2GS/s real-time sampling rate;
2,Dual time base function; unrivaled waveform detail observation and analysis capabilities;
3,16-channel logic analyzer; 3½ digital multimeter;
4,Unique envelop sampling feature with direct visual display of carrier wave details after amplitude modulation;
5,Quick waveform acquisition and colour change function that visually describes the strength of waveform;
6,Supports plug-and-play USB storage devices and capable of communicating with a computer;
7,USB drive system software upgrade;
8,Built-in FFT and Multiple waveform mathematics functions (including add, subtract, multiply and divide);
9,Edge, Video, Pulse Slop and Alternate trigger functions.

Product parameters



Specification UTD4102C
Channels 2
Bandwidth 100MHz
Sample Rate 2GS/s
Rise Time ≤3.5ns
Memory Depth 24kpts
Waveform Acquisition Rate  ≥2,000wfms/s
Vertical Sensitivity 1mV/div~10V/div
Timebase Range 5ns/div~50s/div
Storage Setup, Wave, Bitmap, CSV
Trigger Modes Edge, Pluse, Video, Slope, Alternate, LA
Interface USB Device, USB Host, Pass/Fail, LA Interface, Multimeter Interface
Multimeter Specifications Range Best Accuracy
DC Voltage (V)  400mV, 4V, 40V, 400V ± (1% + 5)
AC Voltage (V) 4V, 40V, 400V ± (1.2% + 5)
DC Current (A) 4mA, 40mA, 400mA, 4A  ± ( 1% + 5)
(External  Convertor) 4A: ± ( 1.5% + 5)
Resistance (Ω) 400Ω, 4kΩ , 40kΩ , 400kΩ , 4MΩ , 40MΩ ± ( 1.5% + 5)
Display Count 4000
Auto Range √
General Characteristic
Power 100-240VAC, 45-440Hz
Display 5.7 Inches 64K Color TFT  LCD,  320×240
Product Color White and Gray
Product Net Weight 3.8 Kg
Product Size  (W×H×D) 337mm × 190mm × 180mm
Standard Accessories Probe×2 (1×,10× switchable), Logic Analyzer Probe, Current-to-Voltage Convertor , Test Leads, Power Cord, USB Cable, PC Software CD
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 2 PCs
Standard Carton Measurement(L×W×H) 540mm × 425mm × 325mm
Standard Carton Cross Weight 13.7 Kg
Optional Accessories*
LAN Port, GPIB Port
