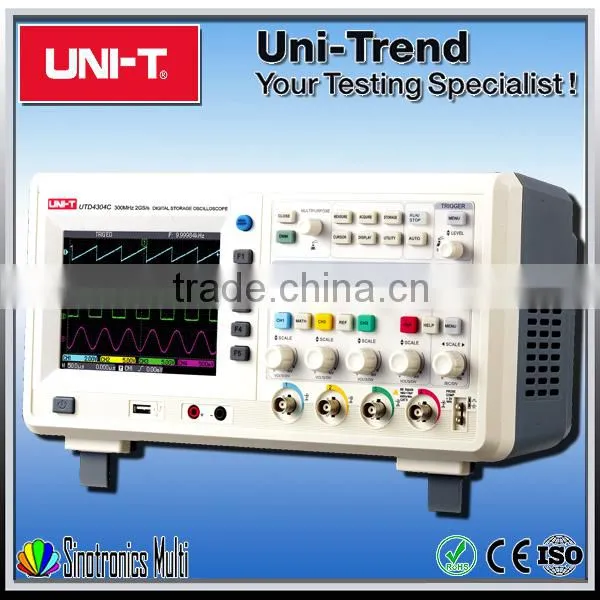

Best Digital Four Channel Storage Oscilloscopes UNI-T UTD4304C
US$ 1,219 - 1,280
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UTD4304C
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Digital Double Channel Oscilloscopes UNI-T UTD4202CMUS$ 713.4 - 749MOQ: 1 Piece -
Best Digital Storage Oscilloscopes UNI-T UTD4302CMUS$ 990.5 - 1,040MOQ: 1 Piece
-
Best Digital Storage Oscilloscopes UNI-T UTD5062CUS$ 2,438.1 - 2,560MOQ: 1 Piece
-
Best Digital Storage Oscilloscopes UNI-T UTD5082CUS$ 2,742.9 - 2,880MOQ: 1 Piece
-
Best Digital Storage Oscilloscopes UNI-T UTD5102CUS$ 3,200 - 3,360MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
UNI-T
Model Number
UTD4304C
--------------------
Product image
Product Description
1,analog channels and 2GS/s real-time sampling rate;
2,Dual time base function; unrivaled waveform detail observation and analysis capabilities;
3,3½ digital multimeter;
4,Supports plug-and-play USB storage devices and capable of communicating with a computer;
5,USB drive system software upgrade;
6,Built-in FFT and Multiple waveform mathematics functions (including add, subtract, multiply and divide);
7,Edge, Video, Pulse Slop and Alternate trigger functions.
Product parameters
| Specification | UTD4304C | |
| Channels | 4 | |
| Bandwidth | 300MHz | |
| Sample Rate | 2GS/s | |
| Rise Time | ≤1.2ns | |
| Memory Depth | 24kpts | |
| Vertical Sensitivity | 2mV/div~5V/div | |
| Timebase Range | 1ns/div~50s/div | |
| Storage | Setup, Wave, Bitmap, CSV | |
| Trigger Modes | Edge, Pluse, Video, Slope, Alternate | |
| Interface | USB Device, USB Host, Multimeter Interface | |
| Multimeter Specifications | Range | Best Accuracy |
| DC Voltage (V) | 400mV, 4V, 40V, 400V | ± (1% + 5) |
| AC Voltage (V) | 4V, 40V, 400V | ± (1.2% + 5) |
| DC Current (A) | 4mA,40mA,400mA, 4A | ± ( 1% + 5) |
| (External Convertor) | 4A: ± ( 1.5% + 5) | |
| Resistance (Ω) | 400Ω, 4kΩ , 40kΩ ,400kΩ , 4MΩ , 40MΩ | ± (1.5% + 5) |
| Display Count | 4000 | |
| Auto Range | √ | |
| General Characteristic | ||
| Power | 100-240VAC, 45-440Hz | |
| Display | 5.7 Inches 64K Color TFT LCD, 320×240 | |
| Product Color | White and Gray | |
| Product Net Weight | 3.8 Kg | |
| Product Size (W×H×D) | 337mm(W) × 190mm(H) × 180mm(D) | |
| Standard Accessories | Probe×4 (1×,10× switchable), Current-to-Voltage Convertor , Test Leads, Power Cord, USB Cable, PC Software CD | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 2 PCs | |
| Standard Carton Measurement (L×W×H) | 540mm(L) × 425mm(W) × 325mm(H) | |
| Standard Carton Cross Weight | 13.7 Kg | |
