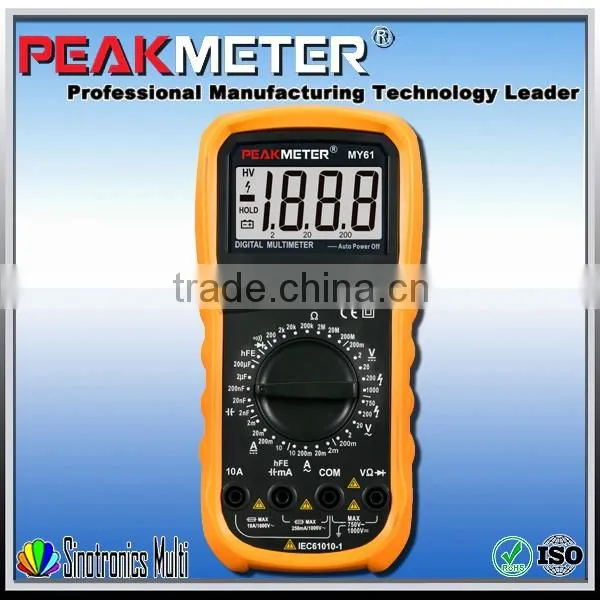

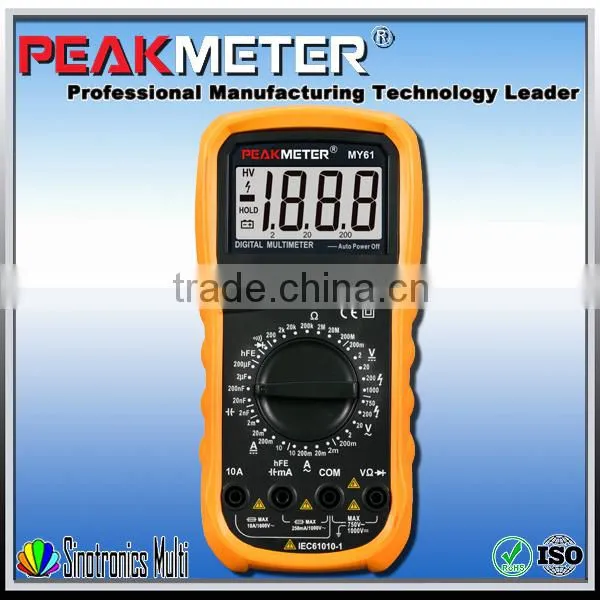

Best Digital Multimeter Peak Meter MY61

Name: Best Digital Multimeter Peak Meter MY61
Brand: peak meter
SKU: 107484883

US$ 10.9 - 11.5 MOQ: 40 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

peak meter

Model Number:

MY61

Sinotronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name peak meter

Model Number MY61

Measuring Current Range 2mA/20mA/200mA/10A

Measuring Voltage Range 200mV/2V/20V/200V/1000V

Measuring Resistance Range 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ

Measuring Capacitance Range 2nF/20nF/200nF/2uF/20uF/200uF

Measuring Inductance Range none

Operating Temperature 0~40℃

Dimensions 190mmx89mmx50mm

best digital multimeter peak meter MY61

Product image

Product parameters

Features
2000 counts display
Data Hold
Auto power off
Low Battery Display
Transistor hFE	0~ 1000
Diode Test	2.7V
Continuity Buzzer	<50Ω
Power supply	9V6F22 Battery
Weight Approx	380g
Size	190mmx89mmx50mm

Specifications
DC Voltage	200mV/2V/20V/200V	±(0.5%+3)
DC Voltage	1000V	±(0.8%+3)
AC Voltage	200mV	±(1.2% +3)
	2V/20V/200V	±(0.8% +3)
	750V	±(1.2% +3)
DC Current	20µA	±(2.0% +5)
	200µA	±(0.8% +3)
	2mA/20mA/200mA	±(1.5% +1)
	10A	±(2.0% +5)
AC Current	200µA /2mA/20mA/200mA	±(1.8 % +5)
AC Current	10A	±(3.0 % +5)
Resistance	200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ	±(0.8% +3)
	20MΩ	±(1.0% +5)
	200MΩ	±(6.0% +10)
Capacitance	2nF/20nF/200nF/2µF/20µF	±(4.0%+3)
Capacitance	200µF	±(6.0%+10)
Accessories
Dedicated multifunction test socket MS3204		One piece
User's manual		One piece

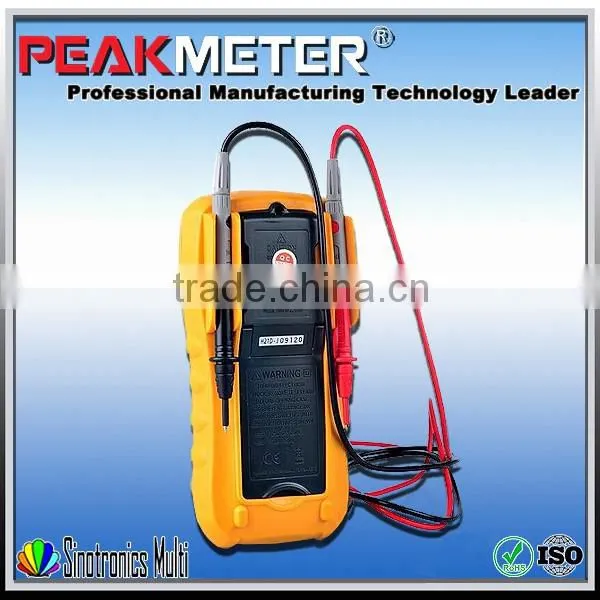

Test lead		One set
Gift box		One piece

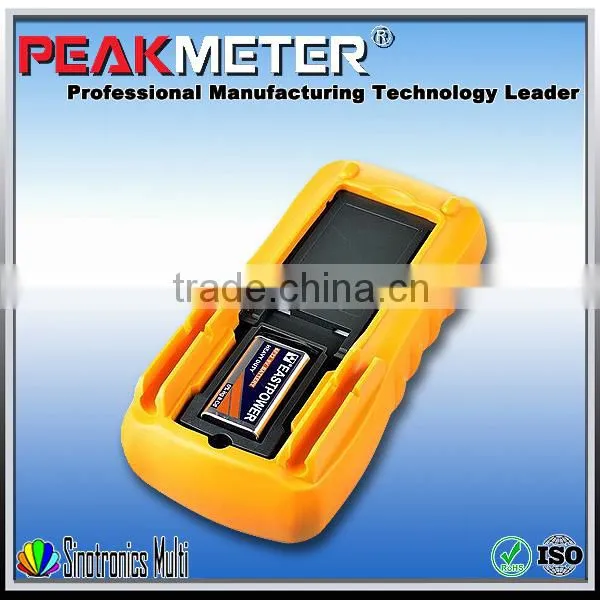

9 volt battery		One piece
