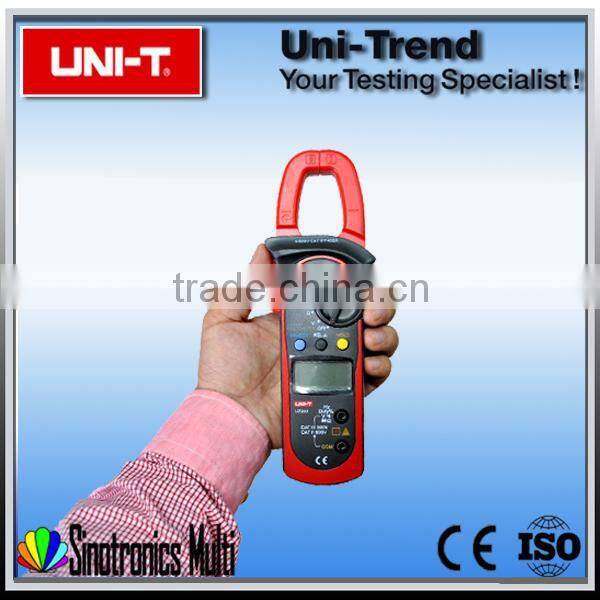

The latest Handheld UNI-T multimeter UT203
USD $19 - $21
/ Piece
40 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- SHANGHAI NINGBO
You May Like
-
Acrel PZ48-AI/C Single phase current meter LED display with RS485 Modbus-RTU communication
-
panel mountable type DC ammeter AMC72-DI/C input DC0-5A LED display digital DC ammeter
-
Acrel PZ72-AI/J smart ammeter with Alarm out over/under current
-
Acrel AC Three-phase Voltmeter LCD display digital Voltage Meter with RS485 modbus
-
Single-phase AC Digital Ammeter AMC72-AI LED Display Input: AC 1A or 5A
-
complete set of impulse current generator
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UT203 |
| Display Type: | Analog and Digital | Measuring Range: | 40A/400A | Accuracy Class: | 0.5% (+ /-2) |
| Supply Voltage: | 9V Battery(6F22) | Operating Temperature: | 0℃~40℃ | Dimensions: | 35.6 * 18mm |
Product Description
Product Overviews
Product image
Product Description
UT200 AC / DC digital clamp meter, with AC and DC voltage, DC current, resistance, capacitance, frequency, temperature, connected and the function of diode measurement, is a full range of overload protection circuit, complete functions, excellent performance of electronic / electrical meter.
Product parameters
| Specifications | Range | Best Accuracy |
| Model | UT203 | |
| AC Current (A) | 40A/400A | ±(2.5%+5) |
| DC Current (A) | 40A/400A | ±(2%+3) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Features | ||
| Display Count | 3999 | |
| Auto Range | √ | |
| Jaw Capacity | 28mm | |
| Duty Cycle | 0.1%~99.9% | √ |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| Setup | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 35.6X 18mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 260g | |
| Product Size | 208mm X 76mm X30 mm | |

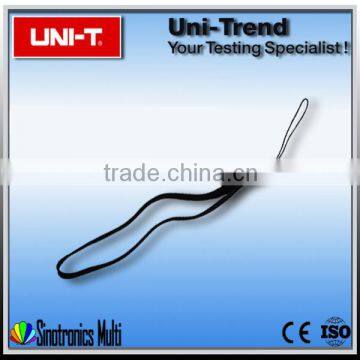

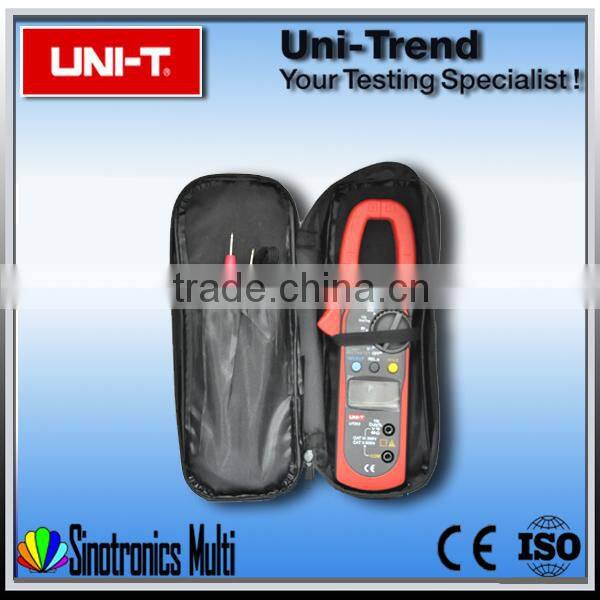

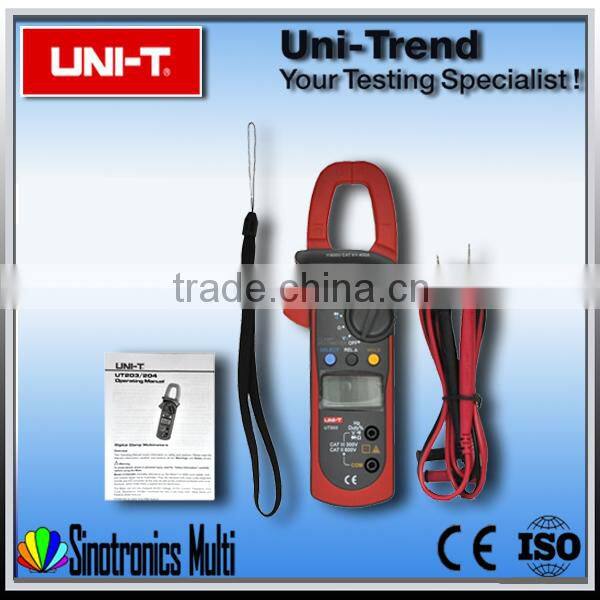

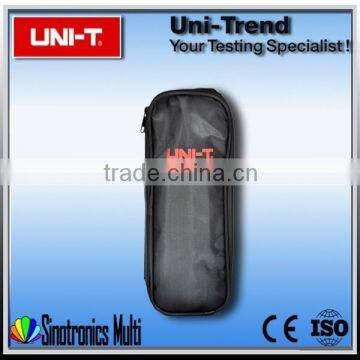

| Standard Accessories | Battery, Test Lead,Carrying Bag | |

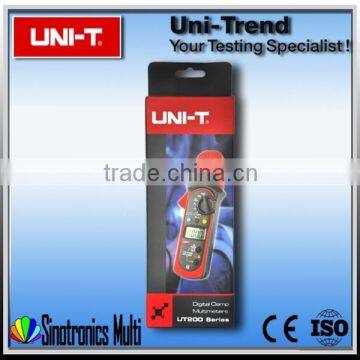

| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 540mm X 495mm X 335mm (0.09 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 25Kg | |
