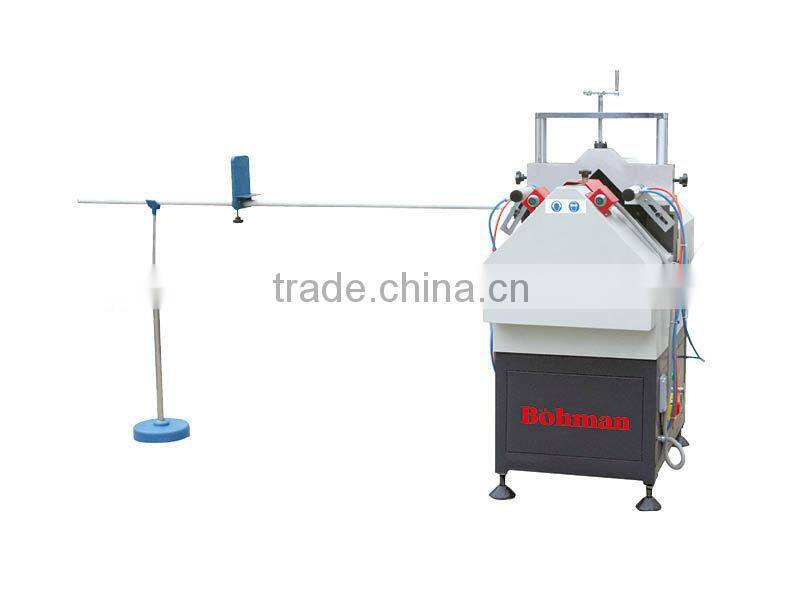

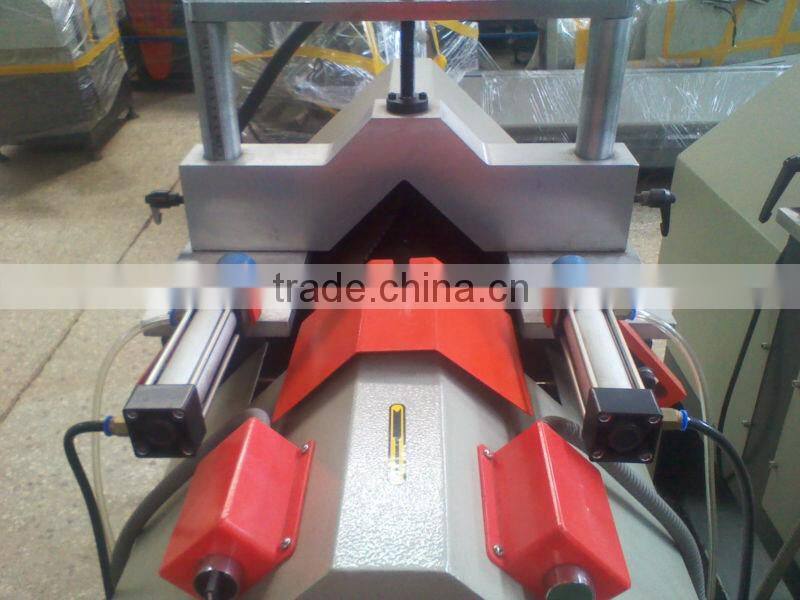

Upvc Windows and Door Machinery / V Notch Cutting Machine
US$ 1,000 - 2,100
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Bohman
Model Number:
LJVW-60
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mullion Cutting Saw for Pvc ProfilesUS$ 1,000 - 2,000MOQ: 1 Set -
Horizontal Combination Drilling Machine for Aluminum and Pvc ProfilesUS$ 3,400 - 6,500MOQ: 1 Set
-
SQJ05-120 V Notch Cleaning MachineNegotiableMOQ: 1 Set
-
SZL-01 Lock Hole Slot MachineNegotiableMOQ: 1 Set
-
LXCZ2 Double-head Sink Milling for Aluminum Plastic ProfilesNegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Bohman
Model Number
LJVW-60
Rated Power
2*0.75 kw
Weight
200 kg
Specifications
Upvc Windows and Door Machinery / V Notch Cutting Machine1. producing PVC & Alu profiles
2. two head cutting saw in 45 grade
V Notch Machine / V Notch Cutting Machine
1. Equipmeng Features
- Processing the PVC and aluminum profiles
- To process the 90 grade V shape grooves of the win-door.
- Two-head cutting saw in 45 grade mutually.
- Both hand concurrent operation button, ensures the operator safety.
| Input Power Source | 380V 50Hz |
| Total Power | 2*0.75 kw |
| Working Air Pressure | 0.4-0.6 Mpa |
| Air Consumption | 80 L/min |
| Diameter of Saw | 300 mm |
| Principal Axis Rotate Speed | 2800 r/min |
| Max. Cutting Width | 120 mm |
| Max. Cutting Height | 0-60 mm |
| Cutting Length | 300-1600 mm |
| Dimension | 2560*1260*1350 mm |
| Weight | 200 kg |
