CHINA best gypsum block production line
The introduction of product process

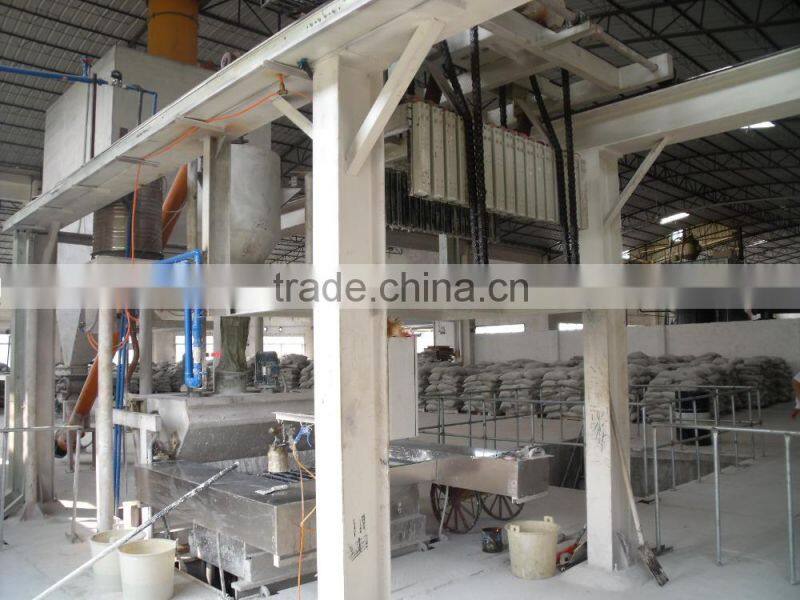

1.As the main materials, gypsum powder is transported to dosing system by screw conveyor and then it flow into mixer after dosing system weighs gypsum powder each time.

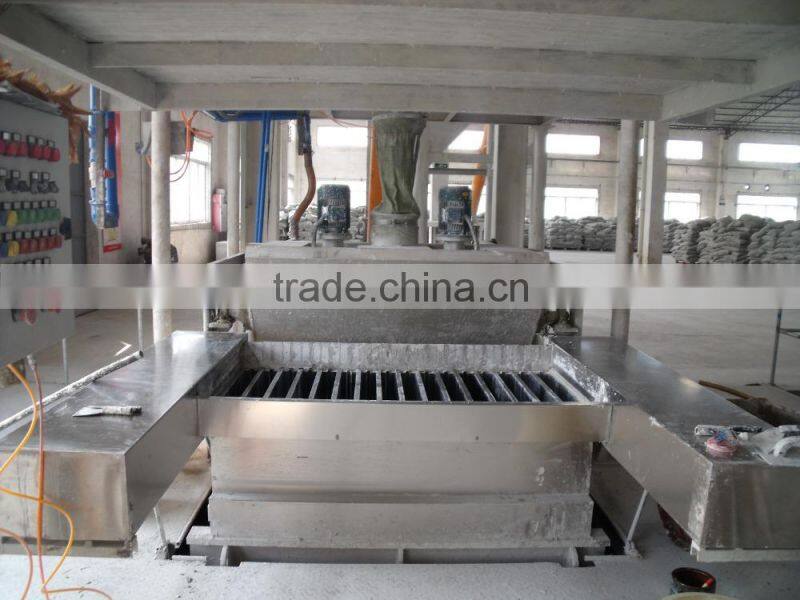

2.Inside the mixer, certain amount of water and other admixture are agitated and become slurry, the slurry is then poured into mould cavity of forming machine.

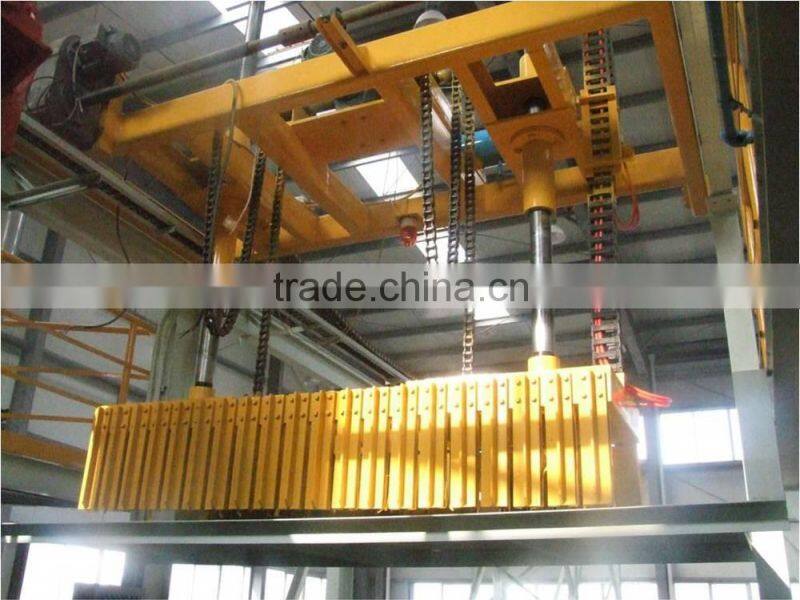

3.After initail seting time, top tenon of a block is cleaned with the help of slurry scratching device, after setting final setting, hydraulic lifting device will push the formed gypsum block from mould cavity, a full-automatic pneumatic clamp will take blocks onto trolleys.

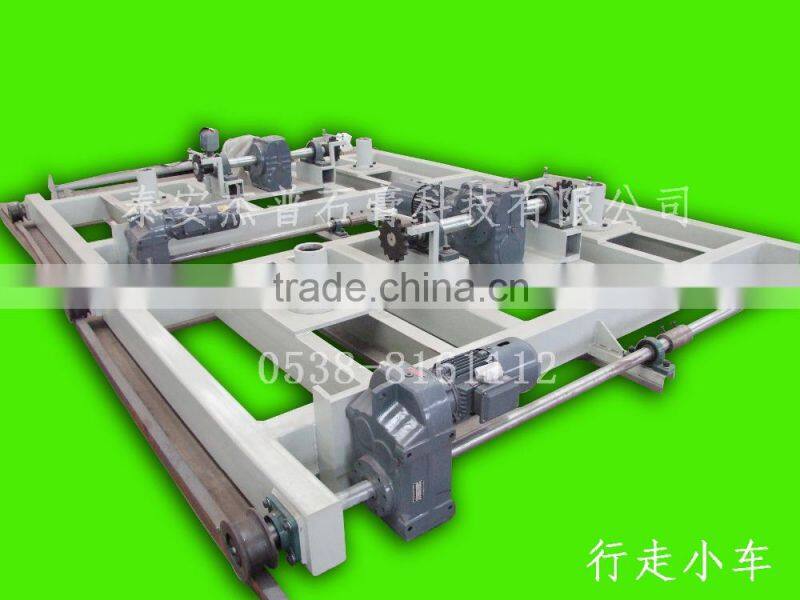

4.Then trolleys are moved to change its transport direction through zoon 1,. and pushed into drying kiln for drying the wet gypsum block,
5.After those blocks become dry, then are moved to the unloading clamp through direction changing zone 2, where packed and sent to storage area, the empty trolleys are then moved back.
Production techniques program
1, Specification: 666*500*100(length * width * thickness)
hollow rate: 32%
2, Property:
sound insulation: 40.5 Db
Fire-resistance performance: 186 min
Flatness: 0.5mm/m2
Bending strength: =4.0
3,Capacity design
The production line is with 106 hollow block unit.
6 batch/hour
24hour/day
300day/year
230000m2 /year
4, Quality
It can meet or exceed the standard of < gypsum block
Plaster block production line
The production gypsum block meet the national standard JC/T698-1998) and the requirement in detail as follows
NO. | term | unit | index |
1 | length | mm | 666±5 |
2 | wideth | mm | 500±2 |
3 | thickness | mm | 100±0.5 |
4 | Hollow ration |
| ≥30% |
5 | Compression 2h(as the basic of raw material) | Mpa | 1.7 |
6 | Compression 2h(as the basic of raw material) | Mpa | 3.5 |
