Specifications
Copy-routing Milling Machine for Aluminum Win-door1.Double Axis Copie Router fro Alu win-door
2.made up of two milling head
Aluminum Profile Copy Router Machine
Double Axis Copie Router For Aluminum Win-doors

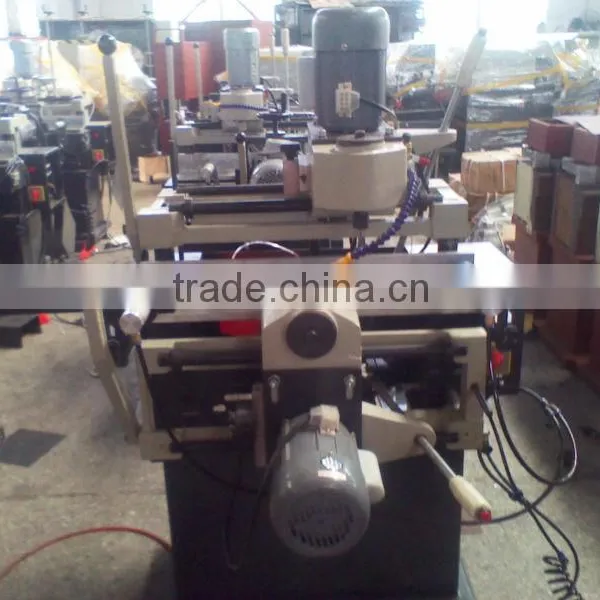

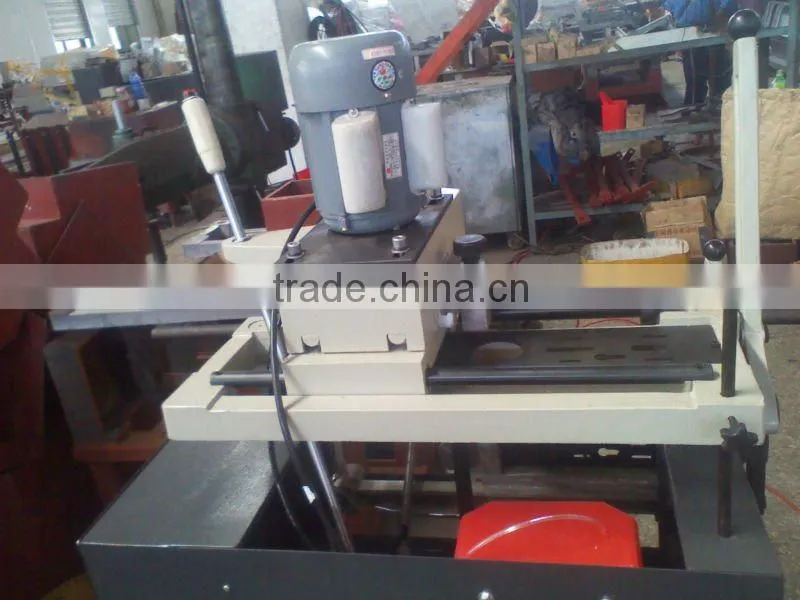

Copy-routing Milling Machine for Aluminum Win-door
1. Contact Information
Alice Meng
86-13953166178
bohman_alice-----yahoo------cn
2. Main specification and technical parameter
Input power source |
380V 50Hz |
Total power |
2*0.75Kw |
Working air pressure |
0.4-0.6Mpa |
Air consumption |
100L/min |
Milling cutter diameter |
φ5mm. φ8mm |
Milling cutter rotated speed |
12000r/min |
Copy routing scope |
290*90mm |
Dimension |
1100*950*1500mm |
Weight |
250Kg |
3. The features of equipment
- It is used for processing water slot,pulley groove,lock-hole,hardware hole and all of other froove of PVC and aluminum windows and doors.
- It is made up of two milling head in vertical and horizontal directions which can work continuously one impact so that ensure the accurate location between the holes and grooves and improve the efficiency.
- The standard mold board to control the size of the holes shape,the milling scale is 1:1.
- Be equipped with high speedy copy routing milling head to ensure the milling precision.
- The double step copy-routing needle design suitable for different size of the holes.
- It can processing different grooves controlled through the ruler.
4. Our Enterprise mission
Targeting the high,fine ,excellent products,and developing new products constantly to meet customer needs.
Our goal is relying on the science and technology ,aiming at domestic and foreign markets.Customer needs is our direction,customer satisfaction is our service tenet.We sincerely look forward to your cooperation.
