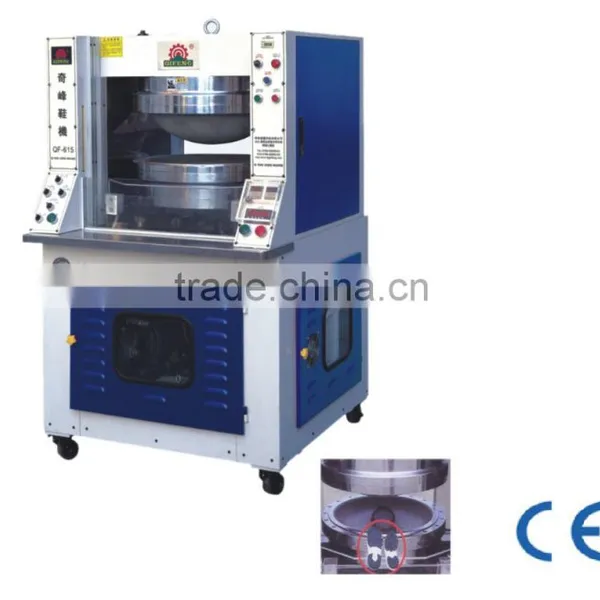

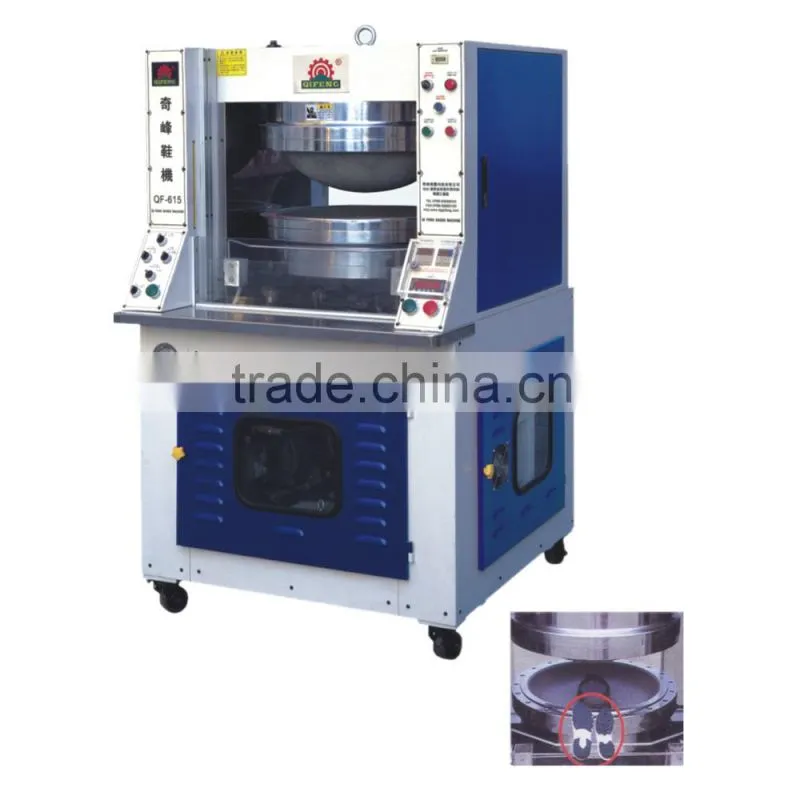

QF - 615(5000/600) Fully-automatic Sole pressing machine about shoe making machine
1. The newest outer sole pressing machine with hydraulic system can adjust pressure according to different type out-sole, average pressure is more than 6kg/cm2.
2.Unnecessary to use mould, to saving the cost.
3.Make machine according to CE standard, equipped with safety switch, photo sensor and emergency push button erc,. keep it enough safe.
4.The machine can do several pairs out-sole at the same time, improve machine capacity.
Model |
Working range |
Production |
Work oil |
N.W |
Machine size |
Pressure |
Power |
QF-615(500) |
450mm |
2400/8H |
Hydrolysis oil |
1100kg |
860*930*1600mm |
0-30kg |
3HP |
QF-615(600) |
550mm |
3200/8H |
Hydrolysis oil |
1350kg |
950*980*1580mm |
0-30kg |
3HP |
QF - 615(5000/600) Fully-automatic Sole pressing machine about shoe making machine
QF - 615(5000/600) Fully-automatic Sole pressing machine about shoe making machine
