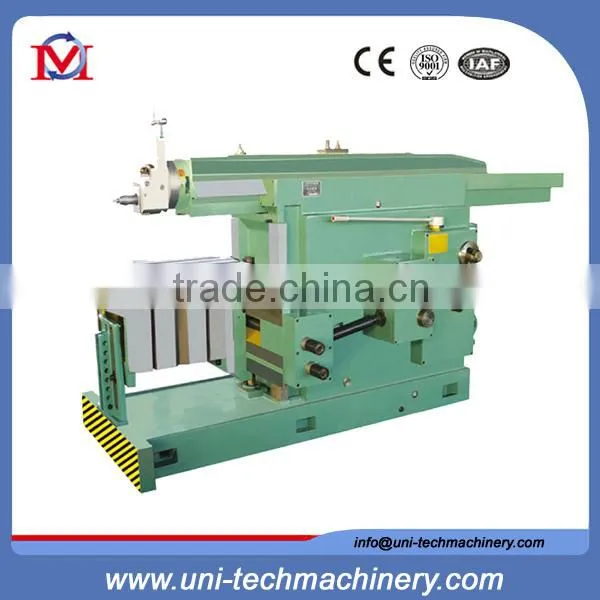

BC60100 Hydraulic slot shaping machine
Main Features:
Shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves . Its five characteristics:
1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; for planning the inclined plane, thereby expanding the scope of use.
2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.
4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.
Main specifications of BC60100 Hydraulic slot shaping machine
| Model | BC6085 | BC60100 | ||
| Maximum cutting length(mm) | 850 | 1000 | ||
| Maximum table horizontal travel(mm) | 400 | 800 | ||
| Maximum distance from ram bottom to table surface(mm) | 710 | 400 | ||
| Maximum table vertical travel(mm) | 360 | 380 | ||
| Dimensions of table top surface(L×W)(mm) | 800X450 | 1000×500 | ||
| T ravel of tool head(mm) | 160 | 160 | ||
| Swivel of tool head(°) | ±60° | ±60° | ||
| Maximum size of tool shank(W×T)(mm) | / | 30×45 | ||
| Number of ram strokes per minute | 17,24,35,50,70,100 | 15,20,29,42,58,83 | ||
| Range of table power feed | horizontal | 0.25~3 | horizontalvertical | 0.3~3 |
| vertical | 0.12~1.5 | 0.15~0.5 | ||
| Rapid feed of table | horizontel(mm/min) | 3 | horizontalvertical | 3 |
| vertical (mm/min) | 1.5 | 0.5 | ||
| Width of central T-slot of table(mm) | 22 | 22 | ||
| Power of motor(kw) | 5.5 | 7.5 | ||
| Overall dimensions(L×W×H)(mm) | 2950x1325x1693 | 3640×1575×1780 | ||
| Weight(kg) | 2940/3090 | 4600/4800 | ||
1.Transmission belt
2.Inner hexagon spanner
3.Inner hexagon spanner
4.Crank handle
5.Spanner
6.Spanner
7.Oil gun
8.Foundation Bolts
9.Random Technical
10.Document
11.User Manual
Machine vice
