Specifications
High Precision Automatic Electric Shear Press Brake and Slip Rolling Machine1) CE standard.
2) ISO
3)electric type

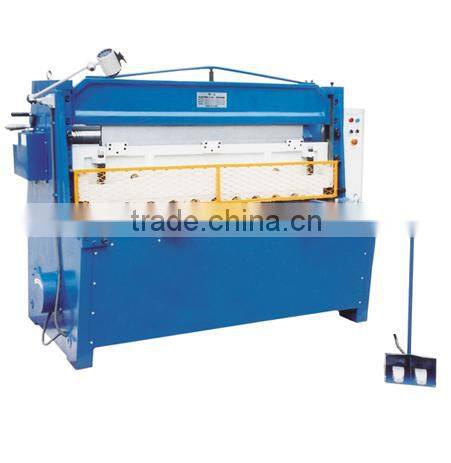

High Precision Automatic Electric Shear Press Brake and Slip Rolling Machine
*Combination of shear , brake&roll.
*For shearing, lt can achieve single stroke and continuous stroke processing function.
*For bending, there are three function : Jogging single stroke and continuous stroke.
*For rolling there are two function; Jogging and continuous stroke.
*This machine is the ideal equipment for sheett-metal working.
Technical Parameters:
Model | E3-IN-1/1320 | E3-IN-1/2040 |
Max Shearing thickness(mm) | 3 | 3 |
Max shearing width(mm) | 1320 | 2040 |
Shearing angle | 2° | 2.5° |
Number of stroke(per min) | 30 | 30 |
Back-gauge range(mm) | 450 | 450 |
Height of worktable(mm) | 760 | 760 |
Max bending thickness(mm) | 2 | 2 |
Max bending width(mm) | 1320 | 2040 |
Max rolling thickness(mm) | 3 | 3 |
Max rolling width(mm) | 1500 | 2100 |
Min rolling dia(mm) | 90 | 120 |
Motor power(kw) | 3 | 4 |
N.W./G.W.(kg) | 2300/2800 | 3500/3800 |
Packing size(cm) | 254X145X197 | 326X145X197 |
Product Detail
High Precision Automatic Electric Shear Press Brake and Slip Rolling Machine
Wooden case, no need fumigation,plastic cover inside
TENZGHOU UNI-TECH CO.LTD
Companies have their own independent processing factory, with the international well-known brands, product sales all over the world.
High Precision Automatic Electric Shear Press Brake and Slip Rolling Machine
PAYMENTS: 1.TT 30% advance payment product,pay the balance before delivery.
2.LC at sight.
COLOR, VOLOTAGE, POWER according to the client's requirement .
If you have any questions, please contact me.
