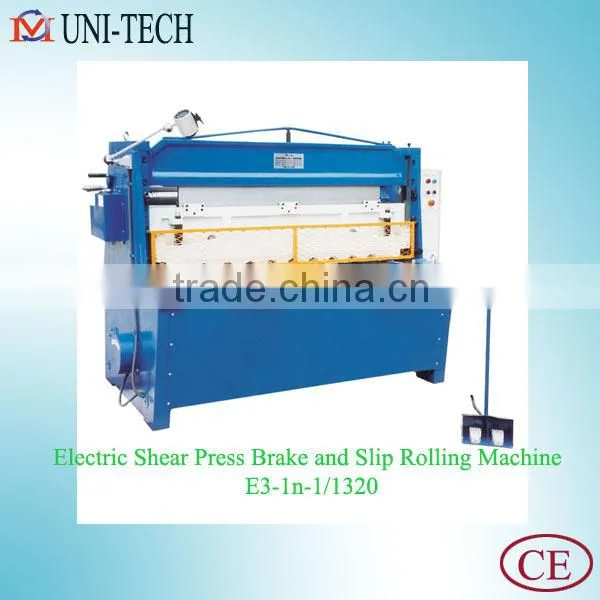

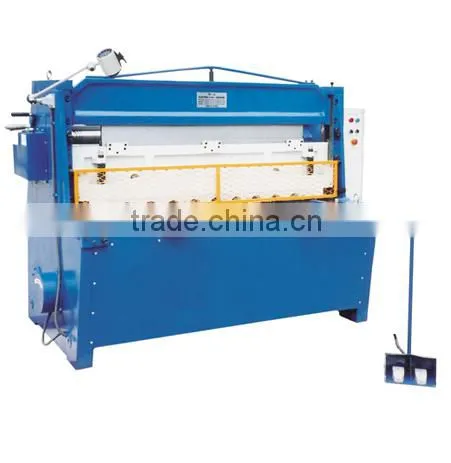

E3-1N-1 Multi-function Electric Shear Press Brake and Slip Rolling Machine

Specifications

E3-1N-1Multi-function Electric Shear Press Brake and Slip Rolling Machine
1) CE standard.
2) ISO
3)electric type

Multi-function  Electric Shear Press Brake and Slip Rolling Machine

*Combination of shear , brake&roll.

*For shearing, lt can achieve single stroke and continuous stroke processing function.

*For bending, there are three function : Jogging single stroke and continuous stroke.

*For rolling there are two function; Jogging and continuous stroke.

*This machine is the ideal equipment for sheett-metal working.

Technical Parameters:



Model	E3-IN-1/1320	E3-IN-1/2040
Max Shearing thickness(mm)	3	3
Max shearing width(mm)	1320	2040
Shearing angle	2°	2.5°
Number of stroke(per min)	30	30
Back-gauge range(mm)	450	450
Height of worktable(mm)	760	760
Max bending thickness(mm)	2	2
Max bending width(mm)	1320	2040
Max rolling thickness(mm)	3	3
Max rolling width(mm)	1500	2100
Min rolling dia(mm)	90	120
Motor power(kw)	3	4
N.W./G.W.(kg)	2300/2800	3500/3800
Packing size(cm)	254X145X197	326X145X197

Product  Detail

Multi-function  Electric Shear Press Brake and Slip Rolling Machine

Wooden case, no need fumigation,plastic cover inside
