Paver Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Split tile
Brick Raw Material:
Clay
Processing:
Brick Production Line
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiangtan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solid Block Making MachineUS$ 888 - 8,888MOQ: 1 Set -
Paving Block Making MachineUS$ 888 - 8,888MOQ: 1 Set
-
Automatic Clay Roof Tile Production LineUS$ 200,000 - 1,000,000MOQ: 1 Set
-
Roof Tile Production LineUS$ 200,000 - 1,000,000MOQ: 1 Set
-
Aluminum Ceramic Ball Press MachineUS$ 10,000 - 18,000MOQ: 1 Set
Type
Other, Split tile
Brick Raw Material
Clay
Processing
Brick Production Line
Method
Vacuum Extruder
Automatic
Yes
Capacity
4-6T/H
Place of Origin
Hunan, China
Brand Name
Weida
Model Number
TCJ350
Power
55
Specifications
1.clay paver making2. 4-6T/H
3. 55Kw

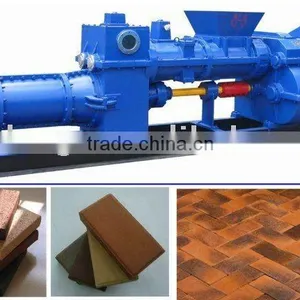

TCJ 350 vacuum extruder is our patent prodcut, used to produce clay paver. It also could used for ceramic pipe, hollow brick,ceramic thin board extruding.
The machine is equipped with vacuum pump to removes the air from the clay, improve the plastic and elastic of clay. The R. P. M of mixing auger and extruding auger is driven by variable frequency variable speed motor respectively, the R. P. M is adjustable per your production's requirement.
The machine have been widly used in most of all China roof tile,split tile manufacture, it have been proved its good quality, performance even more than developed country's.
| Data | Variable |
| Capacity | 4-6t/h |
| Diameter of extruding screw | 350mm |
| Pressure of extudsion | ≥3MPa(adjustable) |
| air clutch working press | 0.5-0.8MPa |
| Vacuum degree | 98kpa |
| Motor power | 55kw |
| Overall size | About 4566×1950×1413mm |
| Net weight | 7000kg |
