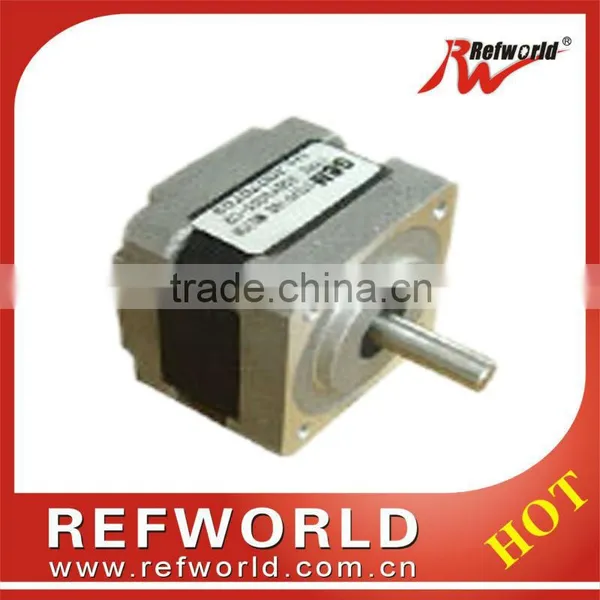

Hybrid Stepper Motors

Hybrid Stepper Motors thumbnail-1
Hybrid Stepper Motors photo-1
US$ 1 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REFWORLD
Model Number:
RW-35BYG
Contact Supplier Request Quote Chat Now
Ningbo Refworld Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name REFWORLD
Model Number RW-35BYG
Type Hybrid
Step Angle(degrees) 1.8°±5%

Hybrid stepper motors

About us







About product



Technical Features

 Stepping angle:1.8°±5%

Operating temperature:-25~45°C

Temperature rise:80°C Max



Insulation strength:550V 50HZ  5mA 1min



Insulation Resistant:500V DC 100MΩ Min



Radial Play:0.02mm Max



End Play:0.1-0.3mm





Specification



Model Voltage
(V)		 Current
(A)		 Res.
(Ω)		 Holding Torque
(kg.cm)		 Weight

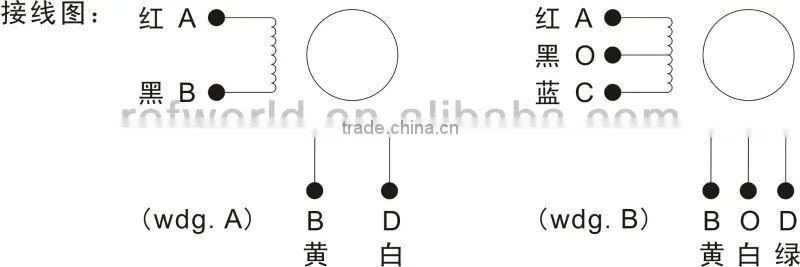

(kg)		 FIGURE Wiring
diagram

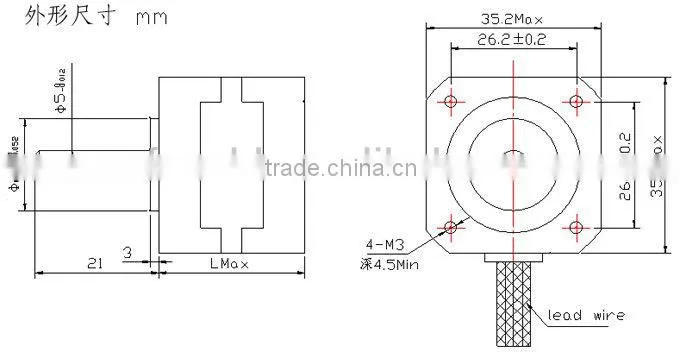

L0
(mm)		 L1
(mm)
RW-35BYG011 9.6 0.4 24 0.5 0.1 20 21 wdg.A
RW-35BYG202 3.2 0.8 4.5 0.9 0.12 26.2 21 wdg.A
RW-35BYG205 12 0.25 45 0.5 0.12 26.2 21 wdg.A
RW-35BYG206 3.5 0.8 4.3 1 0.12 26.2 21 wdg.A
RW-35BYG208 3 0.75 4 0.7 0.12 26.2 21 wdg.A
RW-35BYG305 12 0.5 20 1 0.13 28.2 21 wdg.A
RW-35BYG307 15 0.4 30 0.7 0.2 28.2 21 wdg.A
RW-35BYG310 11.5 0.19 60 0.8 0.13 28.2 21 wdg.A
RW-35BYG409 7.8 0.32 23 1.4 0.2 29.2 21 wdg.A
RW-35BYG411 1.6 1.6 1 0.9 0.2 29.2 21 wdg.A
RW-35BYG505 12 0.3 35 1.4 0.2 31 21 wdg.A
RW-35BYG506 5.4 0.8 6.8 2 0.2 31 21 wdg.A
RW-35BYG602 9 0.25 36 1 0.2 31 21 wdg.A





 Hybrid stepper motors

Hybrid stepper motors







Other  motor  we  supply





Hybrid stepper motors





Welcome to contact us







Hybrid stepper motors
