High Torque 42mm Hybrid Stepper Motor
US$ 1 - 4
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REFWORLD
Model Number:
RW-39HY
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Motor for Food ProcessingUS$ 1 - 5MOQ: 100 Pieces -
Automatic Switch P-P -12v 24v 60w 5L/M Portable Small Electric 24v dc Water Pump With Automatic Pressure ControlUS$ 1 - 30MOQ: 100 Pieces
-
RW-AF-series Cooling Axial Fan MotorNegotiableMOQ: 50 Pieces
-
RW-STC-8080H Temperature ControllerUS$ 1 - 20MOQ: 50 Units
-
Single Phase Motor Price for Range HoodNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
REFWORLD
Model Number
RW-39HY
Step Angle(degrees)
±5%
High Torque 42mm Hybrid Stepper Motor
About us
About product
Technical Features
Step angle accuracy :±5%
Ambient Temperature:-10°C~40°C
Temperature: 80K
Insulation Resistance:100M0hm min 500VDC
Insulation Class: B
Specification
| Model | Length | No.of Leads | Holdingtorque | Voltace | Current | Resistance | Inductance | Detenttorque | Weight |
| (mm) | (NO) | (Kg.cm) | (V) | (A) | (Ω) | (mH) | (g.cm) | (Kg) | |
| RW-39HY0101 | 20 | 4 | 1 | 12 | 0.48 | 25 | 26 | 50 | 0.12 |
| RW-39HY2101 | 25 | 4 | 1.2 | 8 | 0.53 | 15 | 15 | 120 | 0.18 |
| RW-39HY4002 | 34 | 6 | 1.3 | 12.3 | 0.28 | 44 | 21 | 150 | 0.2 |
| RW-39HY5002 | 38 | 6 | 2 | 6 | 0.8 | 7.5 | 7 | 150 | 0.22 |

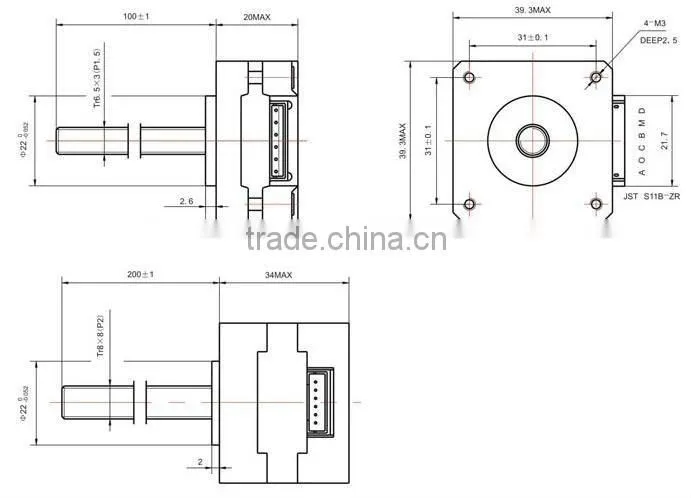

Figure Dimension
Wiring Diamgram
Other motor we supply
Welcome to contact us
