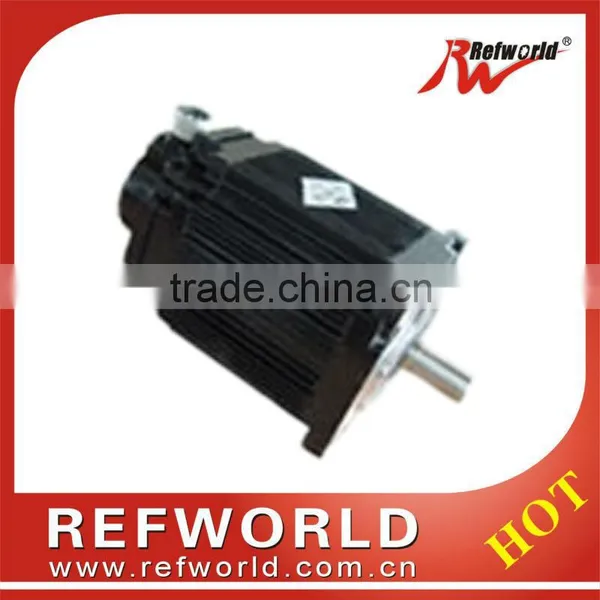

110mm 1.8Degree Enhanced Hybrid Stepper Motor (MP110YG Series)
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
REFWORLD
Model Number:
RW-110BYG
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Cable/h05vv-f 3g1.5mm2 Power Cords/Australian Power Cords/1.5mm Pvc Insulated Electric CableUS$ 1 - 2MOQ: 100 Meters -
22mm to 110mm Brushed Electric dc Motor, 12v 24v Upto 220vdcUS$ 1 - 3MOQ: 100 Pieces
-
High Torque 42mm Hybrid Stepper MotorUS$ 1 - 4MOQ: 100 Pieces
-
AC Motor for Food ProcessingUS$ 1 - 5MOQ: 100 Pieces
-
Automatic Switch P-P -12v 24v 60w 5L/M Portable Small Electric 24v dc Water Pump With Automatic Pressure ControlUS$ 1 - 30MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
REFWORLD
Model Number
RW-110BYG
Type
Hybrid
Step Angle(degrees)
1.8°±5%

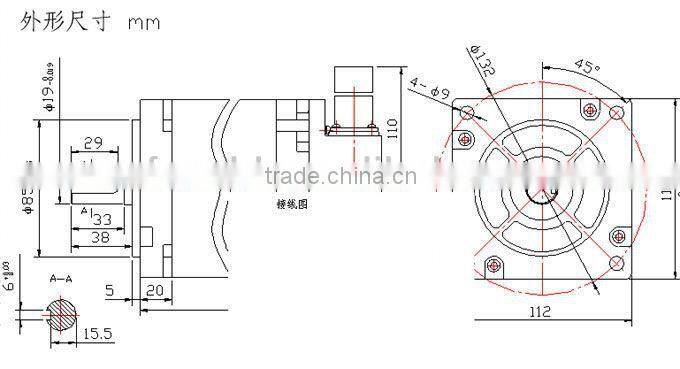

110mm 1.8Degree Enhanced Hybrid Stepper Motor (MP110YG series)
About us
About product
Technical Features
Stepping angle:1.8°±5%
Ambient temperature:20°C~50°C
Temperature rise:80°C Max
Insulation strength:550V 50HZ 5mA 1min
Insulation Resistant:500V DC 100MΩ Min
Radial Play:0.02mm Max
End Play:0.1-0.3mm
Specification
| Model | Voltage (V) |
Current (A) |
Res. (Ω) |
Holding Torque (kg.cm) |
Rotor inetia (g.cm2) |
Weight (kg) |

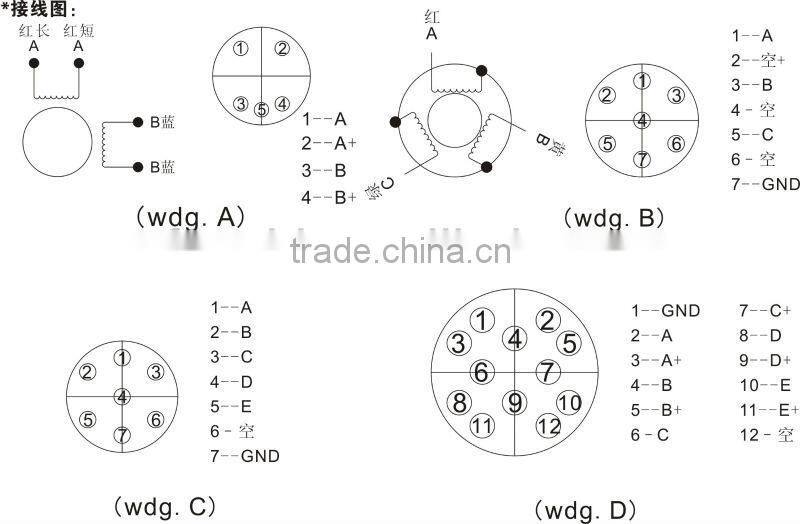

Wiring diagram |
| RW-110BYG550A | 130 | 3 | 0.5 | 68 | 7.5 | a | 192 |
| RW-110BYG550B | 130 | 3 | 0.62 | 103 | 11.5 | a | 240 |
| RW-110BYG450 | 80~200 | 6 | 0.22 | 71 | 7.5 | a | 192 |
| RW-110BYG450A | 80~200 | 6 | 0.3 | 103 | 11.5 | a | 240 |
