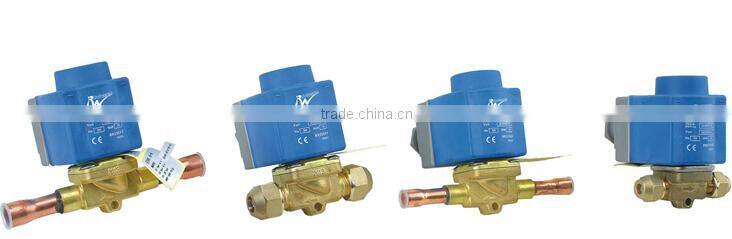

BLR/EVR New diaphragm water solenoid valve
General Description
BLR/EVR valves is a normally closed, direct or servo operated solenoid valve for liquid, suction and hot gas lines with fluorinated refrigerants. BLR/EVR valves are supplied complete or as separate components, i.e. valve body, coil and flanges
Feature
Ambient Temp.:-40 to +80℃
Voltage Allowable Range:+10 to +15℃
Coil Waterproof Level:IP 65
Medium Temp.:-40 to +105℃
Max.Working Temp.:3.5Mpa
CFC,HCFC,HFC Refrigerant
Complete range of solenoid valves for refrigeration,freezing and air conditioning plant
Wide choice of coils for A.C and D.C.
Suitable for all fluorinated refrigerants.
Extended ends for soldering make installation easy.It is not necessary to dismantle the valve when soldering in.
It is also available with flange connection
Copper connection size 1/4" through 2-1/8"

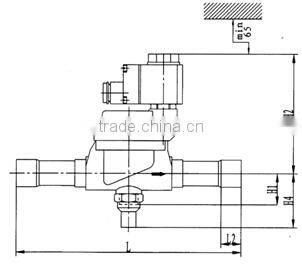

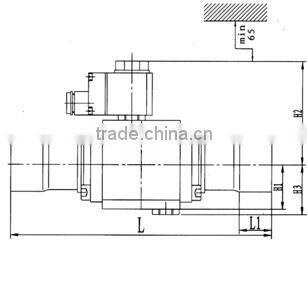

| Technical Data | |||||||||||||
| Model | Connection | H1 | H2 | H4 | L | L2 | KV Factor (m³/h) | ||||||
| Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | ||
| BLR/EVR3-014 | 1/4 | 6 | 0.5 | 14 | 2.8 | 71 | - | - | 4.0 | 102 | 0.3 | 7 | 0.27 |
| BLR/EVR3-038 | 3/8 | 10 | 0.5 | 14 | 2.9 | 73 | - | - | 4.6 | 117 | 0.4 | 10 | |
| BLR/EVR6-038 | 3/8 | 10 | 0.5 | 14 | 3.1 | 79 | - | - | 4.4 | 111 | 0.4 | 10 | 0.8 |
| BLR/EVR6-012 | 1/2 | 12.8 | 0.5 | 14 | 3.1 | 79 | - | - | 5.0 | 127 | 0.4 | 10 | |
| BLR/EVR10-012 | 1/2 | 12.8 | 0.6 | 16 | 3.1 | 79 | - | - | 5.0 | 127 | 0.4 | 10 | 1.9 |
| BLR/EVR10-058 | 5/8 | 16 | 0.6 | 16 | 3.1 | 79 | - | - | 6.3 | 160 | 0.5 | 12 | |
| BLR/EVR15-058 | 5/8 | 16 | 0.7 | 19 | 3.4 | 86 | - | - | 6.9 | 176 | 0.5 | 12 | 2.6 |
| BLR/EVR15-078 | 7/8 | 22 | 0.7 | 19 | 3.4 | 86 | - | - | 6.9 | 176 | 0.7 | 17 | |
| BLR/EVR20-078 | 7/8 | 22 | 0.8 | 20 | 3.5 | 90 | - | - | 7.5 | 191 | 0.7 | 17 | 5 |
| BLR/EVR20-118 | 1 1/8 | 28.8 | 0.8 | 20 | 3.5 | 90 | - | - | 8.4 | 214 | 0.8 | 22 | |
| BLR/EVR22-138 | 1 3/8 | 35 | 0.8 | 20 | 3.5 | 90 | - | - | 11.1 | 281 | 1 | 25 | 6 |
| BLR/EVR25-118 | 1 1/8 | 28.8 | 1.5 | 38 | 5.4 | 138 | 2.8 | 72 | 10.0 | 256 | 0.8 | 22 | 10 |
| BLR/EVR25-138 | 1 3/8 | 35 | 1.5 | 38 | 5.4 | 138 | 2.8 | 72 | 11.0 | 281 | 1 | 25 | |
| BLR/EVR32-138 | 1 3/8 | 35 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1 | 25 | 16 |
| BLR/EVR32-158 | 1 5/8 | 42 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1.1 | 29 | |
| BLR/EVR40-158 | 1 5/8 | 42 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1.1 | 29 | 25 |
| BLR/EVR40-218 | 2 1/8 | 54 | 1.9 | 47 | 4.4 | 111 | 2.1 | 53 | 11.0 | 281 | 1.3 | 34 | |
