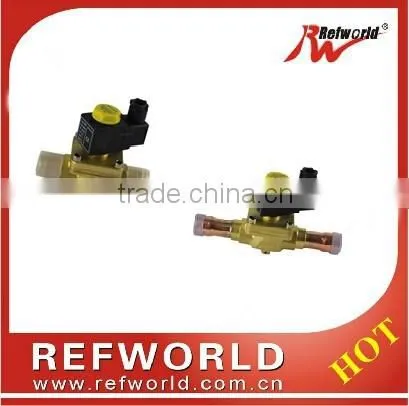

BLR/MSV Good Membrane Material Hot Water Solenoid Valves

BLR/MSV Good Membrane Material Hot Water Solenoid Valves thumbnail-1
BLR/MSV Good Membrane Material Hot Water Solenoid Valves photo-1
US$ 1 - 5 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
refworld
Model Number:
BLR/MSV-1020/2
Contact Supplier Request Quote Chat Now
Ningbo Refworld Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name refworld
Model Number BLR/MSV-1020/2
Type Other, valve
Application Refrigeration Parts
Certification CE

BLR/MSV Good membrane material hot water solenoid valves



General Description
BLR Membrance Solenoid Valve is an antomatic control parts uesd in refrigeration system to control the refrigerant to pass or not pass,the valve is widely uesd on compewssor group,central air-conditioning,cold-storage equipment and bus air-conditioning system.



Feature
Suitable for all fluorinated refrigerants.
Wide choice of coils for A.C. and D.C.
Complete range of solenoid valves for refrigeration,freezing and air conditioning plant.
Extended ends for soldering make installation easy.It is not necessary to dismantle the valve when soldering in.



Technical Data
Refrigerant    CFC,HCFC,HFC
Media Temperature    -35 to +105℃
Service Life    100000 cycles
Max.Opening Pressure    2.5 MPa
Min.Opening Pressure   0.05 MPa
Working Pressure    3.0 MPa





 BLR/MSV Good membrane material hot water solenoid valvesBLR/MSV Good membrane material hot water solenoid valves

Technical Data
Model   Connection H1 H2 L1 Q   KV Factor         (m³/h)
Inch mm Inch mm Inch mm Inch mm
BLR/MSV-1020/2 1/4"SAE 3.0  75  2.5  62.5  2.3  58  - - 0.175
BLR/MSV-1020/3 3/8"SAE 3.0  75  2.5  62.5  2.6  65  - - 0.23
BLR/MSV-1028/2 1/4"ODF 3.0  75  2.5  32.5  4.9  125  - - 0.15
BLR/MSV-1028/3 3/8"ODF 3.0  75  2.5  62.5  4.9  125  - - 0.23
BLR/MSV-1064/3 3/8"SAE 3.2  82  2.7  69.5  2.6  68  - - 0.8
BLR/MSV-1064/4 1/2"SAE 3.2  82  2.7  69.5  2.8  72  - - 0.8
BLR/MSV-1068/3 3/8"ODF 3.2  82  2.7  69.5  4.5  111  - - 0.8
BLR/MSV-1068/4 1/2"ODF 3.2  82  2.7  69.5  5.0  127  - - 0.8
BLR/MSV-1070/4 1/2"SAE 3.6  91  3.0  75.0  3.9  100  1.8  45  2.2
BLR/MSV-1070/5 5/8"SAE 3.6  91  3.0  75.0  4.2  106  1.8  45  2.61
BLR/MSV-1078/4 1/2"ODF 3.6  91  3.0  75.0  5.0  127  1.8  45  2.2
BLR/MSV-1078/5 5/8"ODF 3.6  91  3.0  75.0  6.9  173  1.8  45  2.61
BLR/MSV-1078/9 1 1/8"ODF 4.5  115  3.8  96.0  9.8  250  3.1  80  10
BLR/MSV-1078/11 1 3/8"ODF 6.8  172  5.4  138.0  10.9  278  2.8  68  16
BLR/MSV-1090/5 5/8"SAE 4.2  106  3.0  78.0  1.7  120  2.2  57  3.8
BLR/MSV-1090/6 3/4"SAE 4.2  106  3.0  78.0  4.9  124  2.2  57  4.8
BLR/MSV-1079/7 7/8"ODF 3.6  91  3.0  75.0  7.5  190  1.8  45  2.61
BLR/MSV-1079/11 1 3/8"ODF 4.5  115  3.8 96.0  11.5  292  3.1  80  10
BLR/MSV-1079/13 1 5/8"ODF 6.8  172  5.4  138.0  10.9  278  2.8  68  16
BLR/MSV-1098/7 7/8"ODF 4.2  106  3.0  78.0  7.1  180  2.2  57  5.7
BLR/MSV-1099/9 1 1/8"ODF 4.2  106  3.0  78.0  8.5  216  2.2  57  5.7
BLR/MSV-1099/11 1 3/8"ODF 6.2  157  5.0  127.0  10.9  291  2.8  68  10
