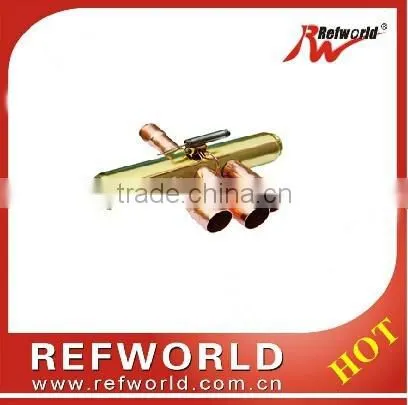

BLR/FRV Series 4 Way hydraulic reversing Valve for Air conditioner
Description/
BLR/FRV Series Four-Way Reversing Valves are specially designed for Heat Pump Systerms, like Commercial and Industrial Air Conditioning System,Swimming Pool System. The 4-way Reversing Valve is the key component to provide Heating and Cooling from the system to the air conditioned space by reversing the flow direction of refrigerant.
It is widely used at room air conditioners, packaged and central air conditioners.
The reversing Valves are designed for Heat Pump Systems with capacity from 3kW to 580kW.
They are suitable for most refrigerants as R407C - R410A - R134A.
Feature
Capacity Range: 3 US Ton to 240 US Ton (Based On R22 Nonical Capacity)
Advantage: Wide Application Range;Low Leakage Risk;Minimum Pressure Drop;High Reliability; Energy Saving;
Application Refrigerant: R22,R407C,R410A,R134A etc.
Fluid Application Temperature: -25℃~120℃
Application Ambient Temperature: -25℃~50℃
Relative Humidity: 95% RH
Service Life: 20000 times
Max Using Pressure: 4.17 Mpa (Pressure Gauge Pressure)
Bellow Test Pressure: 3.0 Mpa (Air)
Temperature Endurance: 120℃
Coil Insulated Resistant: >1000MΩ
Coil Termperature increase :<70K
Coil Max Using Temperature: +130℃
| Model |
R22 Nonical Capcity |
Connection Size | Port Size | Suitable Capactiry Range(kw) |
Internal Leakage (ml/min) |
Reversing Pressure(Mpa) | |||||||||||
| CES Outlet | D Inlet | R22 | R410A | R407C | R134A | ||||||||||||
| (us ton) | Inch | mm | Inch | mm | mm | Min | Max | Min | Max | Min | Max | Min | Max | Max | Min | Max | |
| BLR/FRV-005C | 6 | 7/8" | 22.3 | 1/2" | 12.7 | 16 | 3.5 | 19.7 | 4.6 | 23.9 | 3.9 | 19 | 3.2 | 14.8 | 4000 | 0.5 | 3.1 |
| BLR/FRV-005K | 3/4" | 19.05 | 1/2" | 12.7 | 3.5 | 19.7 | 4.6 | 24 | 3.9 | 19 | 3.2 | 14.8 | 4000 | 0.5 | 3.1 | ||
| BLR/FRV-010B | 10 | 7/8" | 22.23 | 5/8" | 15.9 | 10 | 11 | 39.4 | 13 | 41.9 | 11.3 | 33.1 | 9.9 | 29.5 | 6000 | 0.15 | 3.1 |
| BLR/FRV-010C | 7/8" | 22.23 | 3/4" | 19.05 | 10.6 | 39.4 | 13 | 42 | 11 | 33 | 9.9 | 29.5 | 6000 | 0.15 | 3.1 | ||
| BLR/FRV-010E | 1/ 1/8" | 28.58 | 5/8" | 15.88 | 10.6 | 39.4 | 13 | 47.5 | 11.3 | 37.6 | 9.9 | 29.5 | 6000 | 0.15 | 3.1 | ||
| BLR/FRV-010F | 1/ 1/8" | 28.58 | 3/4" | 19.05 | 11 | 39.4 | 13 | 48 | 11 | 38 | 9.9 | 29.5 | 6000 | 0.15 | 3.1 | ||
| BLR/FRV-010S | 1/ 1/8" | 28.58 | 7/8" | 22.23 | 11 | 39.4 | 13 | 47.5 | 11 | 38 | 9.9 | 29.5 | 6000 | 0.15 | 3.1 | ||
| BLR/FRV-015A | 15 | 1/ 3/8" | 34.93 | 1 | 25.4 | 25 | 21.1 | 49.2 | 26.4 | 58.9 | 22.9 | 46.8 | 19 | 36.9 | 15000 | 0.25 | 2.5 |
| BLR/FRV-015B | 1/ 1/8" | 28.58 | 7/8" | 22.23 | 25 | 15.8 | 52.8 | 15.8 | 61.6 | 15.8 | 54.5 | 12.3 | 40.8 | 6000 | 0.25 | 2.5 | |
