Automatic Machines for Metal Bucket

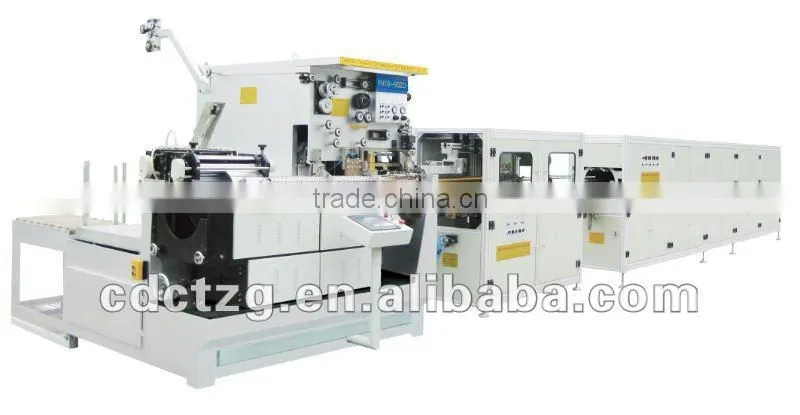

Automatic Machines for Metal Bucket photo-1
US$ 50,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Cans
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other, Machinery & Hardware
Packaging Type Cans
Packaging Material Metal
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 45kw
Place of Origin Sichuan, China
Brand Name Changtai
Model Number FH18-90ZD
Dimension(L*W*H) 2300*1800*2000MM
Weight 2500KG
Certification Exclusive Patented
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Automatic machines for metal bucket
3. Rolling and welding
4. High production capacity
5. Tin can making machine

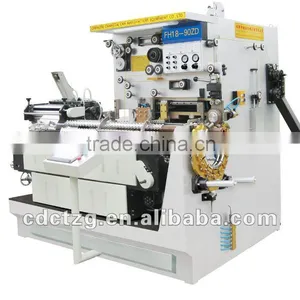

Automatic welding machine/can body welding machine



1.Main technical data

Mode  FH18-90ZD
Linear rate of welding  6-21m/min
Production capability  15~38Cans/min
Applicable can diameter       Φ220~Φ300mm
Applicable can height  250~450mm
Applicable material   Tinplate steel-based
Applicable material thickness 0.25~0.42mm
Applicable copper wire diameter Φ 1.5mm Φ 1.7mm
Cooling water Temperature 12~18°CPressure:0.4-0.5Mpa Discharge 10L/min
Power 380V±5% 50HZ
Total power   63KVA
Packed Dimension 2300x1800x2000mm
Packed Weight  2500Kg

2.Latest picture

***********************************************



Automatic machines for metal bucket

**********************************************************

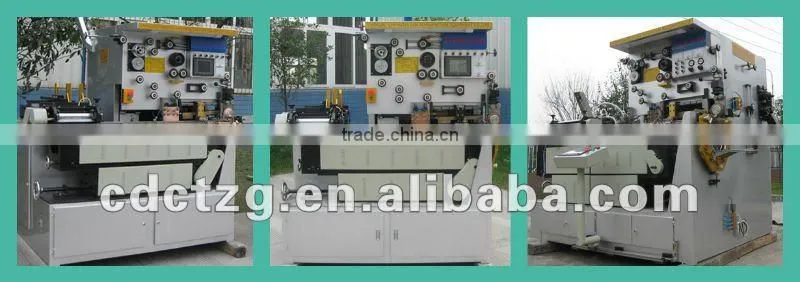

Different modes of automatic welding machine



Automatic machines for metal bucket

************************************accessories******************************

Automatic machines for metal bucket

3.Our major component suppliers

1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

2, Low voltage apparatus are produced by SCHNEIDER.

3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

4,OMRON is our sensor supplier.

5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.



 4.Can making technology  process

Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling



Automatic machines for metal bucket

5.Applicable types of  cans

food cans, beverage cans, chemical cans , paint pot and square bucket etc.

Automatic machines for metal bucket
