Specifications
1.High quality2.Eexcellent performance
3.Applicabel can dia:220~300mm
4.Can body welding machine
5.High efficiency

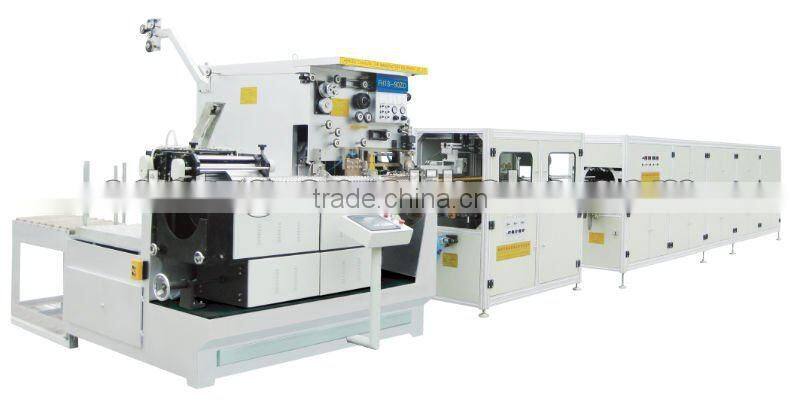

Automatic paint bucket/food tin can body welding machine/seam welder machine
1.Main technical data
Model |

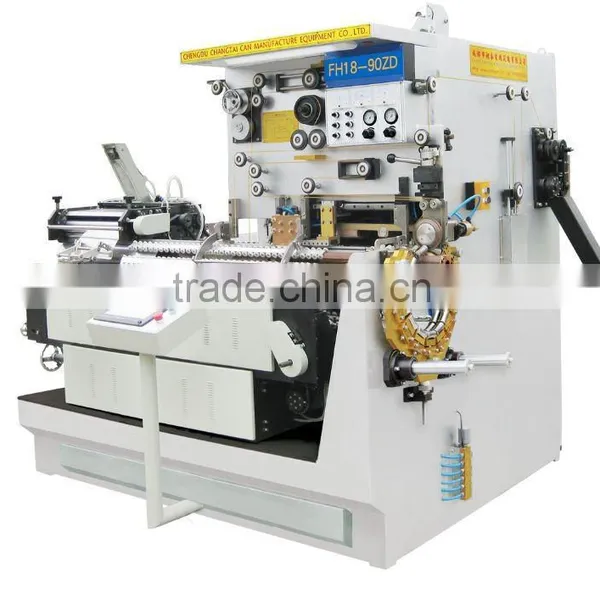

FH18-90ZD |
Linear rate of welding |
6-36m/min |
Production capacity |
20~45cans/min |
Applicable can diameter |
220~300mm |
Applicable can height |
250~280mm |
Applicable material |
Tinplate T2.5~DR8 |
Material thickness |
0.18~0.32mm |
Seam welding landing |
0.4mm |
Seam point distance |
0.5~0.8mm |
Copper wire diameter |
1.38mm |
Cooling water |
Temperature 12~18°C |
Pressure:0.5Mpa | |
Discharge 10L/min | |
Air consumption |
Pressure 0.7Mpa |
Discharge 600L/min | |
Power |
380V±5% 50Hz |
Total power |
18KVA |
Dimension |
2100x1500x1900mm |
Weight |
2000kg |
********* ******
************************************************accessories**********************************************
2.Our major component suppliers
1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2, Low voltage apparatus are produced by SCHNEIDER.
3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4,OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
3.Technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
4.Applicable types of products
aerosol cans, food cans, beverage cans, chemical cans , paint pot and square bucket.
