Home > Manufacturing & Processing Machinery > Commodity Making Machine > Brush Making Machine > 3- Axis Single-head CNC Tufting Broom Brush Machine VIP-3A1H001 Quality Choice

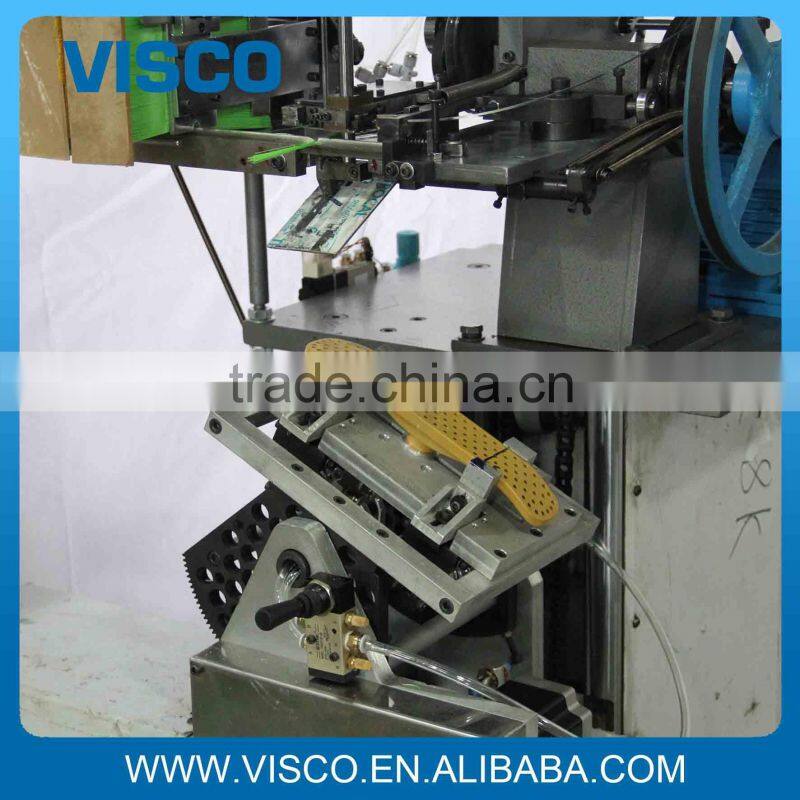

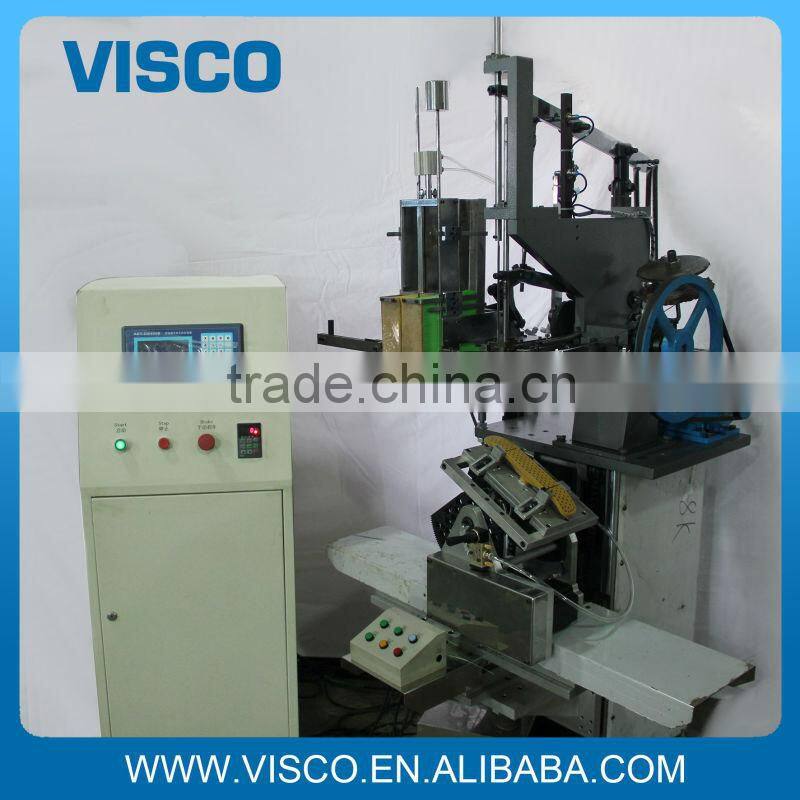

3- Axis Single-head CNC Tufting Broom Brush Machine VIP-3A1H001 Quality Choice

Name: 3- Axis Single-head CNC Tufting Broom Brush Machine VIP-3A1H001 Quality Choice
Brand: visco
SKU: 107419005
Availability: InStock

3- Axis Single-head CNC Tufting Broom Brush Machine VIP-3A1H001 Quality Choice thumbnail-1

3- Axis Single-head CNC Tufting Broom Brush Machine VIP-3A1H001 Quality Choice photo-1

US$ 8,000 - 15,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Application:

making brush & broom, for making brush

Automatic Grade:

Automatic

Contact Supplier Request Quote Chat Now

Zhongshan Visco Commodity Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB XIAOLAN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application making brush & broom, for making brush

Automatic Grade Automatic

Production Capacity 850-900 holes/minute

Place of Origin Guangdong, China

Brand Name visco

Model Number VIP-3A1H001

Voltage 380V,50-60Hz

Power(W) 800W

Dimension(L*W*H) 1.2m*1.2m*1.5m

Weight 300kgs, 300kgs

Certification with

Warranty 1 year, 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

3- Axis Single-head CNC tufting broom brush machine VIP-3A1H001
1 Long-lived
2 Low noise
3 Fast delivery

3- Axis Single-head CNC tufting broom brush machine VIP-3A1H001

Standard Working Area of Working Table	x-axisY-axis=350mm180mm,(Maximum size customized:500mm*500mm)
Standard Working Area of Working Table	The working table is composed of Straight-line guide rail and ball screw with high precision, which is quite stable and durable.
Type of Brush Handle	cylindrical shape, with flat and curved surface.
Material of Brush Filaments	PP, Nylon, Copper wire, stainless steel wire, bristles.
Available Items	3-Axis Single tufting head, is used to make cloth brush, toilet brush and other brush with flat shape and curved shape.
Length of Filaments(Outside Holes)	8mm-45mm
Diameter of Filaments	0.08mm-1.2mm
Diameter of Holes	1.2mm-5mm
Colors of Filaments	Either single color or 2 colors
Maximum Tufting Speed	6 holes per second
Maximum Tufting Speed	6 holes per second
Specifications of Machine Body	1.2m1.2m1.5m
Motor(Power System)	With step-motor by default; also we could use servo-motor instead, if required by customer.
Data Input for Tufting Positions	Teach-Mode or Digits-Type
Touchable Screen	5.7" single color LCD screen, could be available in various languages, as required by client; touch-switch with good feels, high reliability and long service life, and each switch function on the interface descripted in Chinese & English, which is quite simple and convenient.
Speed Ajusting	Frequency-conversion stepless-adjustable speed
Qty of Programs Saved	It saves totally 2000 programs 100,000holes for making different brushes
Weight	About 300kgs
Programming	Computer Integrated Digital Controll stysterm, exclusively delevoped for tufting with high precision,high stability and high storage, which is quite convenient.
Power Supply	3-phase380V,or single -phase220V,50-60Hz,800W
Replaceable Grippers	FMS type .Operator could make other kinds of brushes, as long as he changes clamps.
Tufting Method	“flat wire” or “staple”
Packing	Wooden case

3- Axis Single-head CNC tufting broom brush machine VIP-3A1H001

3- Axis Single-head CNC tufting machine VIP-3A1H001
